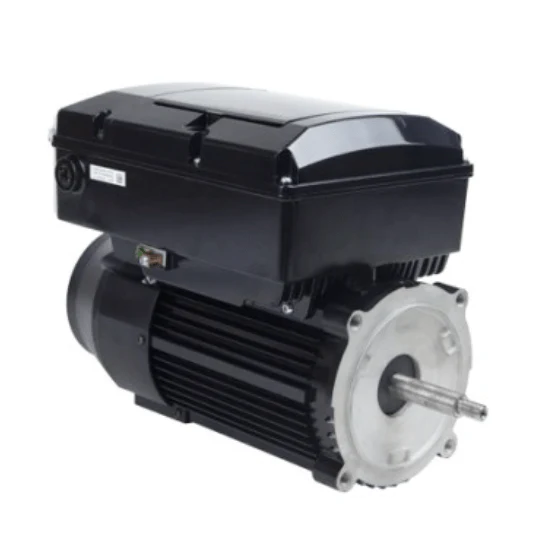

U.S. Motors / Nidec 2.7 HP TEFC Neptune Variable Speed Pump Motor 230V 56J NPTT270

One does not need to replace the entire pool pump to gain all the energy savings associated with variable speed. Upgrade any pool by installing the U.S. MOTORS NPTT270 Neptune Variable Speed TEFC 56J Threaded Motor 2.7THP 230V 50/60Hz. The Neptune line is a totally enclosed finned aluminum product which provides greater environmental protection than open drip-proof motors, which can lead to a longer field life. This professional-grade product has a premium, efficient design that can help reduce utility expenses associated with operating a swimming pool pump by up to 80% when utilizing the preprogrammed settings on the onboard user interface.

• Spec Sheet


Specifications:

• Brand: U.S. MOTORS
• Ambient Temperature: 50 degrees Celsius
• Shipping Dimensions: 20 x 14 x 14.75 inch
• Application: Pool, Spa
• Bearing Type: Sealed Ball
• Color: Black
• Duty Cycle: Continuous
• Weight: 28 pounds
• Frequency Rating (Hz): 50/60
• Horsepower: 2.7 horsepower
• Insulation Class: F
• Length Less Shaft: 10.01 inch
• Material: 300 Stainless Steel
• Motor Enclosure Type: Totally Enclosed Fan Cooled
• Motor Frame Size: 56J
• Motor Thermal Protection: Electronically
• Phase: Single
• RPMs Max: 3450
• RPMs Min: 600
• Service Factor: 1
• Voltage: 230V
• Flange Type: Square
• Nominal Efficiency %: 84
• Warranty: 12 months
• UPC Code: 786382135072
