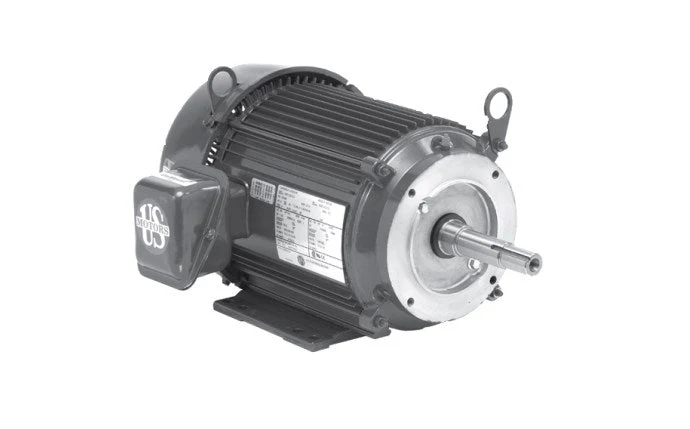

Nidec/U.S. MOTORS EEQKT500 Close Coupled EQ Series® TEFC Replacement Pump Motor 3PH 5HP 208-230/460V

• 5 HP 208 230 460V EQ MOTOR TEFC
• 1.15 SF INGROUND PENTAIR
• Brand: U.S. MOTORS
• Ambient Temperature: 40 degrees Fahrenheit
• Shipping Dimensions: 26 x 16 x 16 inch
• Application: Pool, Spa
• Bearing Type: Ball
• Duty Cycle: Continuous
• Efficiency Group: Premium
• Horsepower: 5 horsepower
• Insulation Class: F
• Motor Enclosure Type: Totally Enclosed Fan Cooled
• Motor Frame Size: 184JMZ
• Phase: Three
• Weight: 70 pounds
• RPMs Max: 3600
• RPMs Min: 3600
• Service Factor: 1.25
• Shaft Material: 300 Stainless Steel
• Voltage: 208V, 230V, 460V
• Commercial, Residential, or Professional: Commercial
• Motor Rating: Full-Rated
• Nominal Efficiency %: 88.5
• UPC Code: 786382123970
