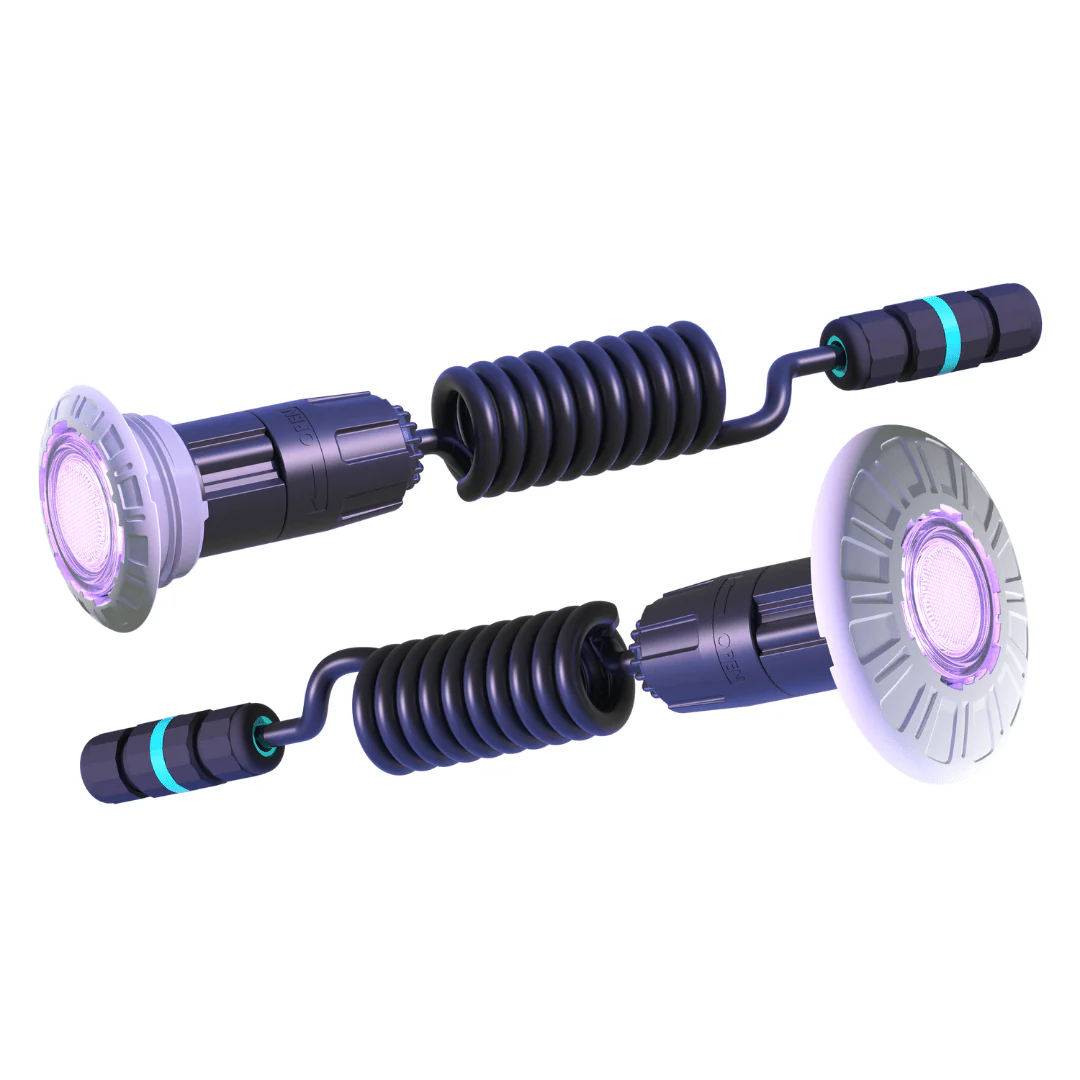

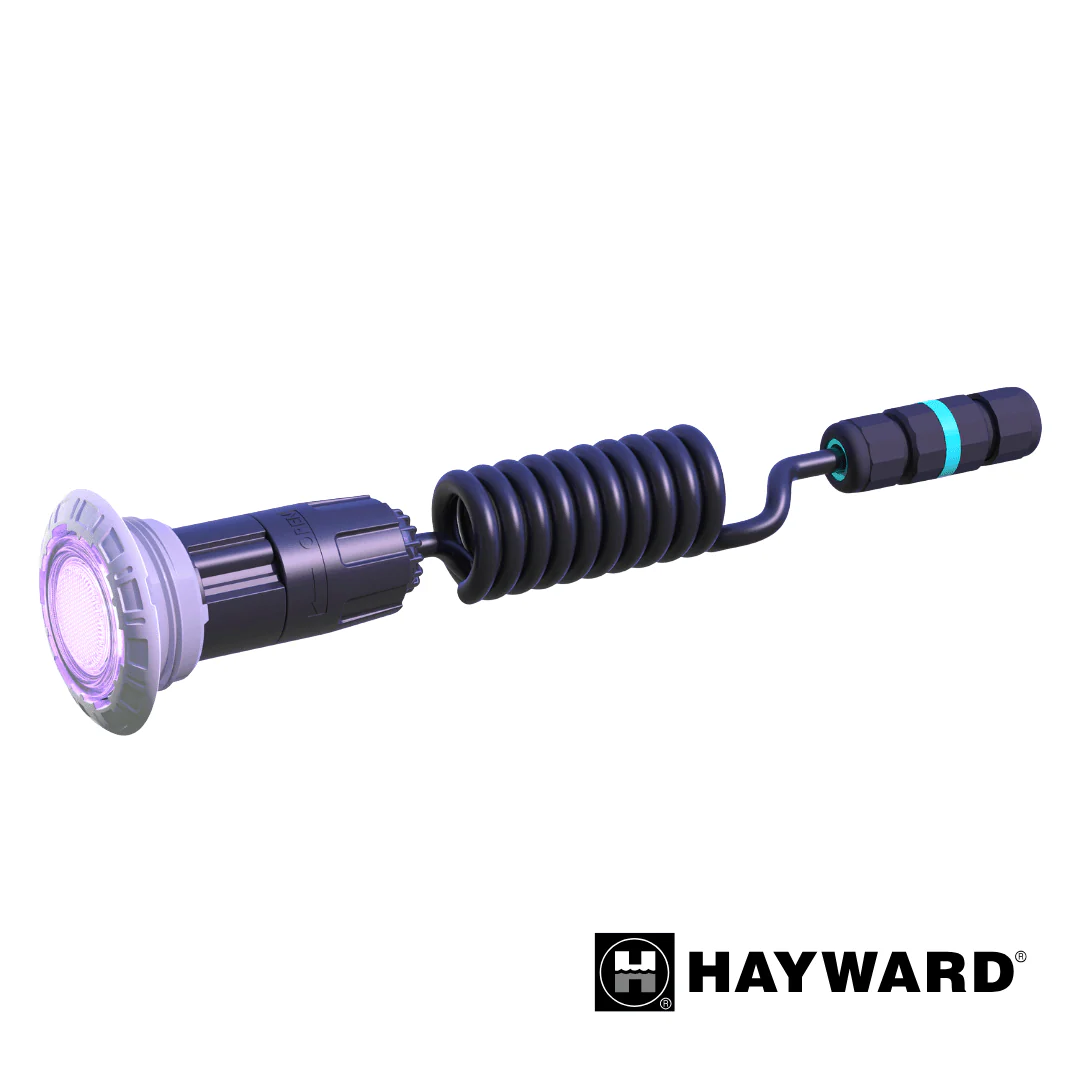

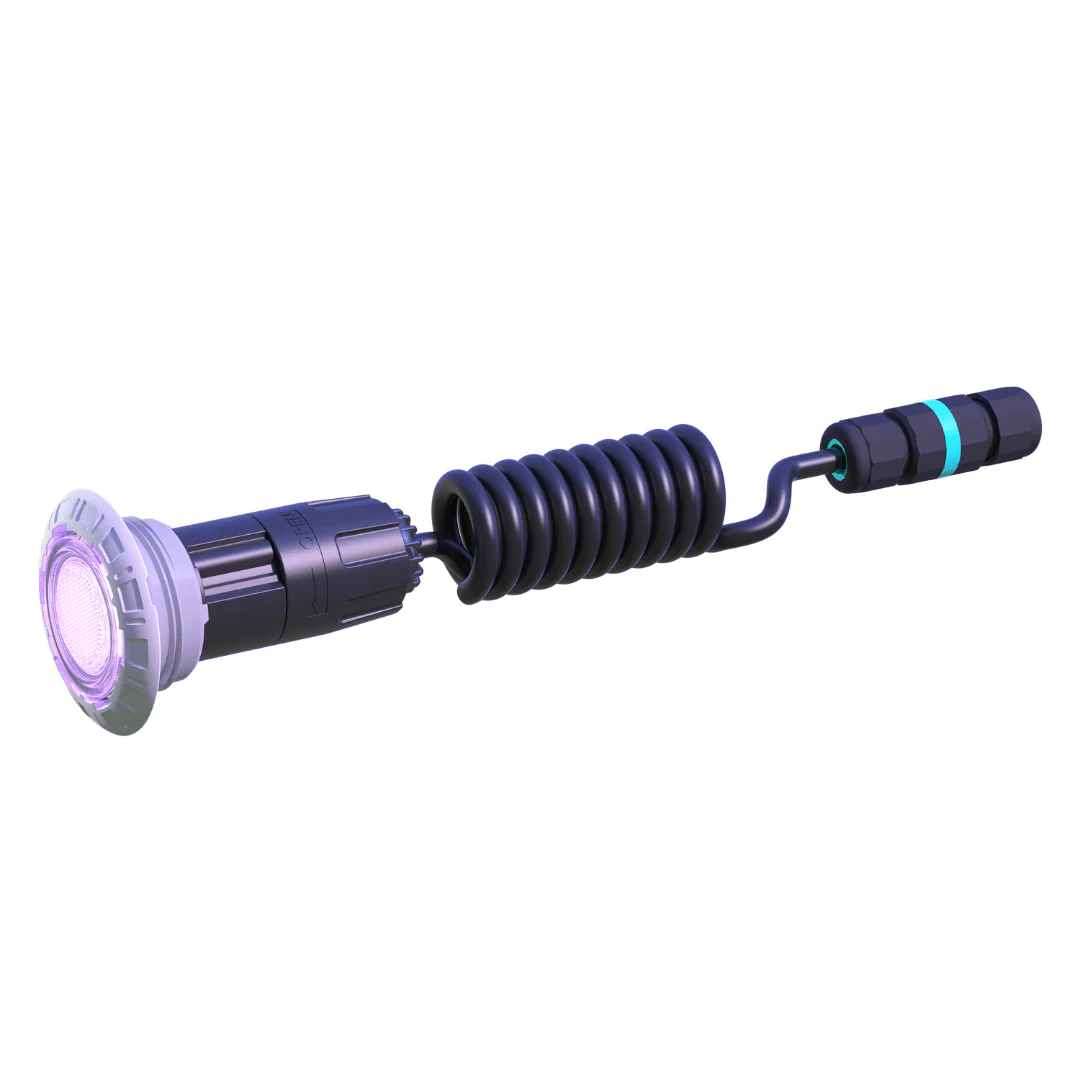

Spa Electrics RETRO T1 Retrofit Light for Hayward ColorLogic 320
Includes Threaded Adapter and Vinyl Spacer for 1.5-Inch LED Lights

• T1 L12 R1 GMP: RETRO T1 Multi Plus DB Light + 2x GREY RIMS + 1.5" Thread + 0.5FT Cable with Joiner

• T1 L12 R1 WMP: RETRO T1 Multi Plus DB Light + 2x WHITE RIMS + 1.5" Thread + 0.5FT Cable with Joiner

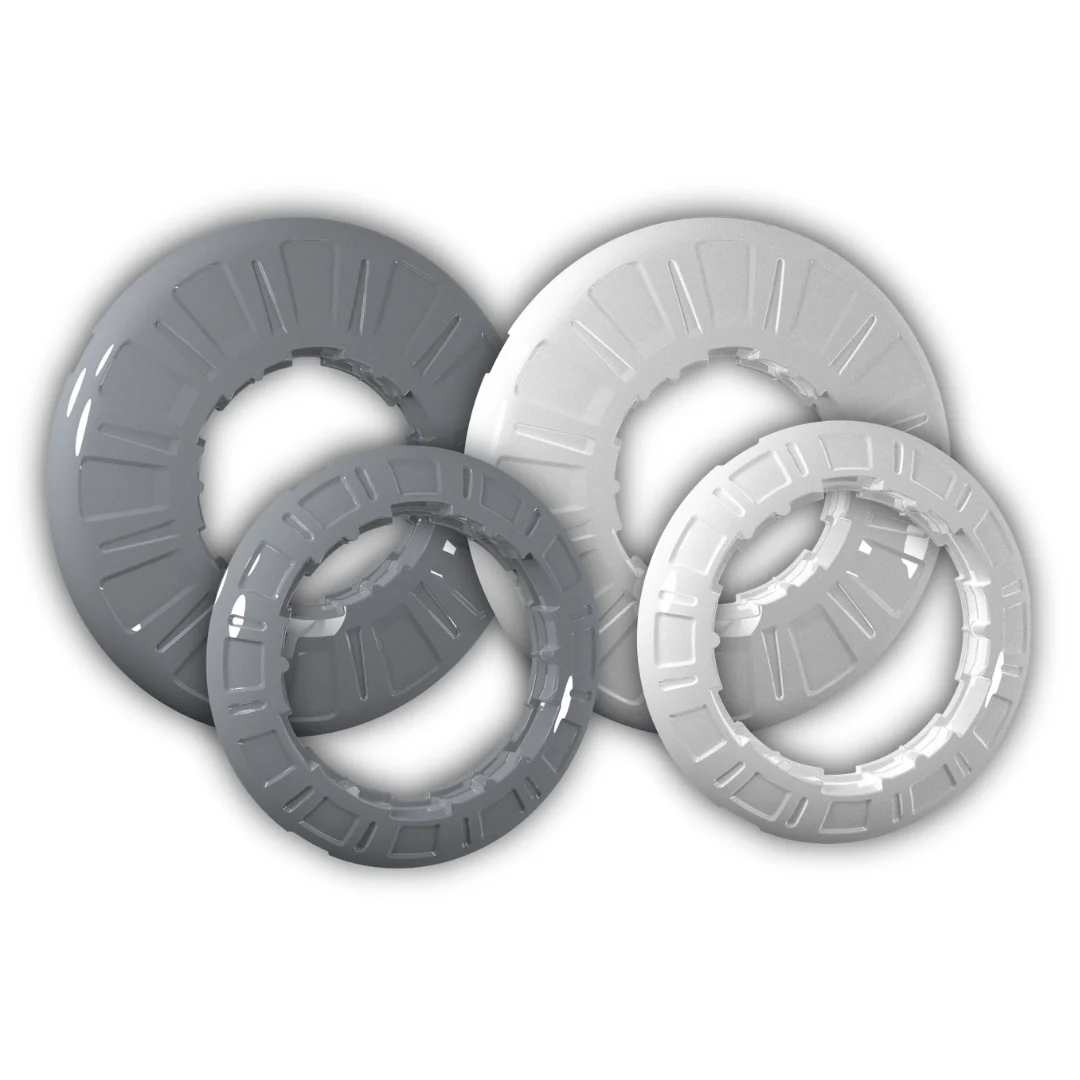

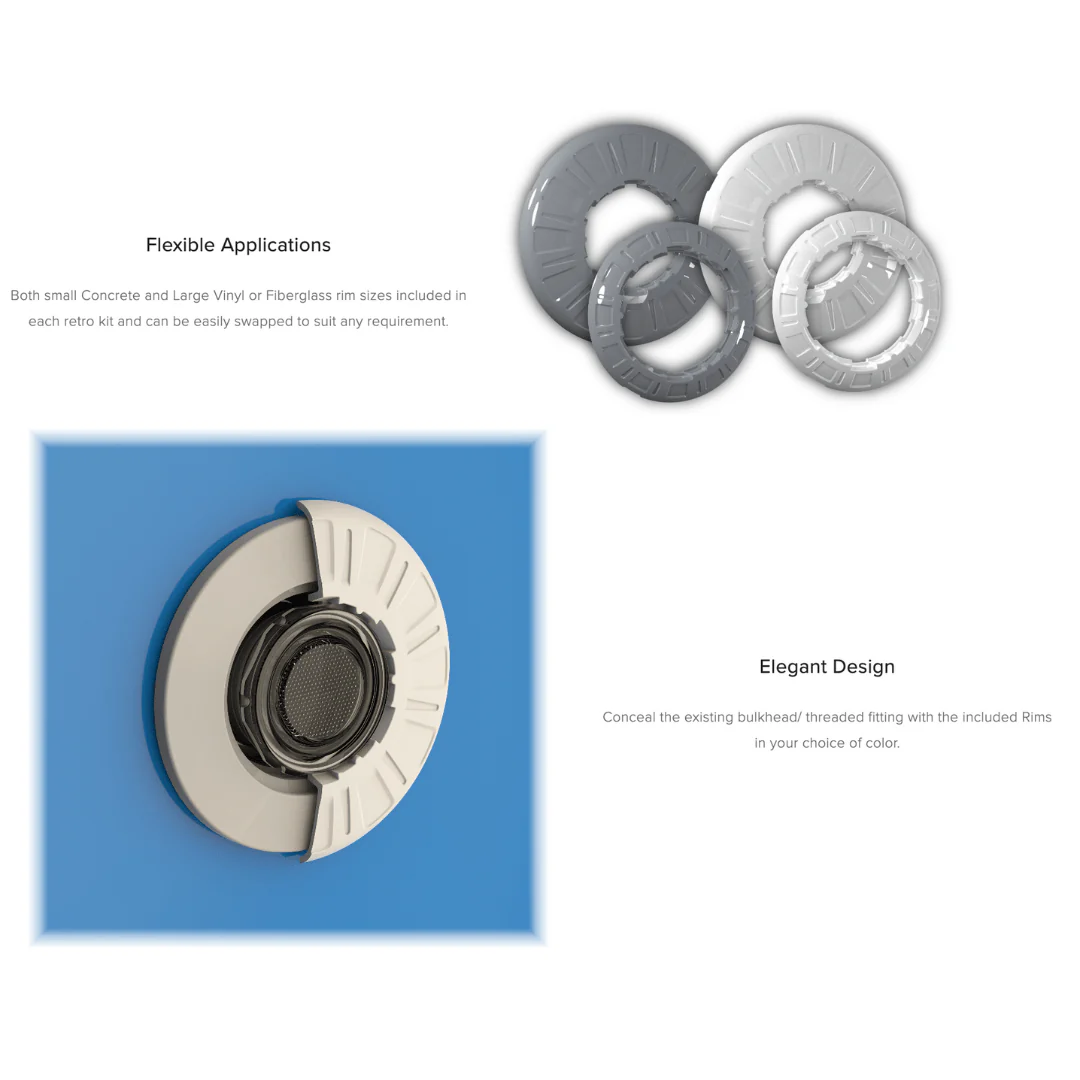

An innovative pencil light retrofit solution that’s easy to install, long-lasting, and serviceable! Each Retro Kit includes both small concrete and large vinyl or fiberglass trim/rim sizes, which can be easily swapped to suit any application. Available in White or Gray.

• T1 Brochure
• Installation Guide

Specifications:

• Light Source: Ceramic Light Engine (LED)
• Available Colors: MULTI PLUS, Wall Switch Operation
• Compatibility:
  • Spa Electrics LiT YARD 2 Outdoor Lighting Controller
  • Hayward Omnilogic
  • Pentair IntelliTouch® / EasyTouch®
  • Zodiac/Jandy RS (REV R - Current)
  • Zodiac TRi®
• IP Rating: IPX8
• Installation Types: Concrete, Fiberglass & Vinyl
• Voltage: 10.5 - 13v AC
• Wattage: 8 Watts
• Ambient Operating Temperature: 41 °F to +104 °F
• Warranty: 3-Year Manufacturer's Warranty
• Pool Controllers: Compatible with major brand pool controllers
• Transformer: Requires a 12V AC UL-listed transformer. Spa Electrics recommends LVX Series Transformers.
