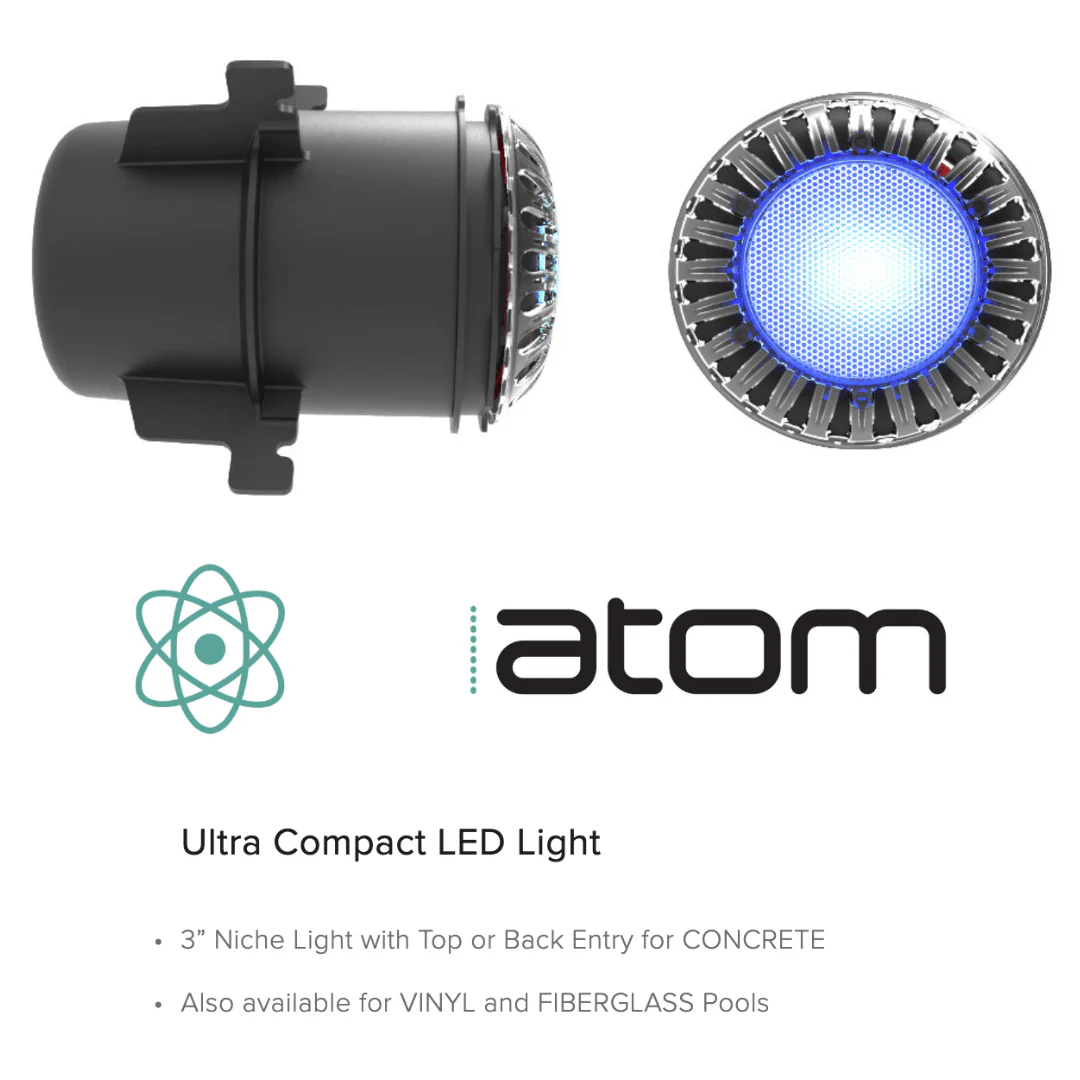

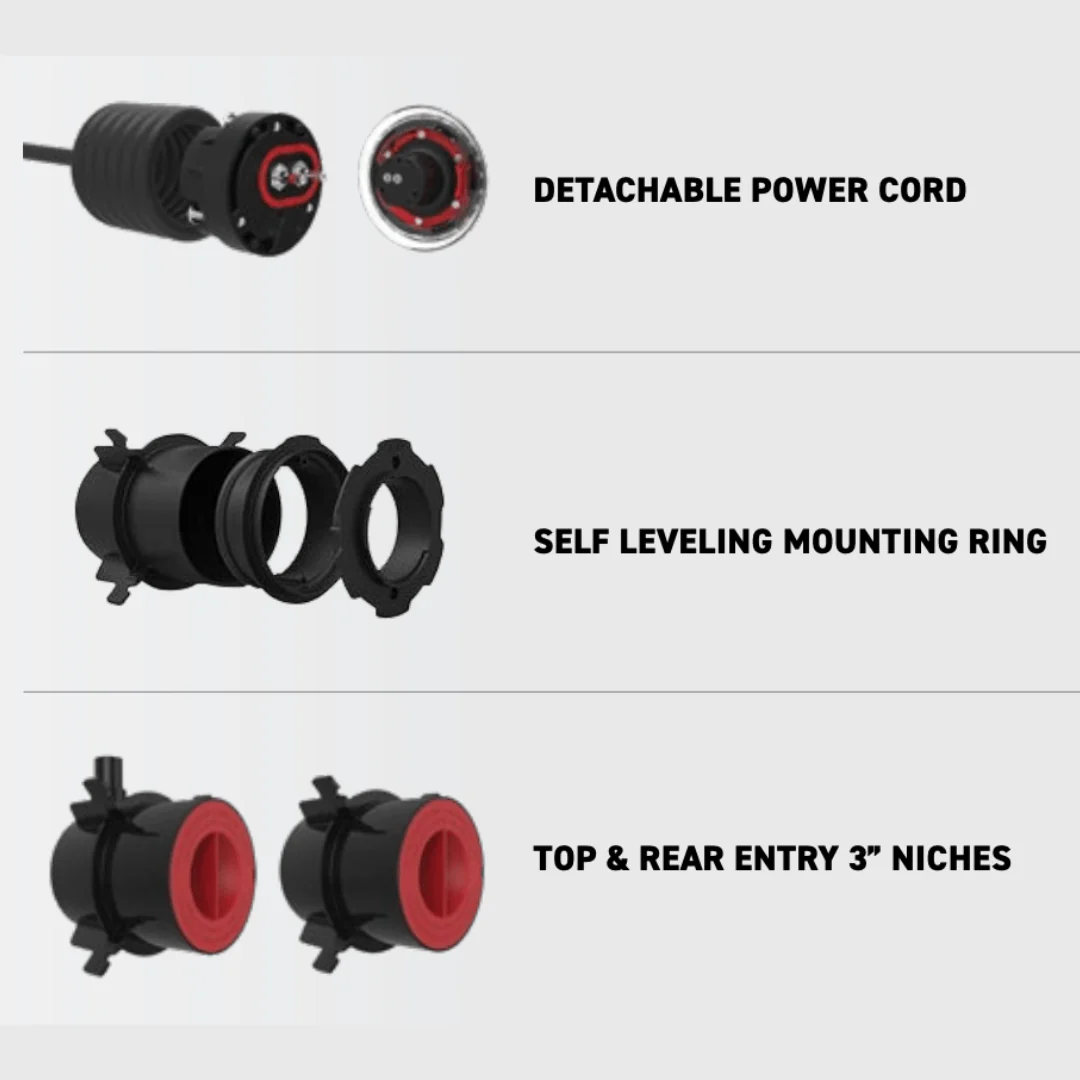

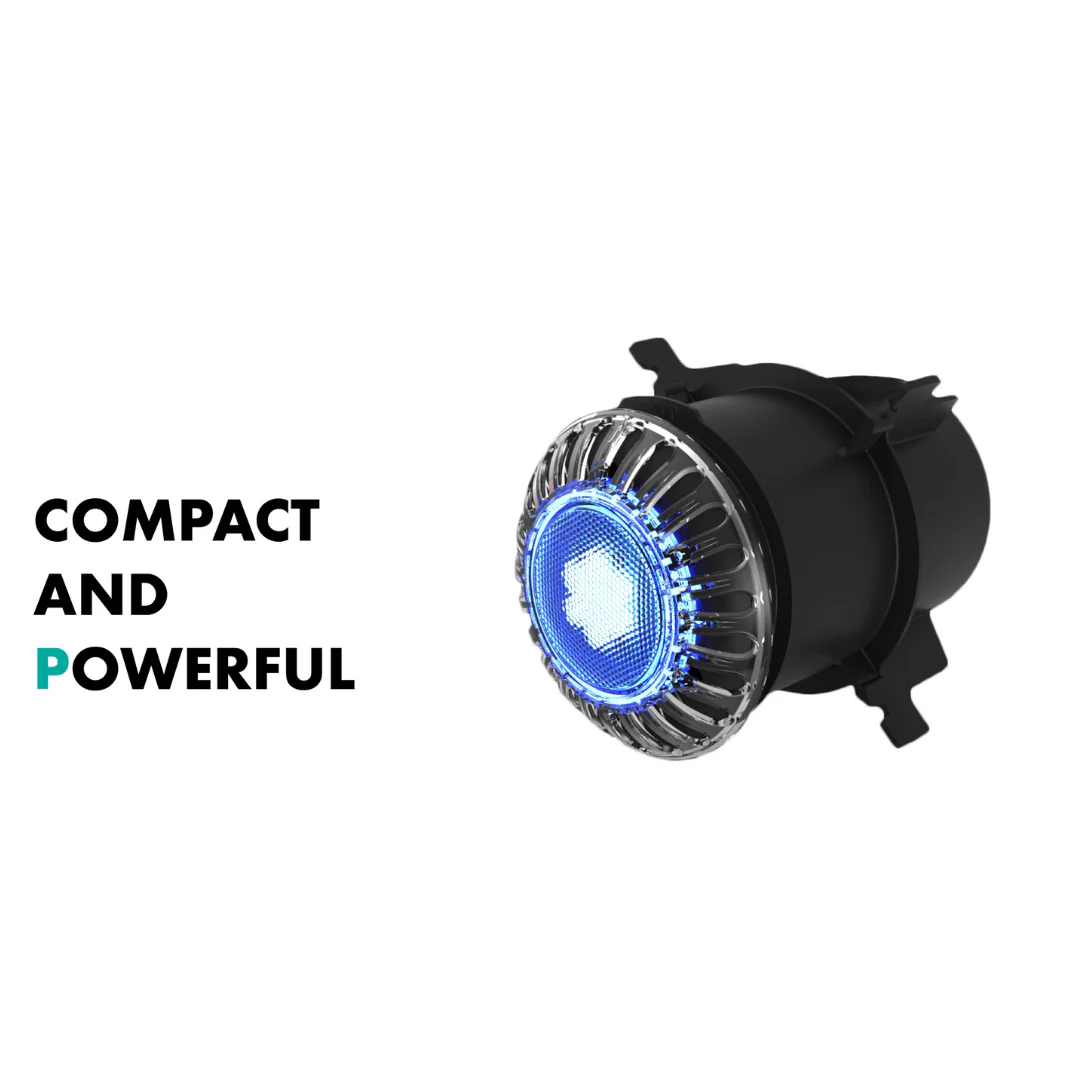

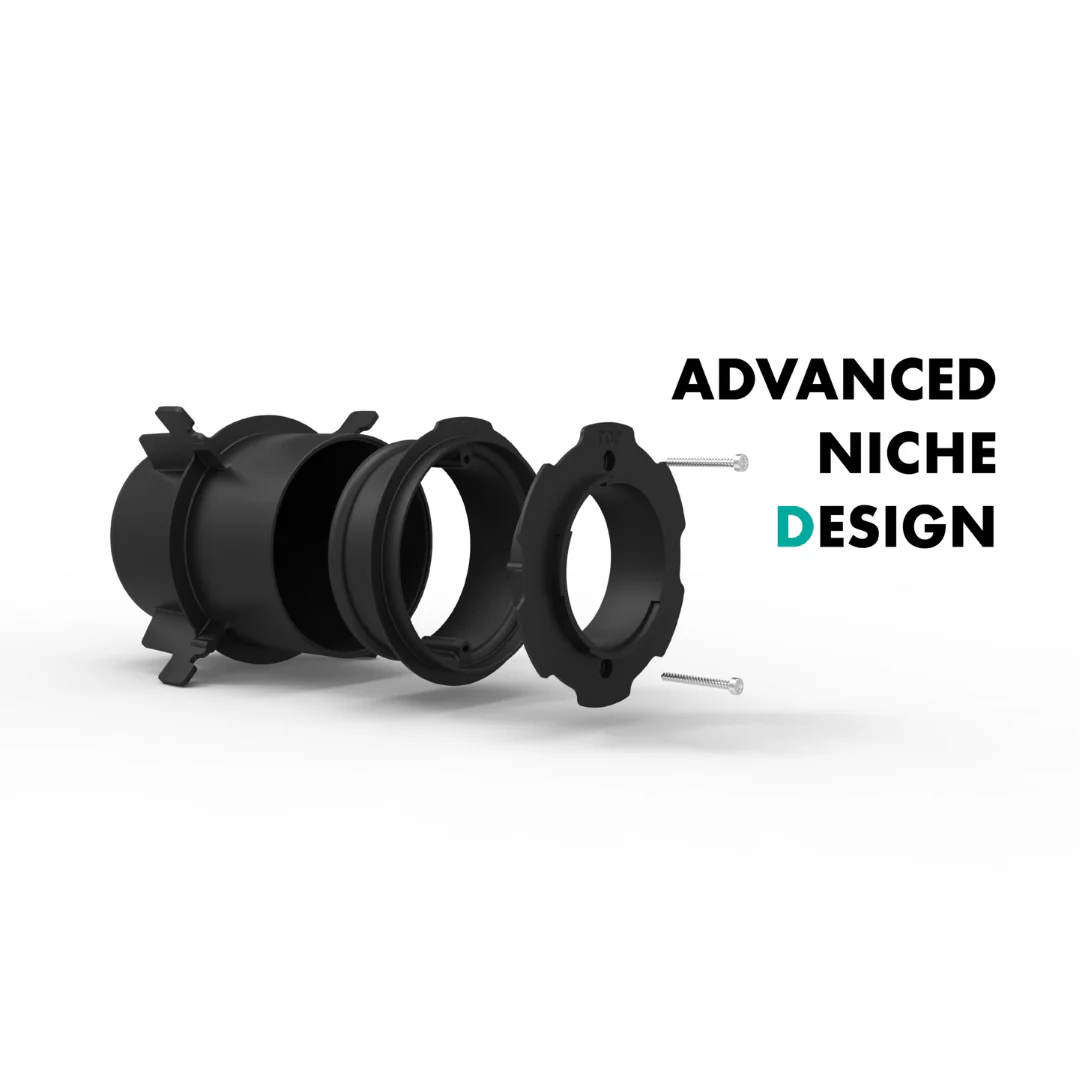

The 3” Atom Series is the latest in Mini Niche-style LED pool lights. With its small form factor & powerful performance, the ATOM Series can be used to illuminate even the largest pools with ease. The Atom Series advanced features ensure for simple installation and hassle-free servicing every time, with its innovative self-leveling mounting ring and detachable power cord.

The Atom Series is designed and manufactured in Australia and backed by Spa Electrics’ industry-leading customer care network and 3-year warranty.

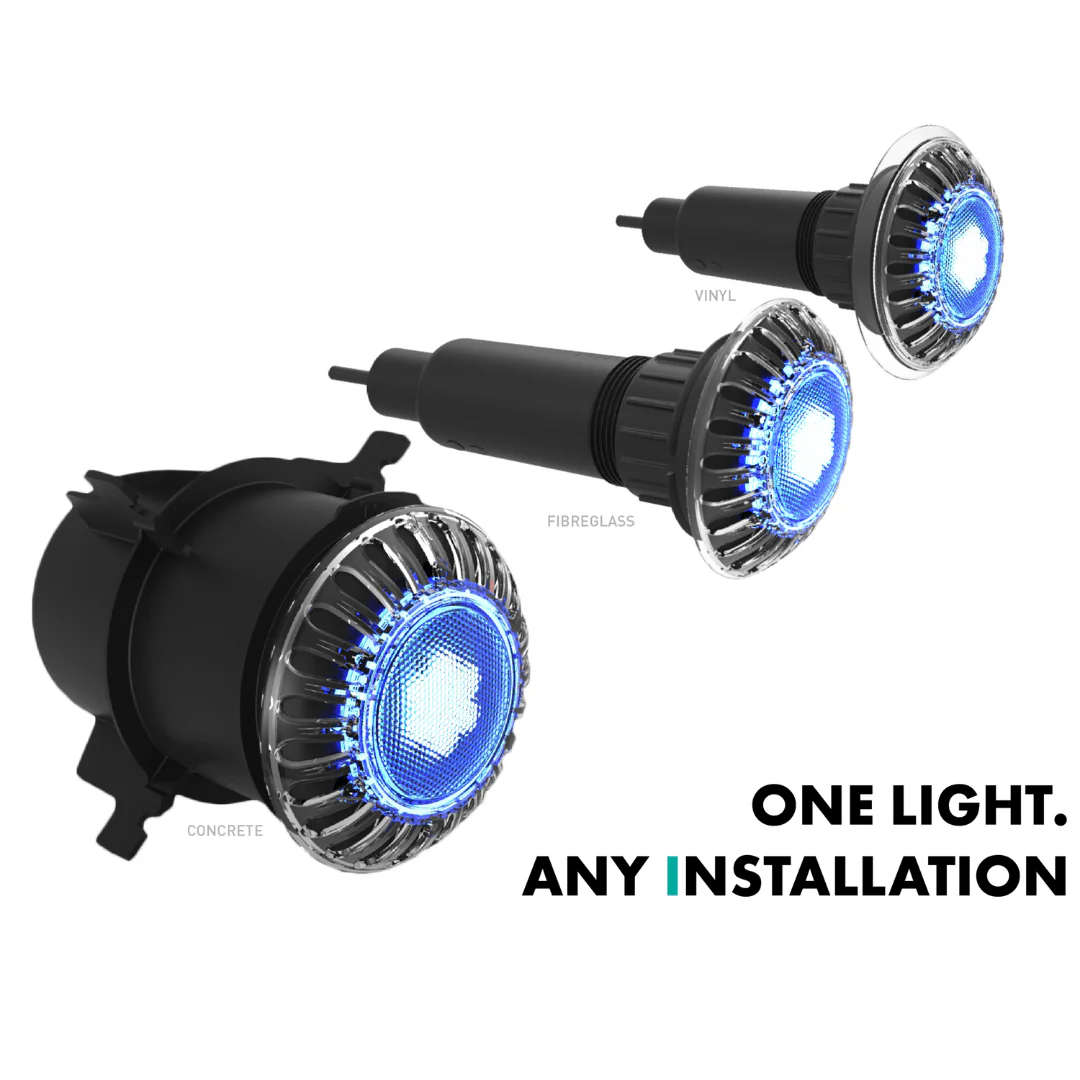

• Applications: Concrete (standard), Fiberglass and Vinyl Pools
• High-intensity Ceramic Light Engine (LED) Technology
• Market-leading brightness and efficiency

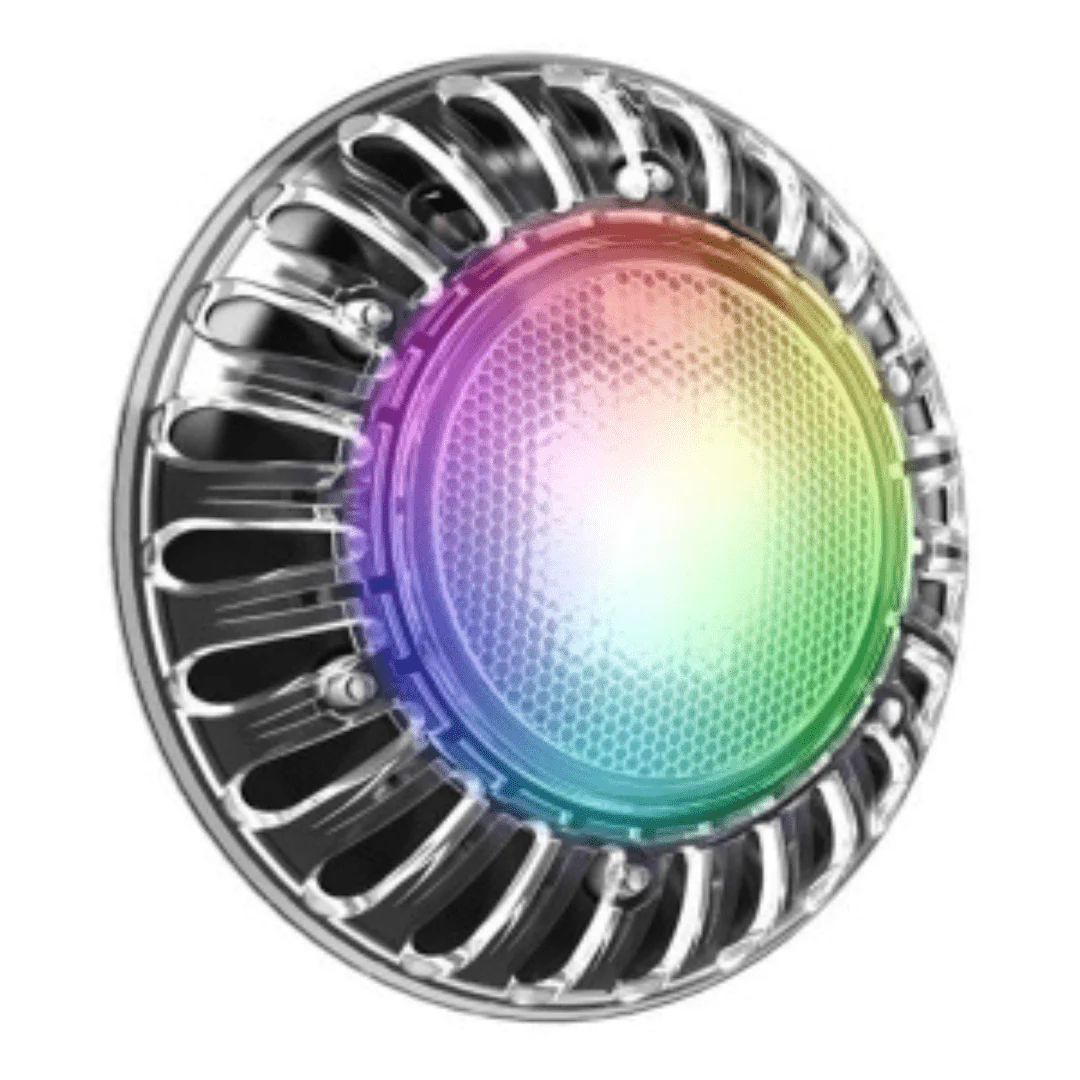

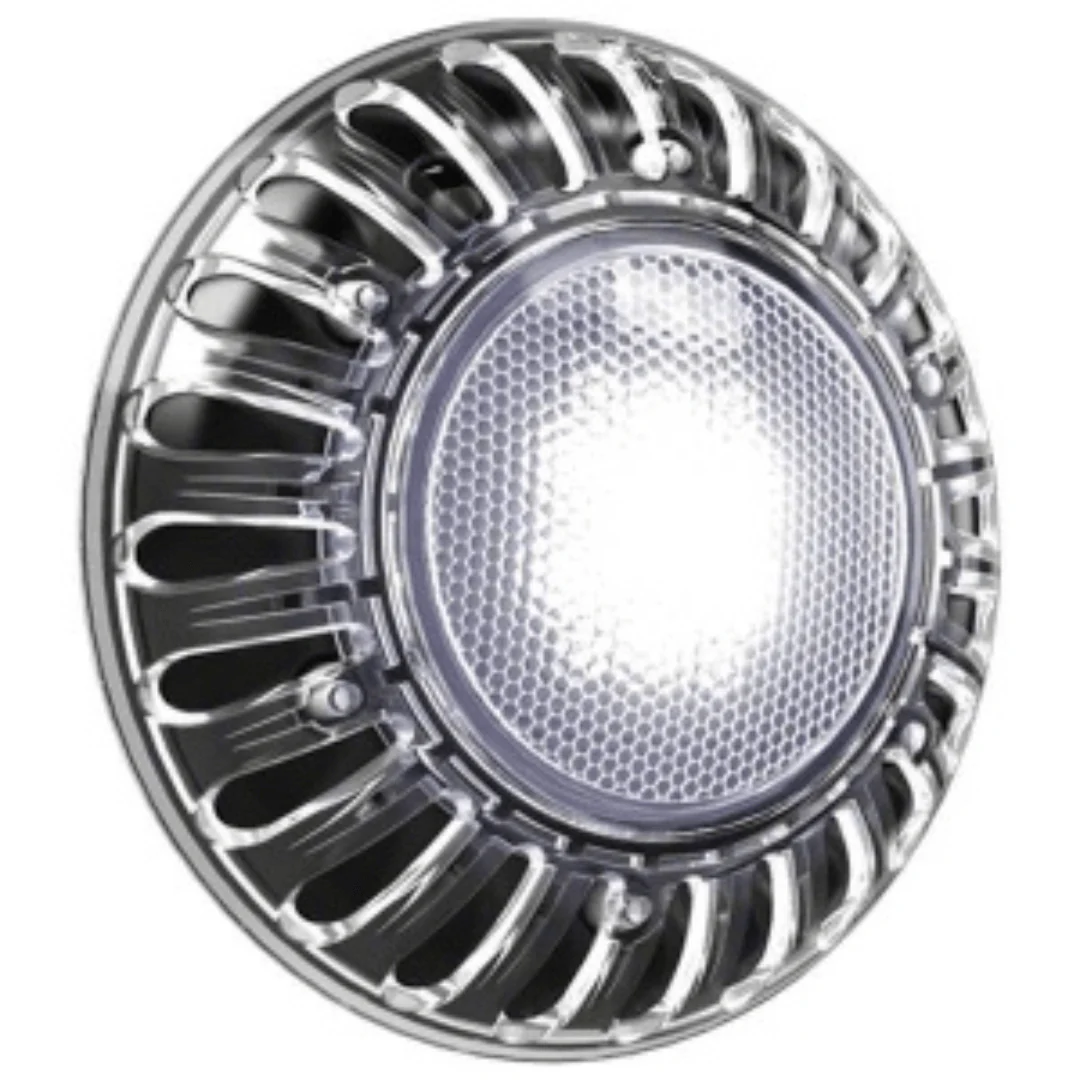

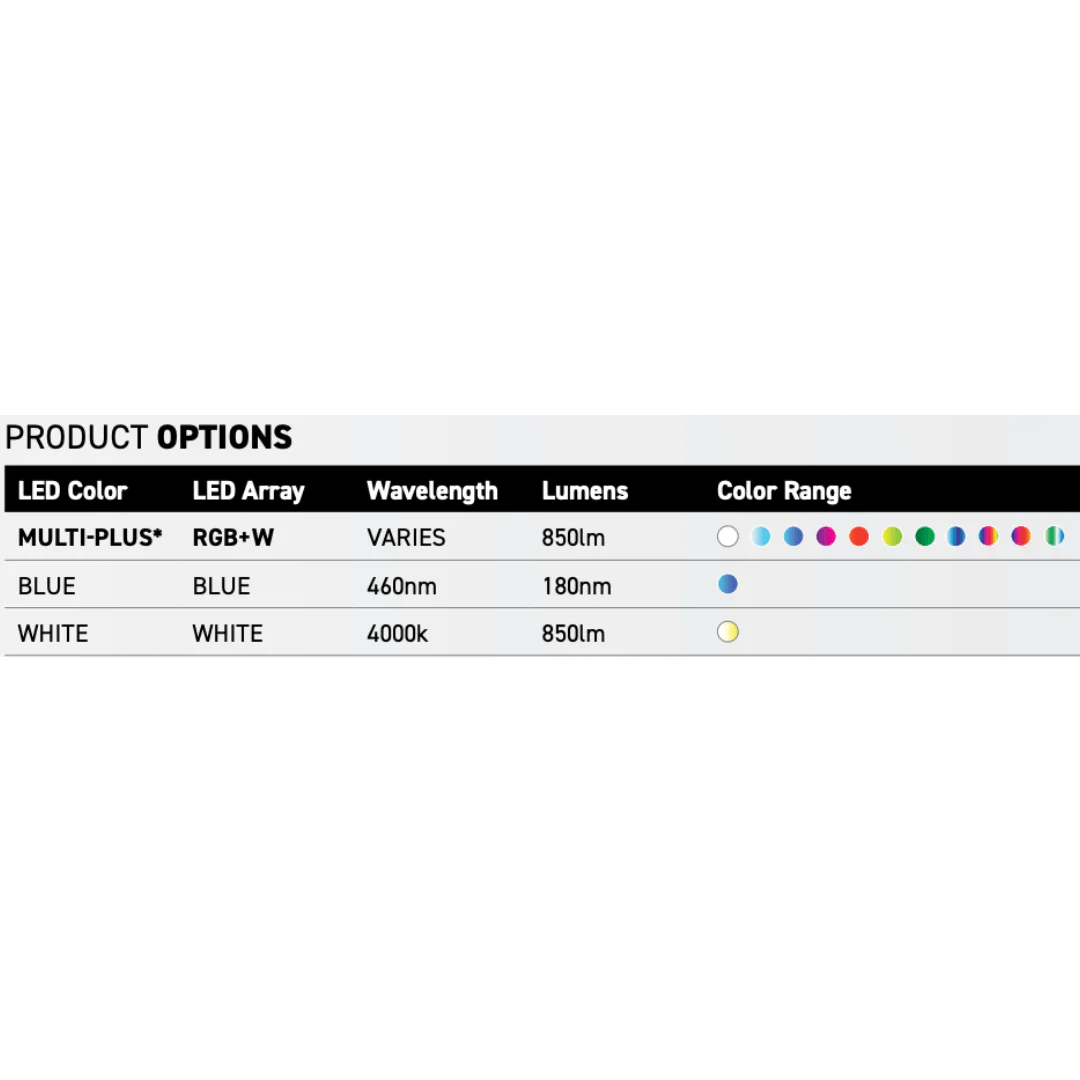

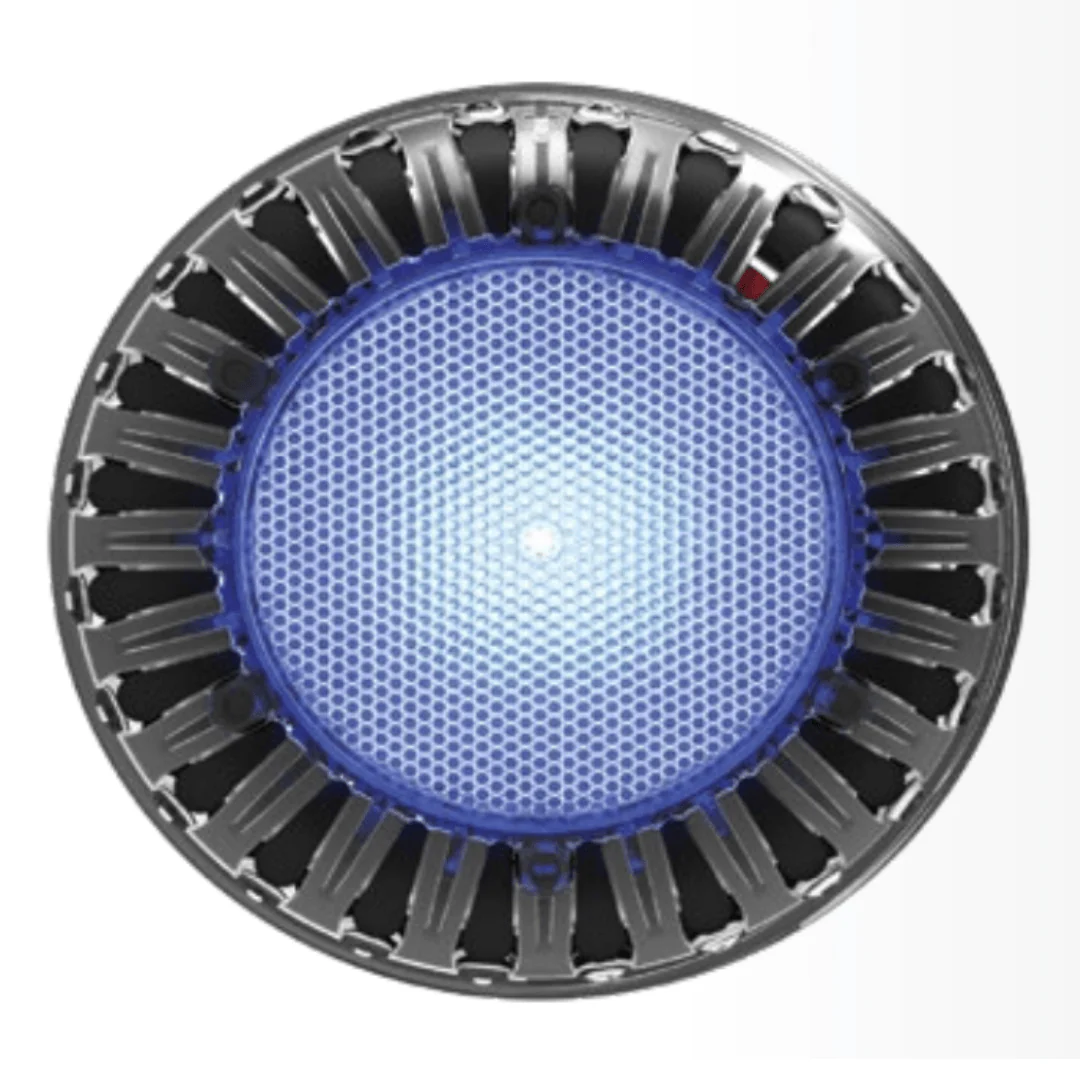

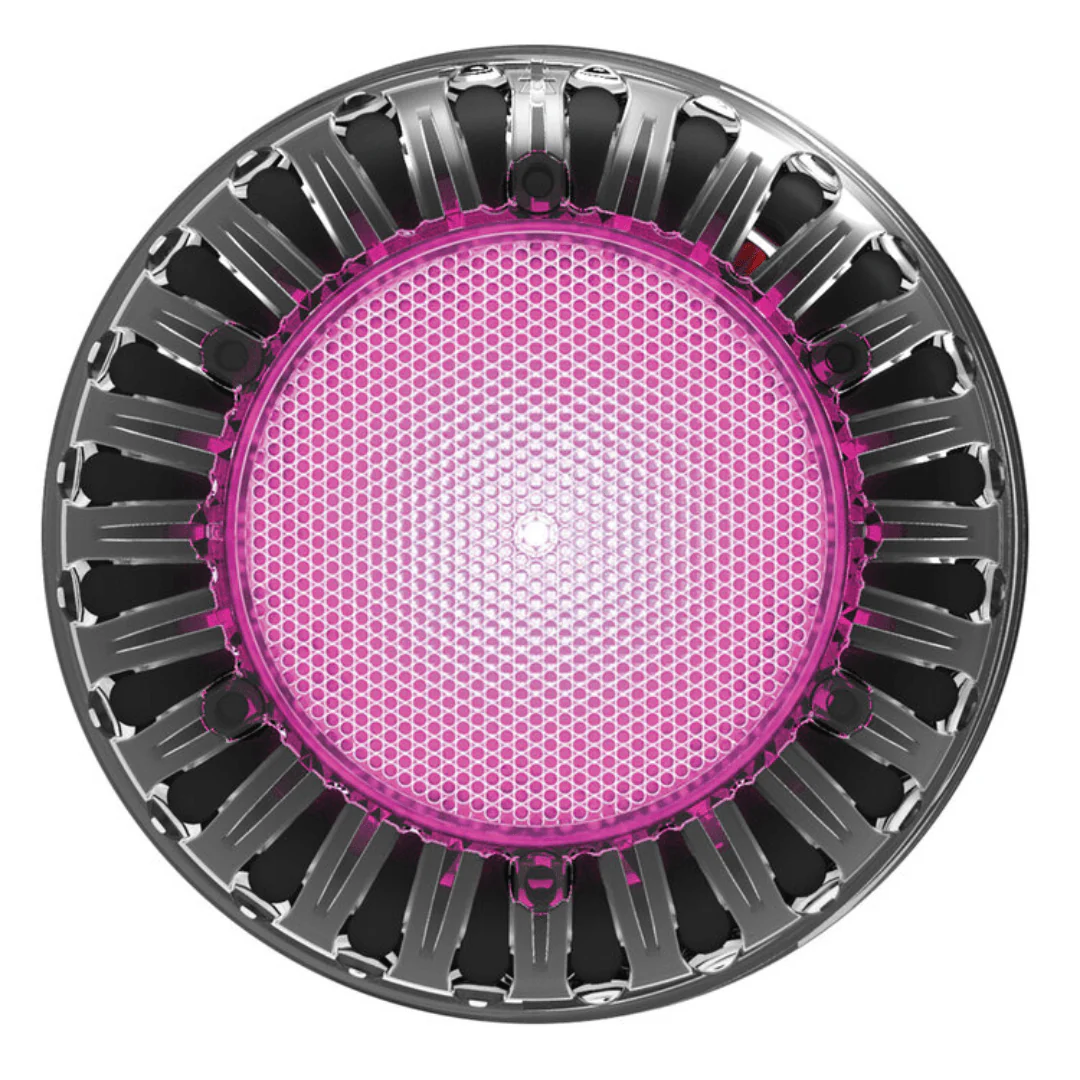

• Available in Blue, White, or MULTI PLUS

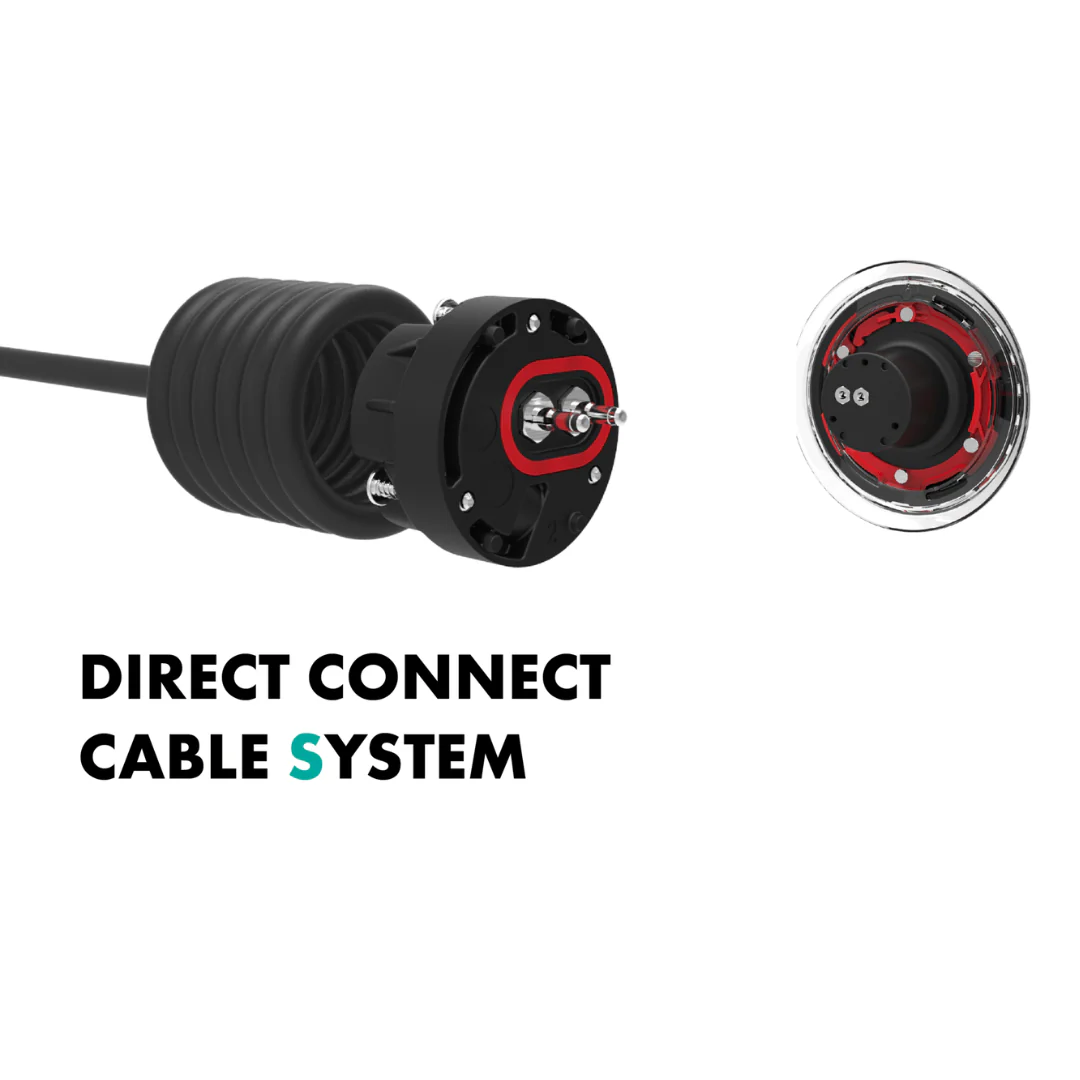

• Direct-Connect Patented detachable electrical connection
• Suitable for concrete, vinyl & fiberglass pools
• IPX8 waterproof rating
• UL Certified
• Designed and manufactured in Australia
• 3 Year Warranty

Specifications:

• Light Source: Ceramic Light Engine (LED)
• Available Colors: MULTI PLUS
• MULTI PLUS Compatibility: Wall Switch Operation, Hayward Omnilogic, Pentair IntelliTouch® / EasyTouch®, Zodiac/Jandy RS (REV R - Current), Zodiac TRi®
• IP Rating: IPX8
• Installation Types: Concrete / Fiberglass / Vinyl
• Voltage: 12v
• Wattage: 12 watts
• Ambient Operating Temperature: 41 °F to +104 °F
• Warranty: 3 Year Manufacturers Warranty
• Transformer Requires: 12V AC UL listed transformer. We recommend LVX Series Transformers
