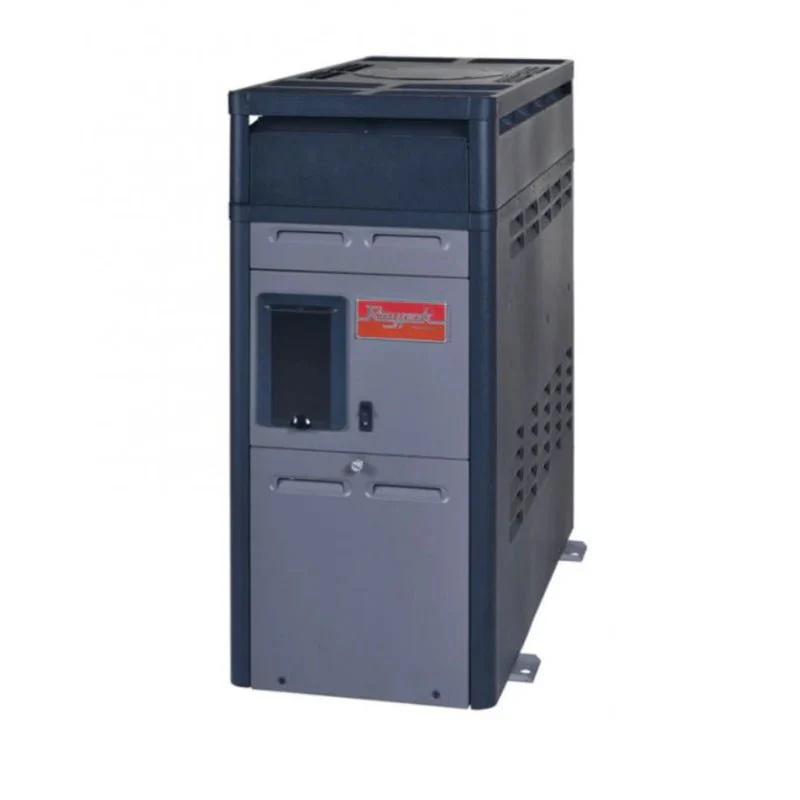

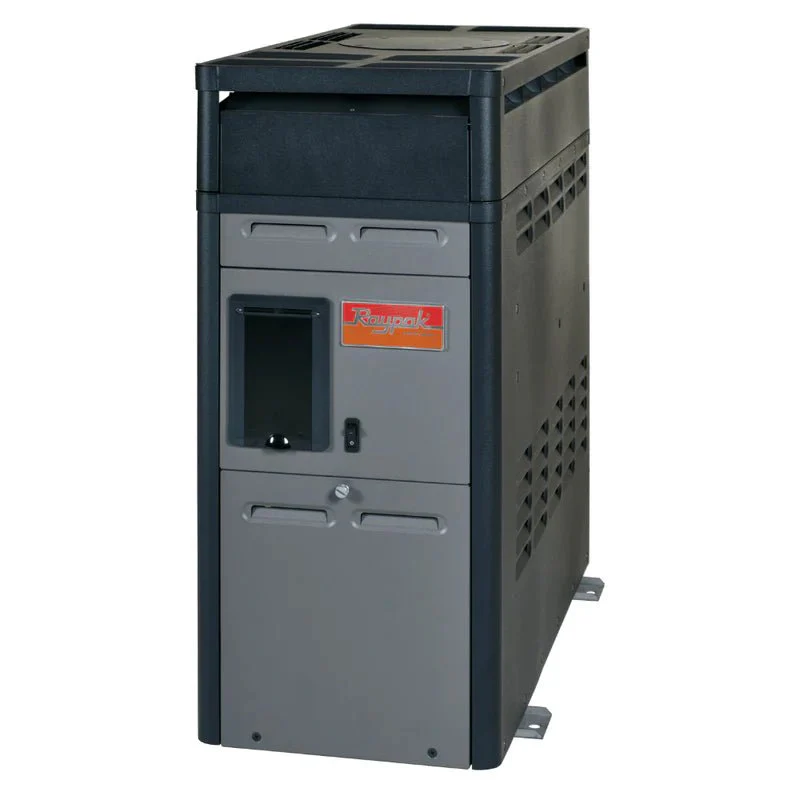

Raypak® 014785 P-R156A-EN-C Model R156A Digital Pool & Spa Heater Natural Gas 150 MBTUH 120/240V, High Elevation 5,000–9,999 ft

Raypak Natural Gas Digital Heater 150K BTU features temperature and flow control of the exchanger to minimize condensation. This heater offers stainless steel burners and a textured powder coat finish. The cabinet and the internals are corrosion and rust-resistant, so it can withstand all seasons. The Natural Gas Digital Heater is fuel-efficient and exceeds all federal and state standards.

Support Documents:

• Brochure
• Install Manual
• Warranty

Specifications:

• Brand: Raypak
• Amperage: 4 amperage
• Shipping Dimensions: 32 x 16 x 30 inch
• Application: Above-Ground, Pool, Spa
• BTU Input: 105 British thermal unit
• Cabinet Depth: 156 inch
• Cabinet Height: 27.5 inch
• Cabinet Width: 13.89 inch
• Color: Gray
• Commercial, Residential, or Professional: Commercial, Residential
• Weight: 100 pounds
• Flow Rate Max: 70 gal/min
• Flow Rate Min: 20 gal/min
• Fuel Type: Natural Gas
• Gas Connection: 0.5 inch
• Gas Connection FIT: NPT
• Heater Color: Gray
• Phase: Single
• Voltage: 120V, 240V
• Warranty: 2 years
• Water Connection 1: 2 inch
• Electrical Input: 120 volt
• Water Connection 1 FIT: NPT
• UPC Code: 840891045762
