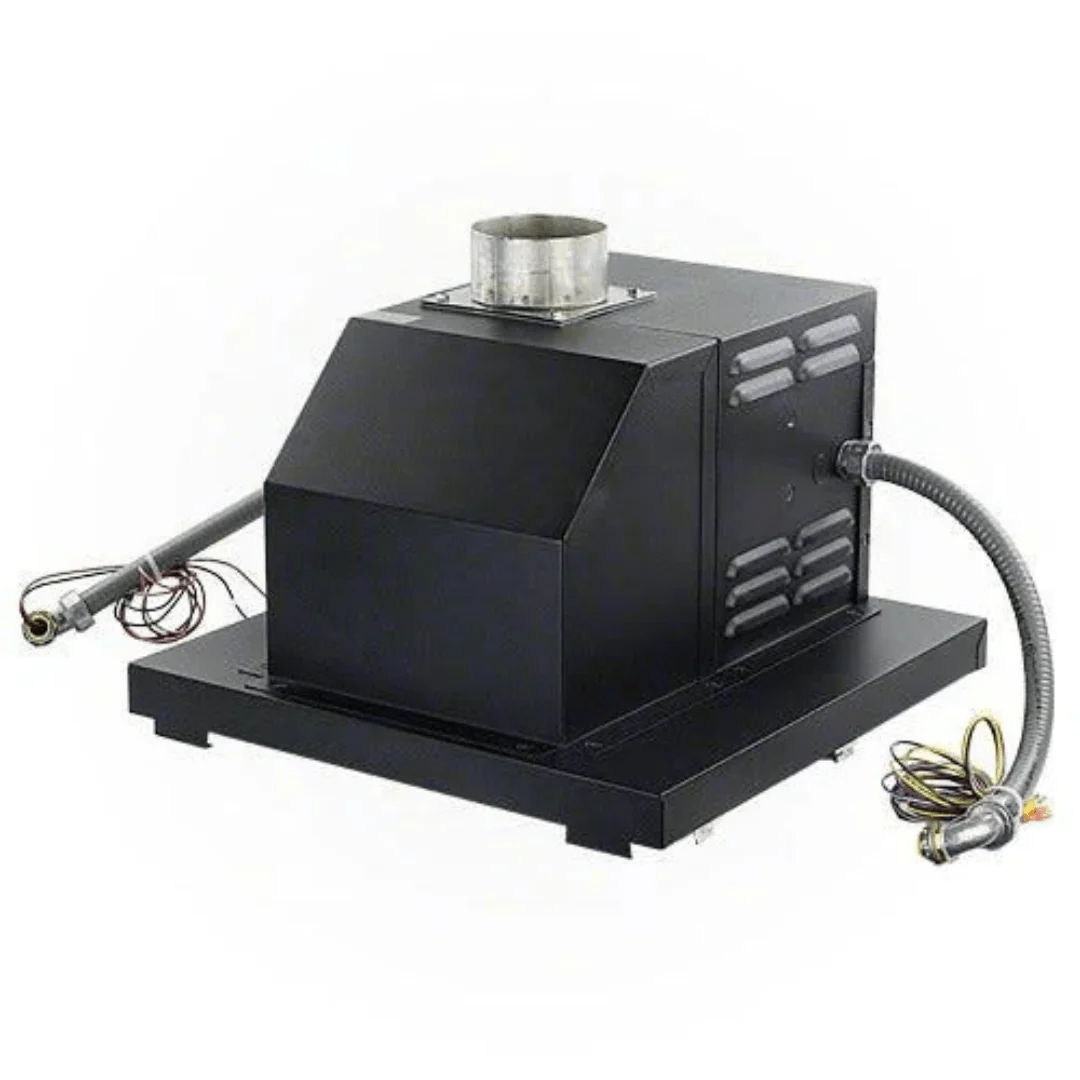

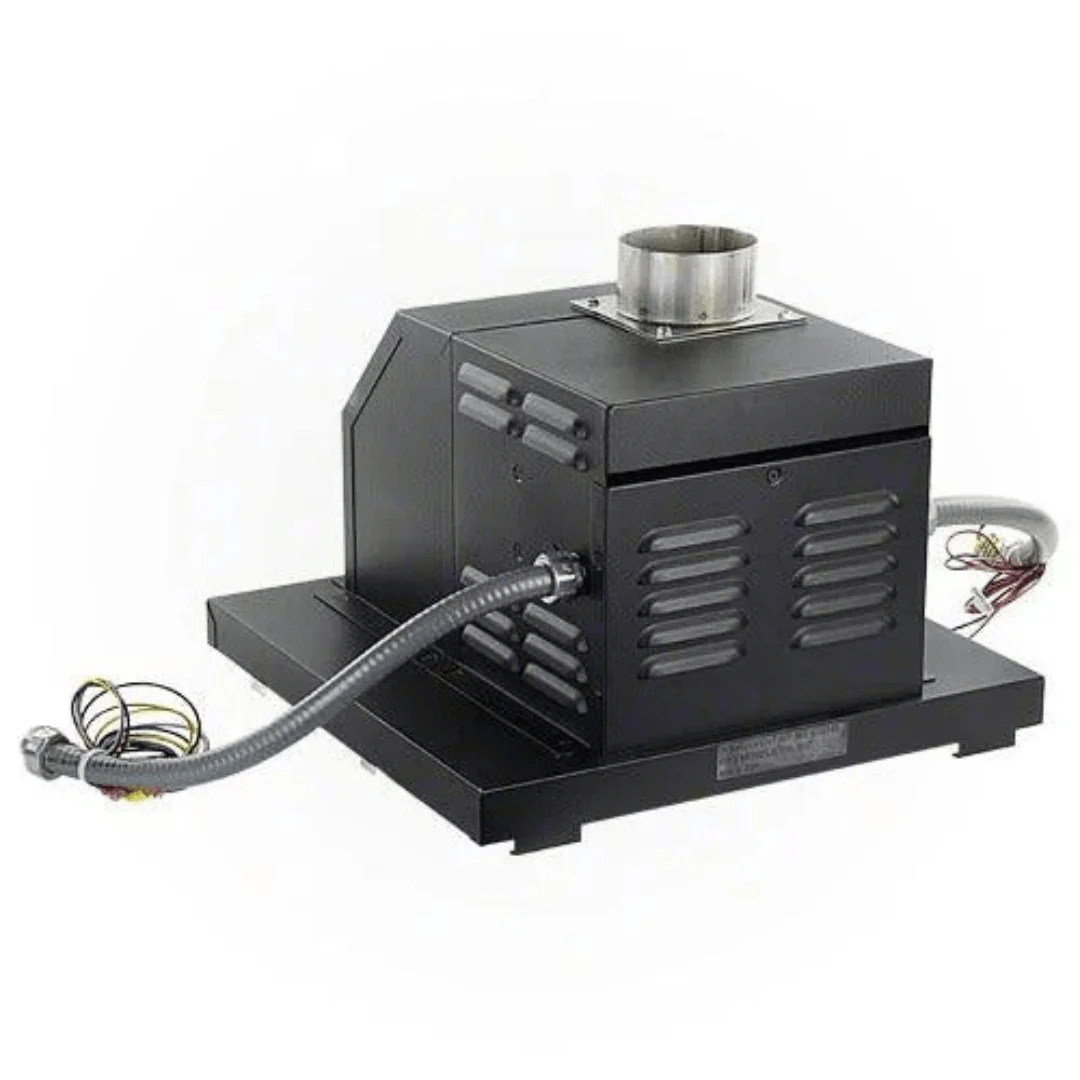

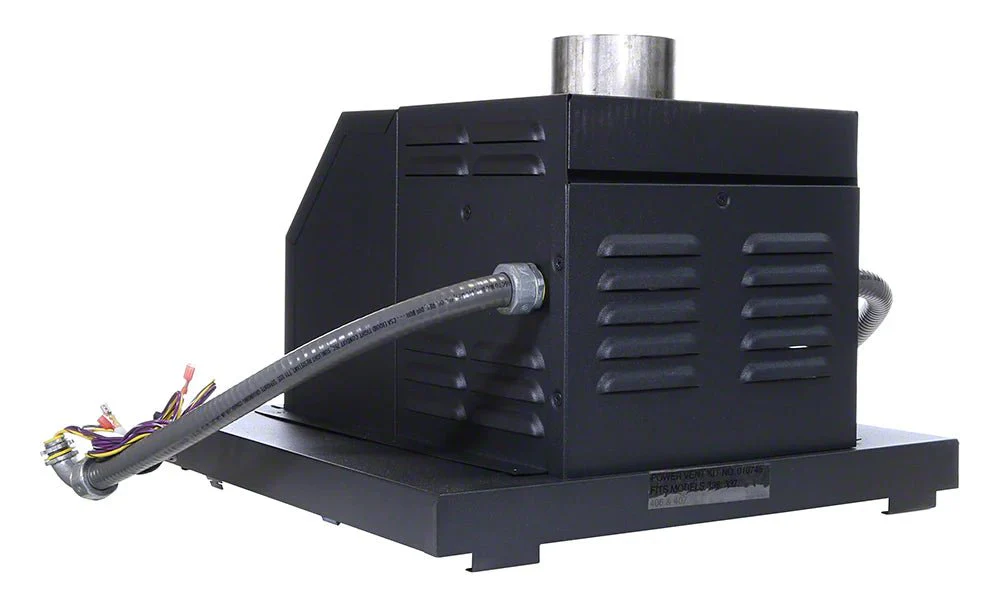

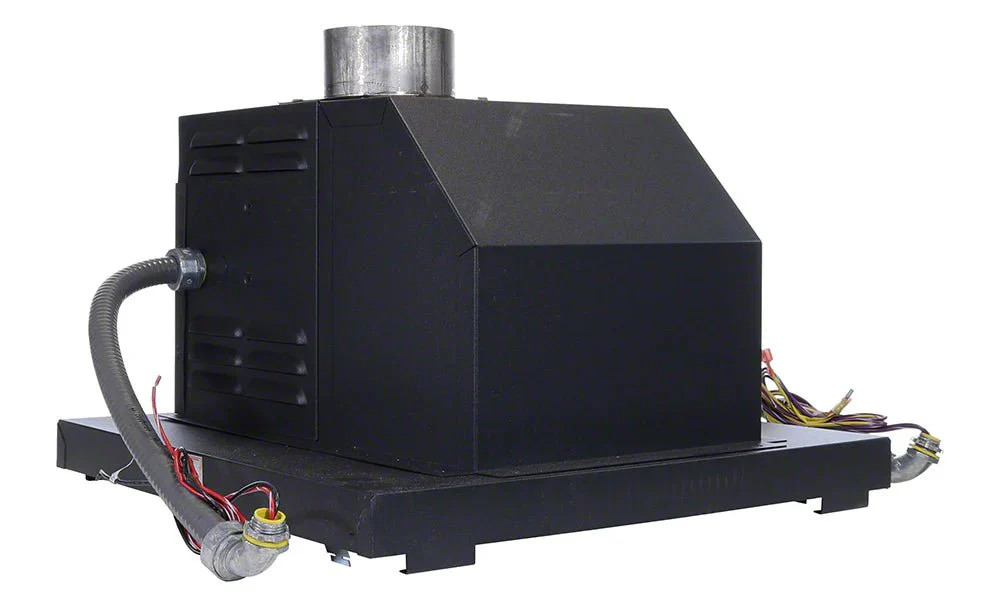

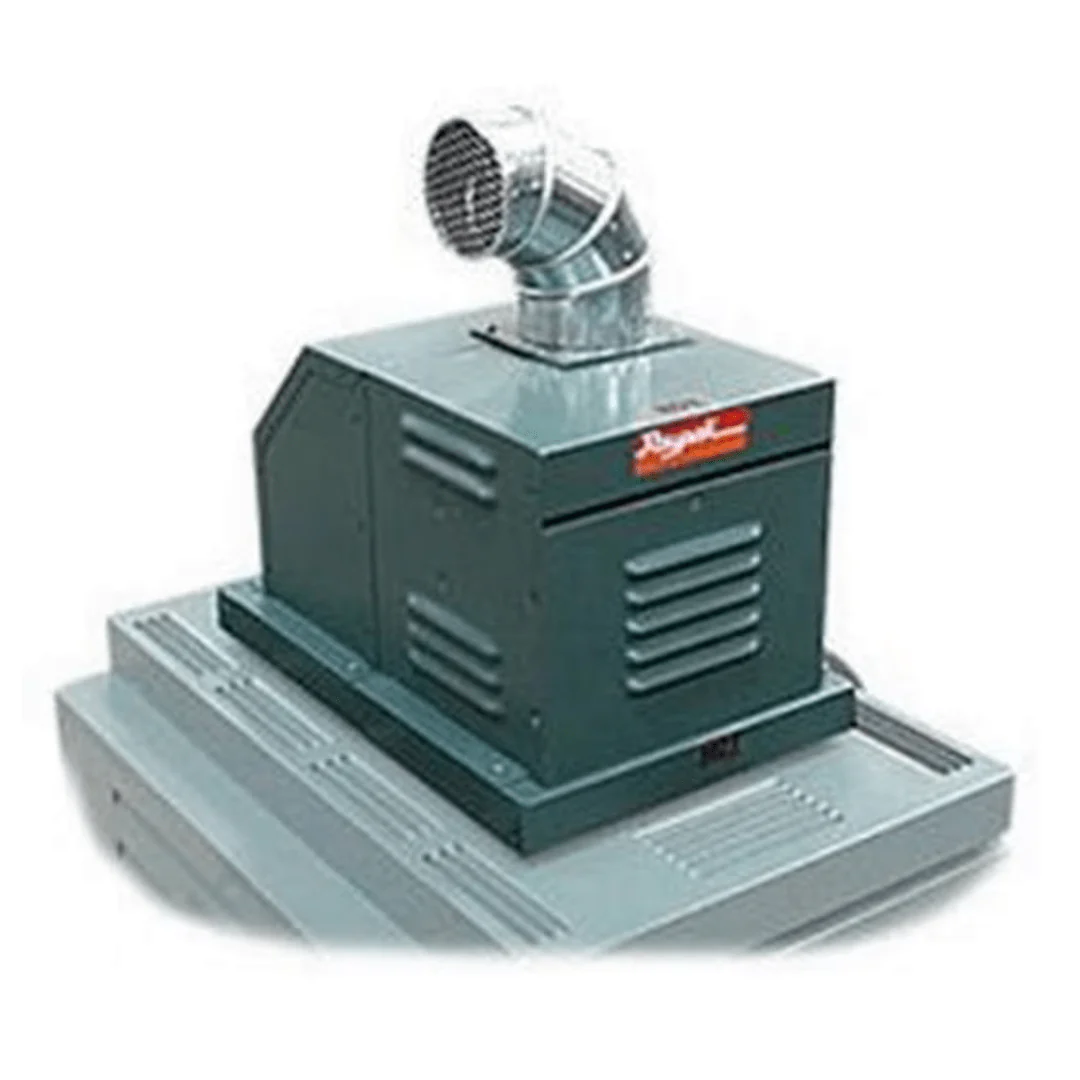

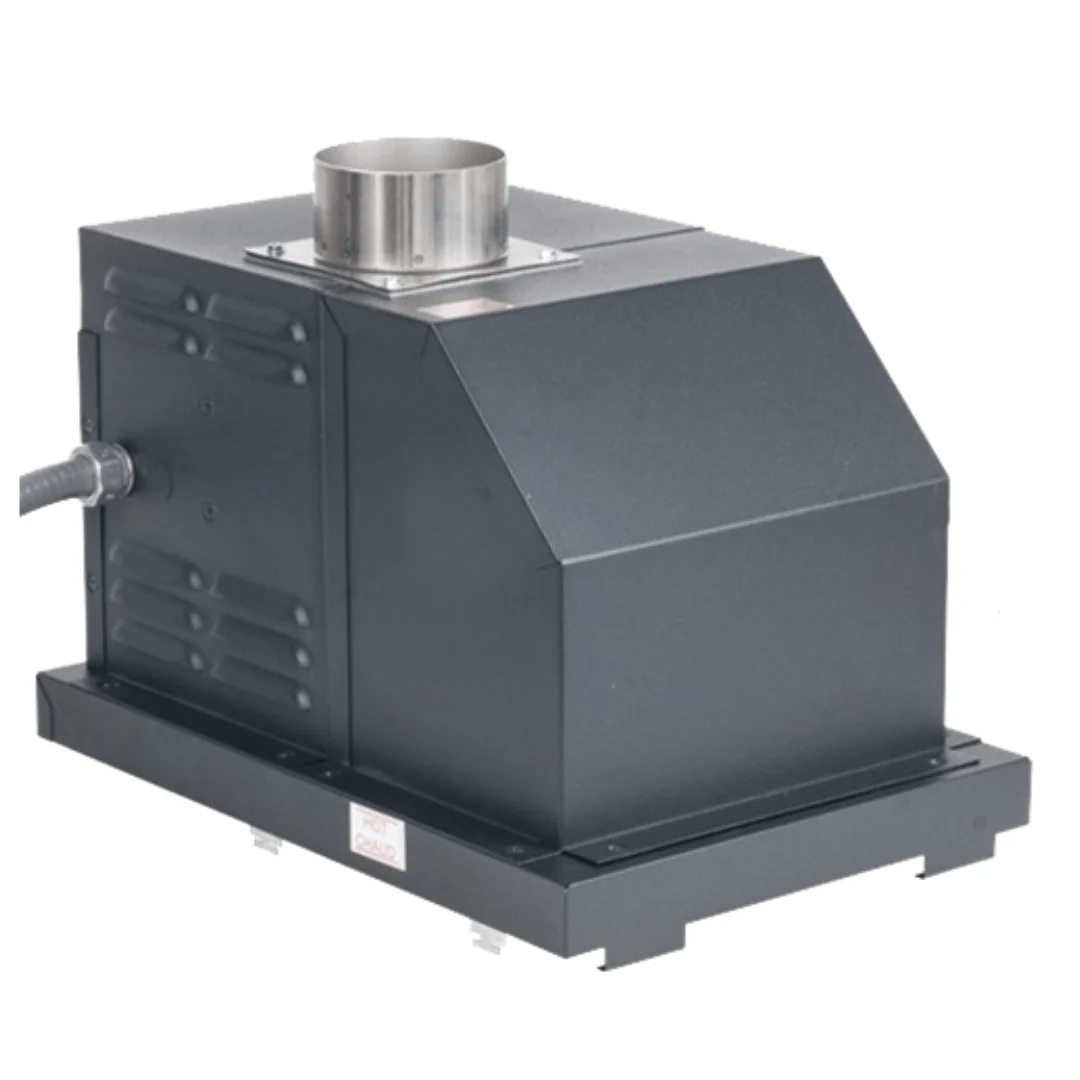

The D-2 Power Vent assembly is a Category III mechanical draft venting system that operates with a positive vent static pressure and with a vent gas temperature that avoids excessive condensate production in the vent. All sizes are capable of relieving flue gases up to a maximum of 100 equivalent feet of vent length. All models have a 4” diameter exhaust connection and can be sidewall terminated using field-supplied cat III-certified vent material. Use the factory-supplied screened elbow as a downturned sidewall vent termination.

• For use with all Raypak Digital models, sizes 336A-408
• The D-2 replaces the standard draft hood
• Compatible for indoor or outdoor installation
• For use with all Raypak Digital models, sizes 336A-408. The D-2 replaces the standard draft hood
• Certified
• The D-2 Power Vent assembly is tested and certified to the latest edition of the American National Standard ANSI Z21.56 for pool heaters
• Install Guide
