The Smart Heater Bypass valve control diverts water flow when the heater isn’t needed to help save up to 35% in yearly operational costs.

• Pentair 462048 Smart Heater Bypass Valve Kit
• Compatible with MasterTemp & Max-E-Therm Heaters
• User Manual & Instructions

In conjunction with a Pentair Replacement IntelliFlo VF pump the automatic by-pass valve functionality of the latest MasterTemp heater will improve the head loss through the pool system, reduction of pump power consumption, and the longevity of the heater by automatically take the heater mostly out of the flow loop when not in use.

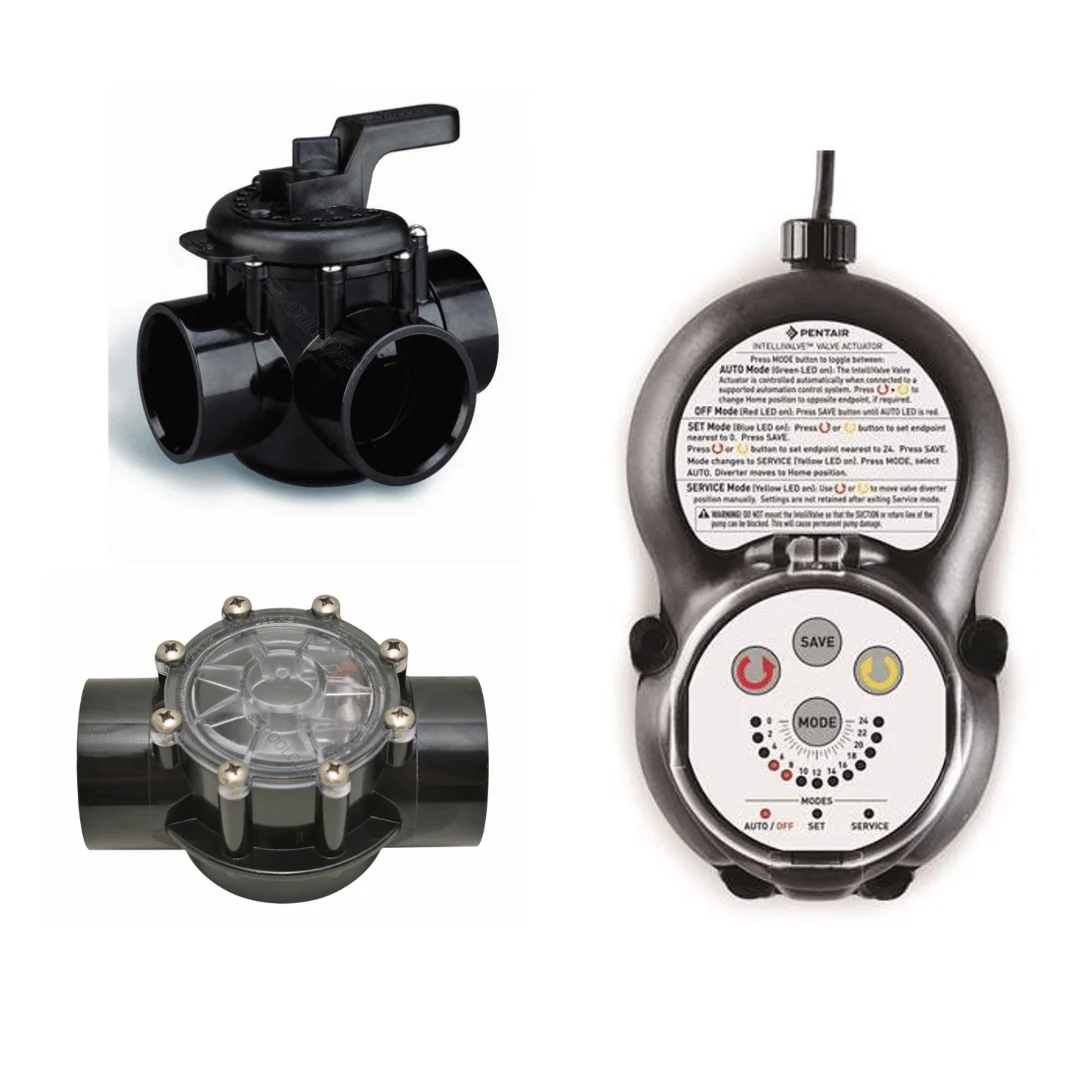

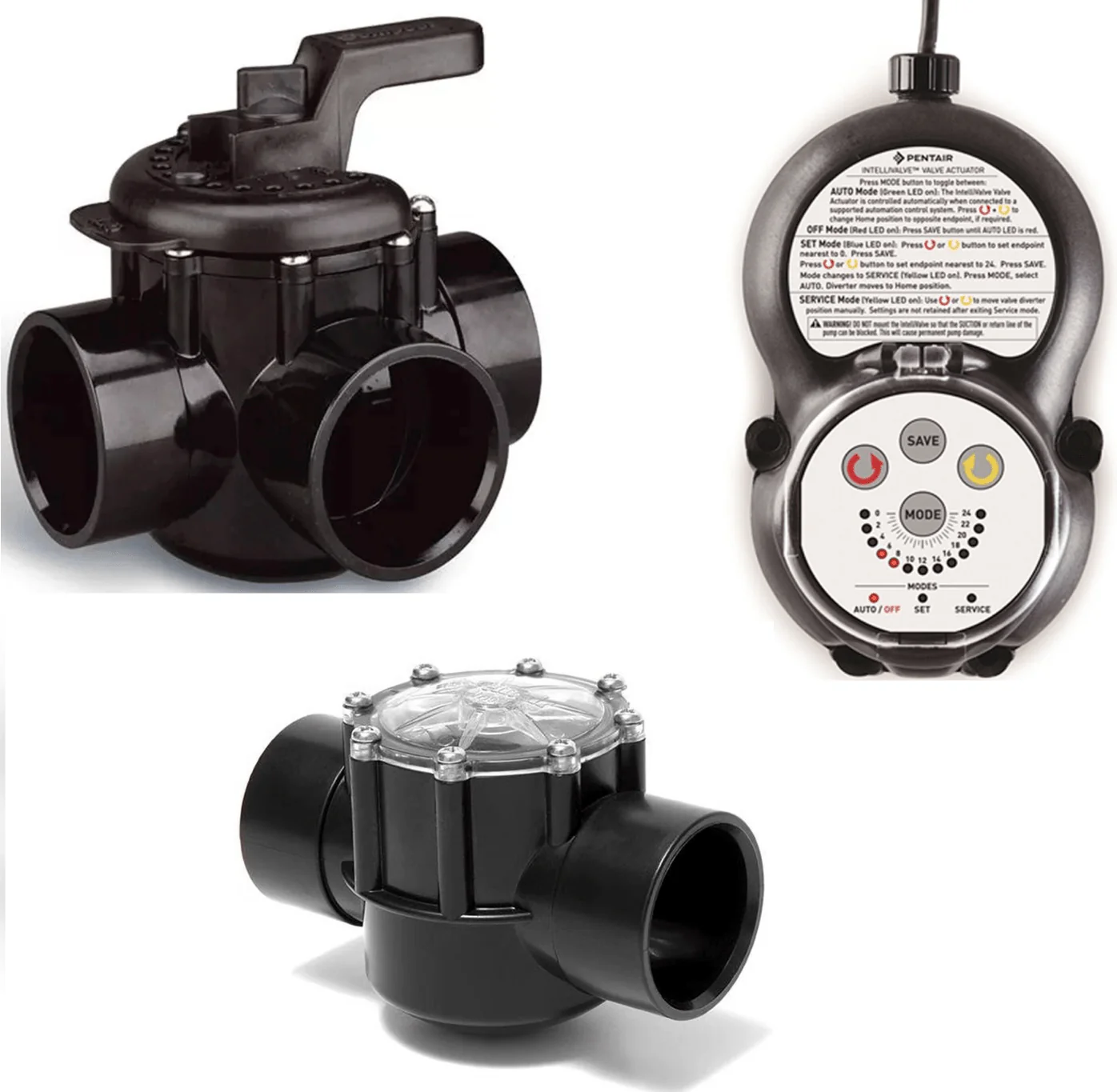

Pentair MasterTemp Sta-Rite Max-E-Therm Gas Heaters Automatic By-pass Valve Kit 462048 Contents:

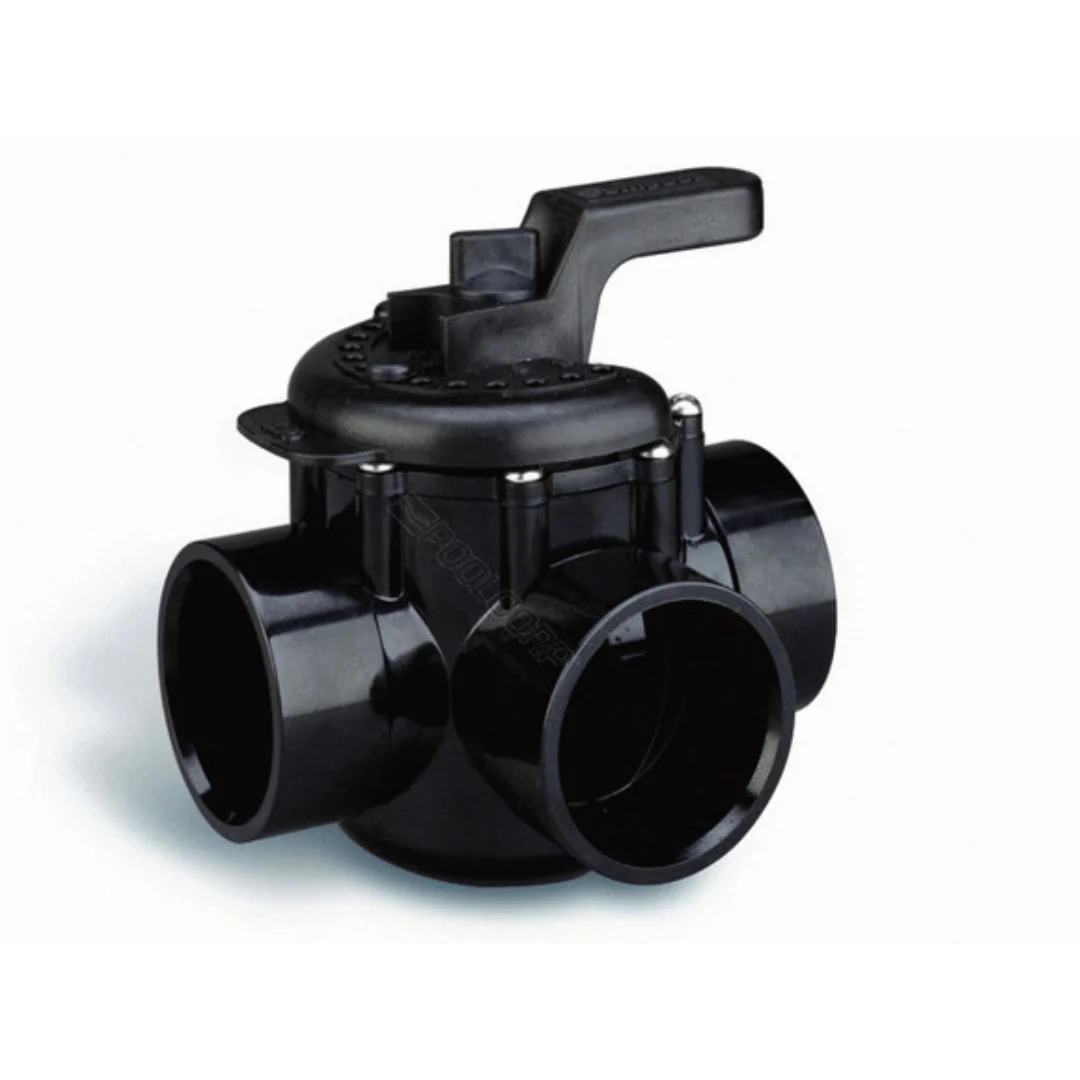

• One Jandy Type 2-inch 3-Way Valve
• One Pentair IntelliValve Actuator

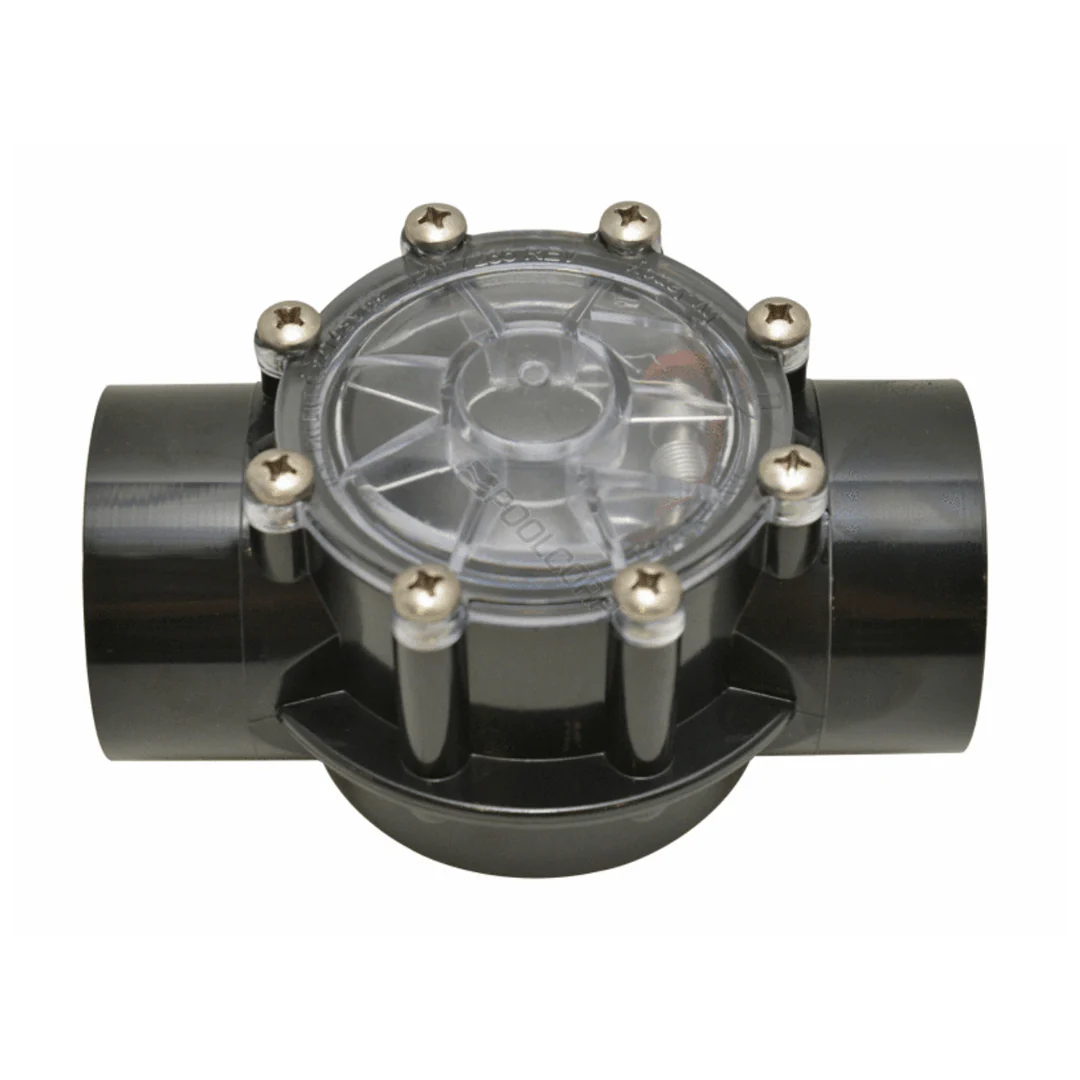

• One Jandy Type 2-inch Check Valve

The following instructions describe how to configure your pool/spa hydraulics for a 3-way or 2-way automatic
bypass valve.

Pentair does not make the valves included in the package.
They are Jandy Type valves as seen in the picture.
