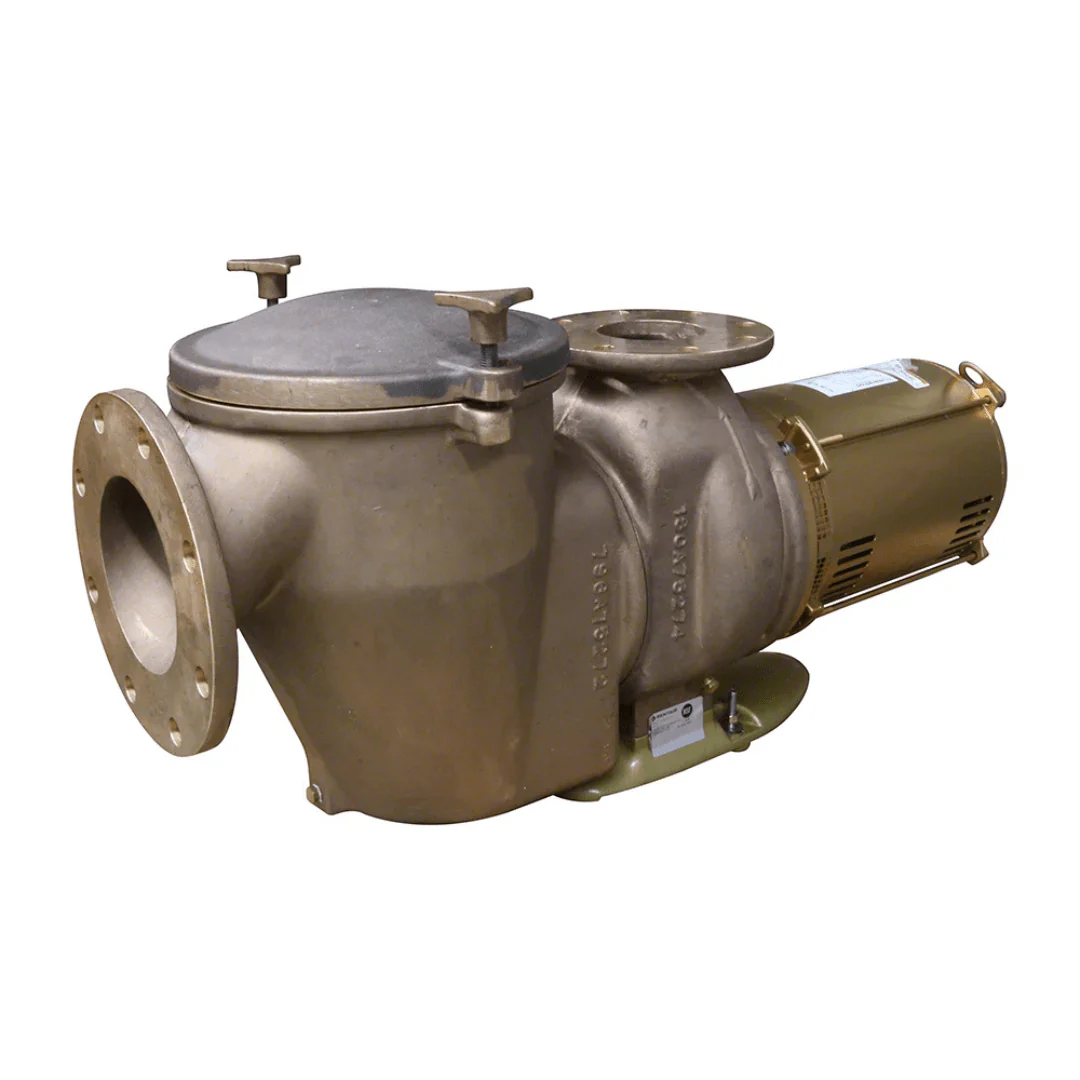

Pentair 347916 C-Series CH-75 7.5 HP 230V 1-Phase High Head Pump
Pentair 347916 C Series 1 Phase Standard Efficiency High Head Commercial Bronze Pump with Hair and Lint Strainer; 7.5 HP, 230V, 37 Amp
The C Series Commercial Bronze volute and pot are coated in cast iron with flanged connections, 6" suction, and 4" discharge. The all-bronze construction is for strength and durability. Heat-resistant seal and closed impeller give this pump a longer motor bearing life. The "C" Series is perfect for the toughest indoor or outdoor projects. This pump's lasting efficiency, quiet operation, easy maintenance, and durability have set the standard for medium- and high-head performance in the pool industry for many years.
- Brochure
- Install Guide
- Tech Info
Specifications:
- Brand: Pentair
- Amps High Speed: 37
- Shipping Dimensions: 20 x 45 x 22 inch
- Amps Low Speed: 37
- Commercial, Residential, or Professional: Commercial
- Weight: 375 pounds
- Flow Rate Max: 740
- Flow Rate Min: 0
- Frequency Rating (Hz): 60
- Horsepower: 7.5 horsepower
- Material: Bronze
- Motor Speed: 1-Speed
- Phase: Single
- Service Factor: 1.15
- Service Factor HP: 8.63
- Thrust HP: 7.5
- Voltage: 230V
- UPC Code: 788379657222
Original: $10,999.00
-65%$10,999.00
$3,849.65Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Pentair 347916 C Series 1 Phase Standard Efficiency High Head Commercial Bronze Pump with Hair and Lint Strainer; 7.5 HP, 230V, 37 Amp
The C Series Commercial Bronze volute and pot are coated in cast iron with flanged connections, 6" suction, and 4" discharge. The all-bronze construction is for strength and durability. Heat-resistant seal and closed impeller give this pump a longer motor bearing life. The "C" Series is perfect for the toughest indoor or outdoor projects. This pump's lasting efficiency, quiet operation, easy maintenance, and durability have set the standard for medium- and high-head performance in the pool industry for many years.
- Brochure
- Install Guide
- Tech Info
Specifications:
- Brand: Pentair
- Amps High Speed: 37
- Shipping Dimensions: 20 x 45 x 22 inch
- Amps Low Speed: 37
- Commercial, Residential, or Professional: Commercial
- Weight: 375 pounds
- Flow Rate Max: 740
- Flow Rate Min: 0
- Frequency Rating (Hz): 60
- Horsepower: 7.5 horsepower
- Material: Bronze
- Motor Speed: 1-Speed
- Phase: Single
- Service Factor: 1.15
- Service Factor HP: 8.63
- Thrust HP: 7.5
- Voltage: 230V
- UPC Code: 788379657222
