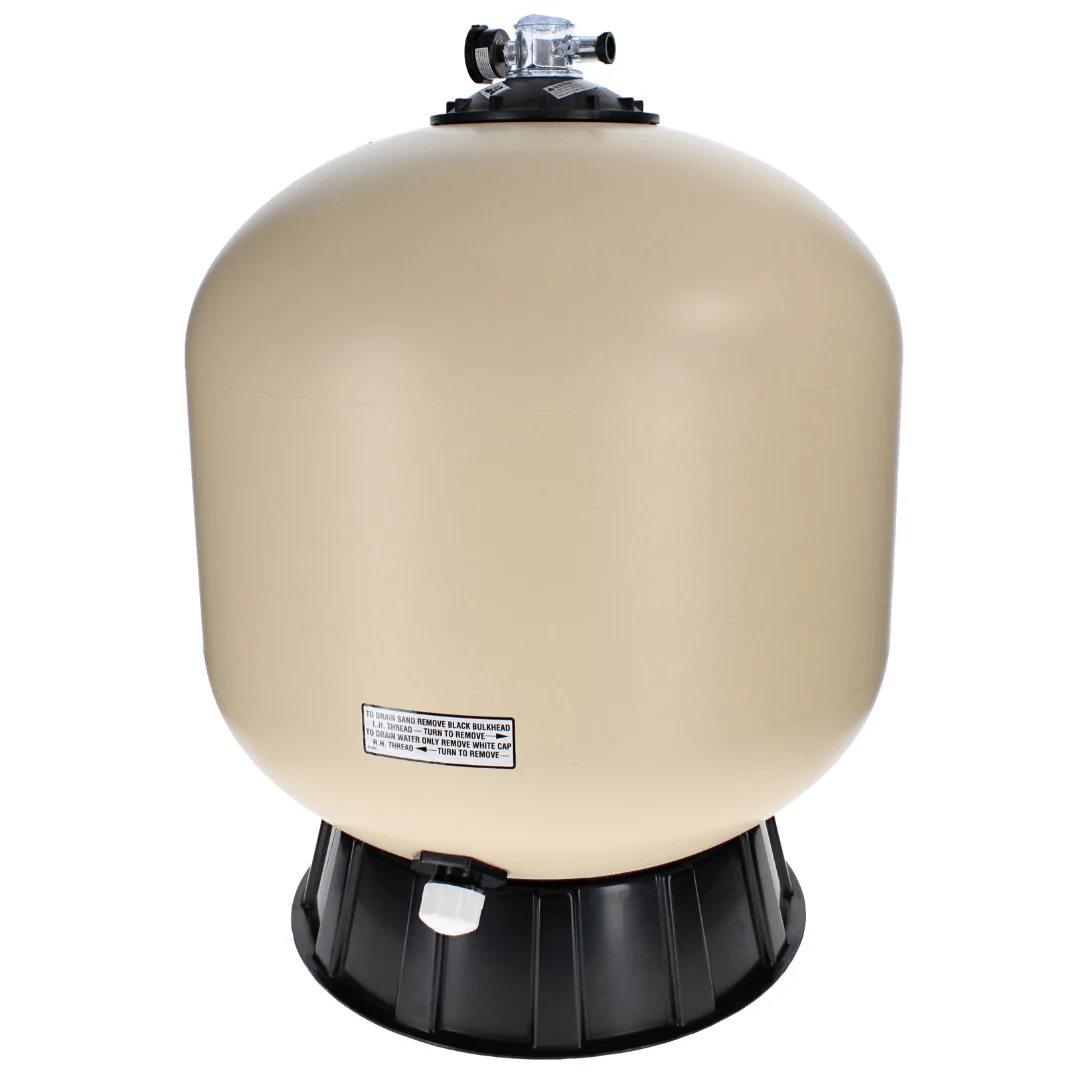

FIBERGLASS SAND FILTER WITHOUT VALVES

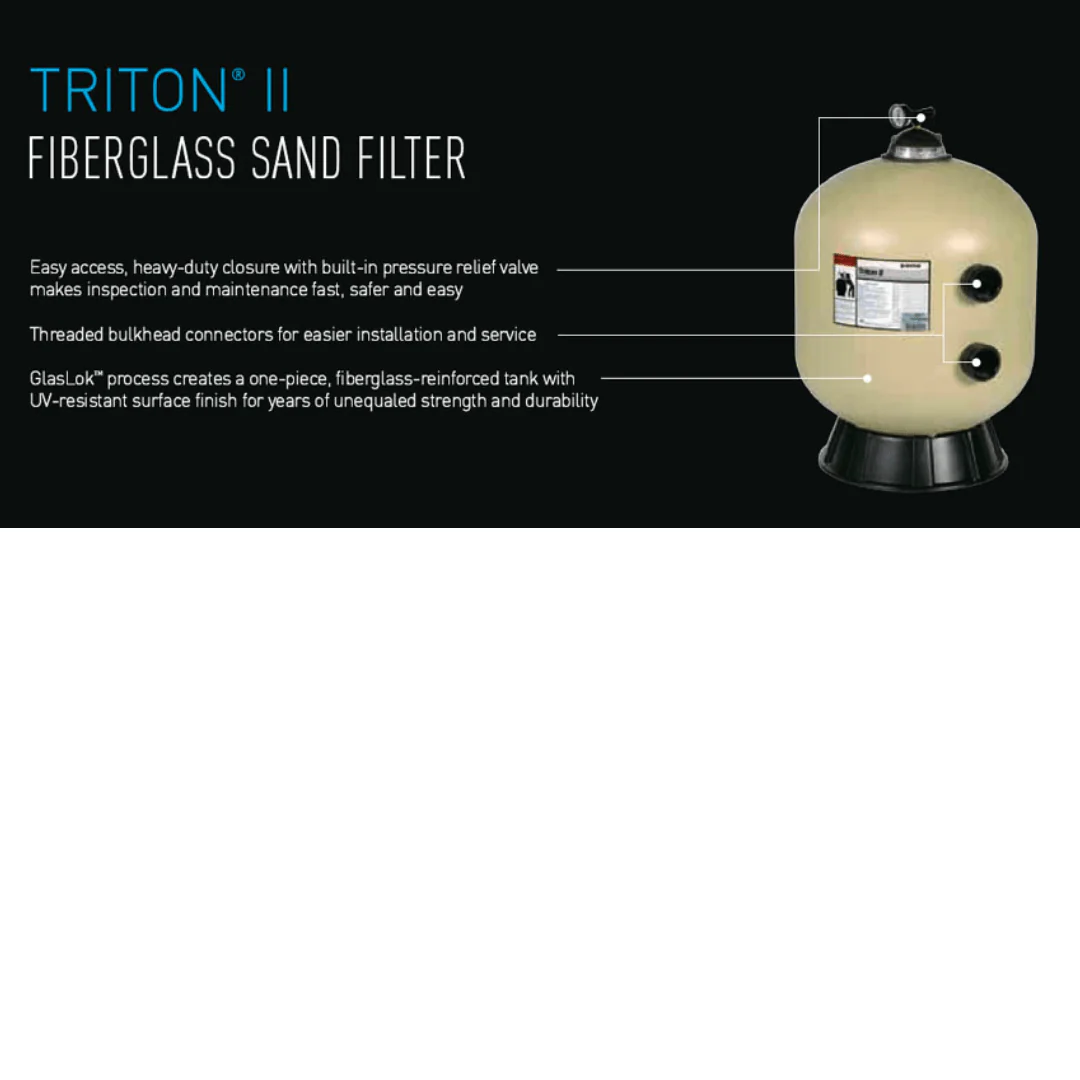

The Triton® II Sand Filter, developed over 40 years of evolution, sets the industry standard for effectiveness, efficiency, and low maintenance. Its innovative internal design maintains a level sand bed for even water flow, maximizing filtration performance. With superior reliability and ease of operation, the Triton II is unmatched in dependability and operational simplicity, making it the benchmark for sand filters.

• Heavy-duty closure provides easy inspection
• Easy-to-read pressure gauge with air relief valve
• Instant access to sand and all internal parts
• Internal air bleed automatically prevents unwanted air pockets
• Combination sand and water drain makes servicing and winterizing fast and easy

Note: Operating limits—Maximum continual operating pressure of 50 psi. Maximum operating water temperature (internal filter) 104° F.

Specifications:

• Brand: Pentair
• Commercial, Residential, or Professional: Residential
• Weight: 44 pounds
• Material: Fiberglass

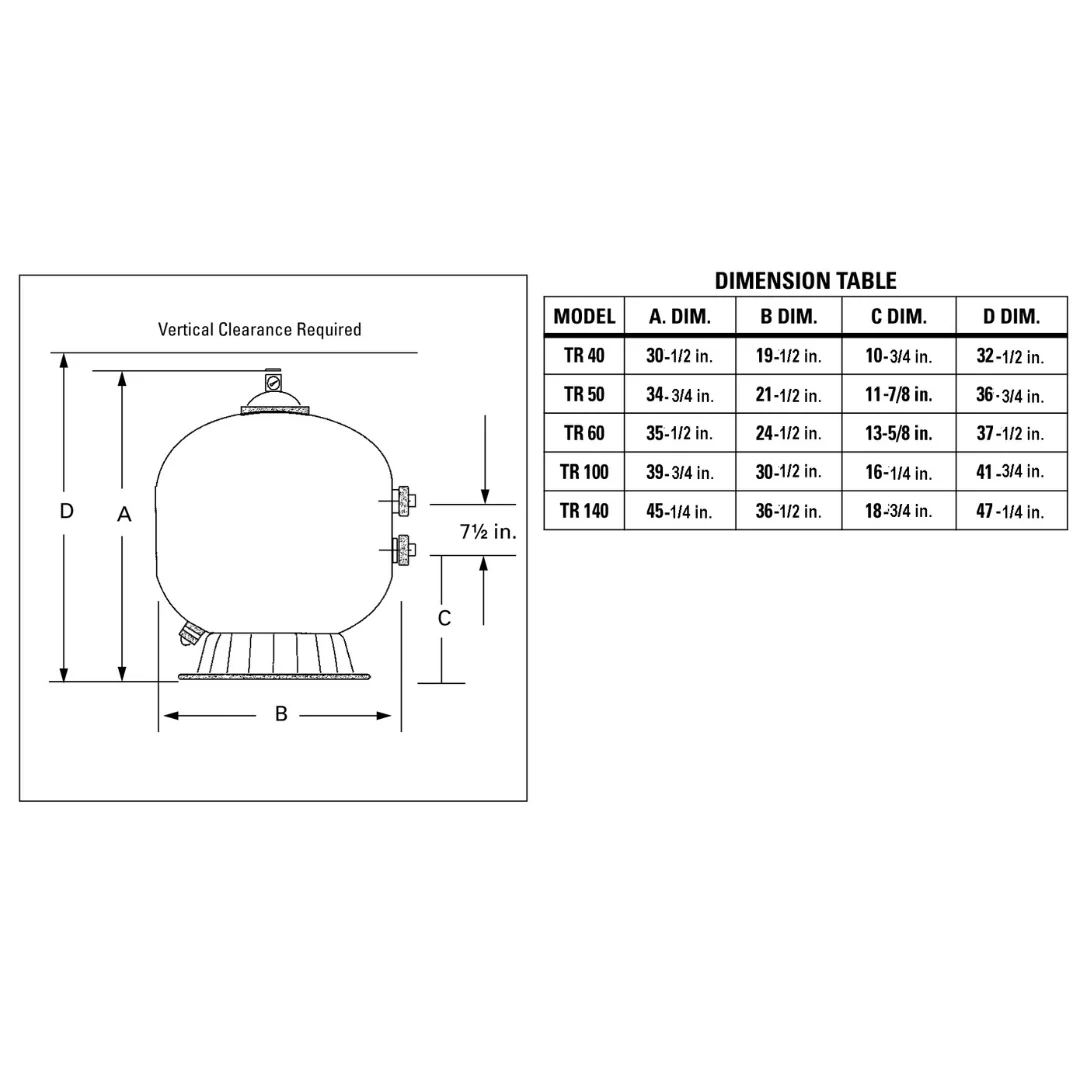

• Height: 35.5 inch
• Width: 24.5 inch
• Filter Media Pea Gravel: 75-pound
• Filter Media Sand Required: 250-pound
• Filtration Area: 3.14 square feet
• Sand Required: 325 pound
• Tank Material: Fiberglass
• Turnover 10hrs: 37800 gallon
• Turnover 12hrs: 45360 gallon
• Turnover 8hrs: 30240 gallon
• Vertical Clearance: 37.5 inch
• Part No. TR60, TR 60, 140264, EC-140264, EC140264
