THE MOST POWERFUL, EFFICIENT WHISPERFLO® EVER.

The new WhisperFloXF® pool pump was developed using the most advanced engineering tools: CFD (Computational Fluid Dynamics) and FEA (Finite Element Analysis). The proprietary impeller design delivers higher precision concentricity for increased efficiency. The proprietary hydraulic isolator smooths the water flow inside the volute, increasing the efficiency. With capabilities over 200 GPM, WhisperFloXF is an ideal choice for many residential and commercial applications, especially those involving water features, negative edges, and slides.

• Drop-in replacement for original WhisperFlo and optional riser plate enables easy Challenger replacement.
• A modular plumbing system means less need to cut and glue pipe
• External port threading and tool-free union nuts need only hand-tightening
• Easy-carry handle; easily removable, ergonomic lock ring; and see-through lid for easy basket inspection
• Upgraded dual-compartment motor for simplified field wiring
• Upgraded hydraulic isolator separates priming water from pumping water for faster priming, more turbulence-free flow, and increased efficiency
• Upgraded union connectors included for connecting directly to 2.5" or 3" plumbing

Support Documents:

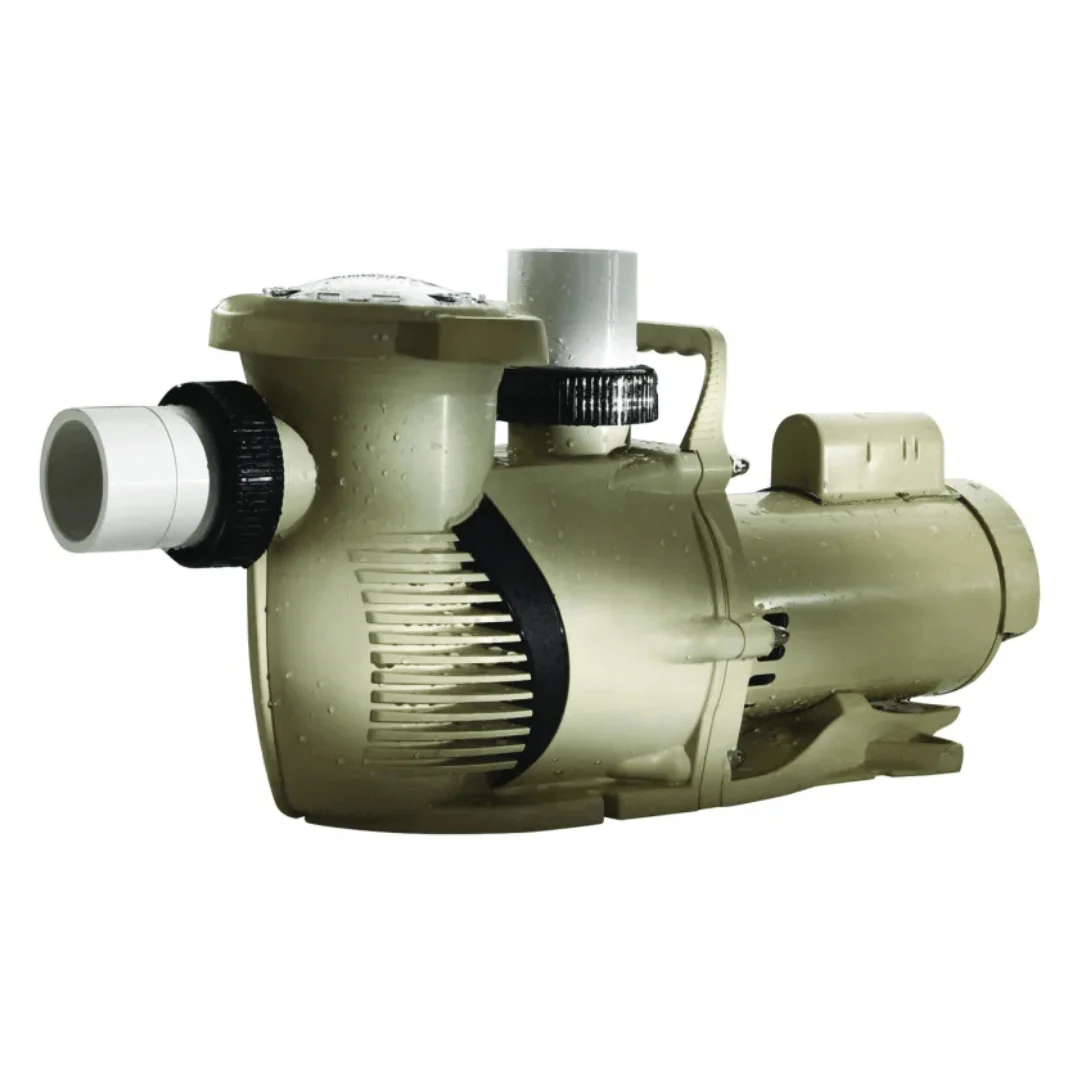

Pentair 022017 WhisperFloXF® XFK-8 3-Phase TEFC Pump with Super-Duty Motor Specifications:

• Brand: Pentair
• Amps High Speed: 7.5
• Amps Low Speed: 3.6
• Commercial, Residential, or Professional: Commercial
• Weight: 60 pounds
• Flow Rate Max: 190 gal/min
• Green or Energy-Efficient Product: True
• Horsepower: 2 horsepower
• Motor Enclosure Type: Totally Enclosed Fan-Cooled
• Motor Speed: 1-Speed
• Phase: Three
• Service Factor: 1.3
• Service Factor HP: 2.6
• Standards Approvals: CSA Certified
• Thrust HP: 2
• Voltage: 208V/230V/460V (3-Phase)
• UPC Code: 788379851859

Three-Phase Single Speed Premium Efficiency with "Super-Duty" Motor: 022017, 022018, 022019.
