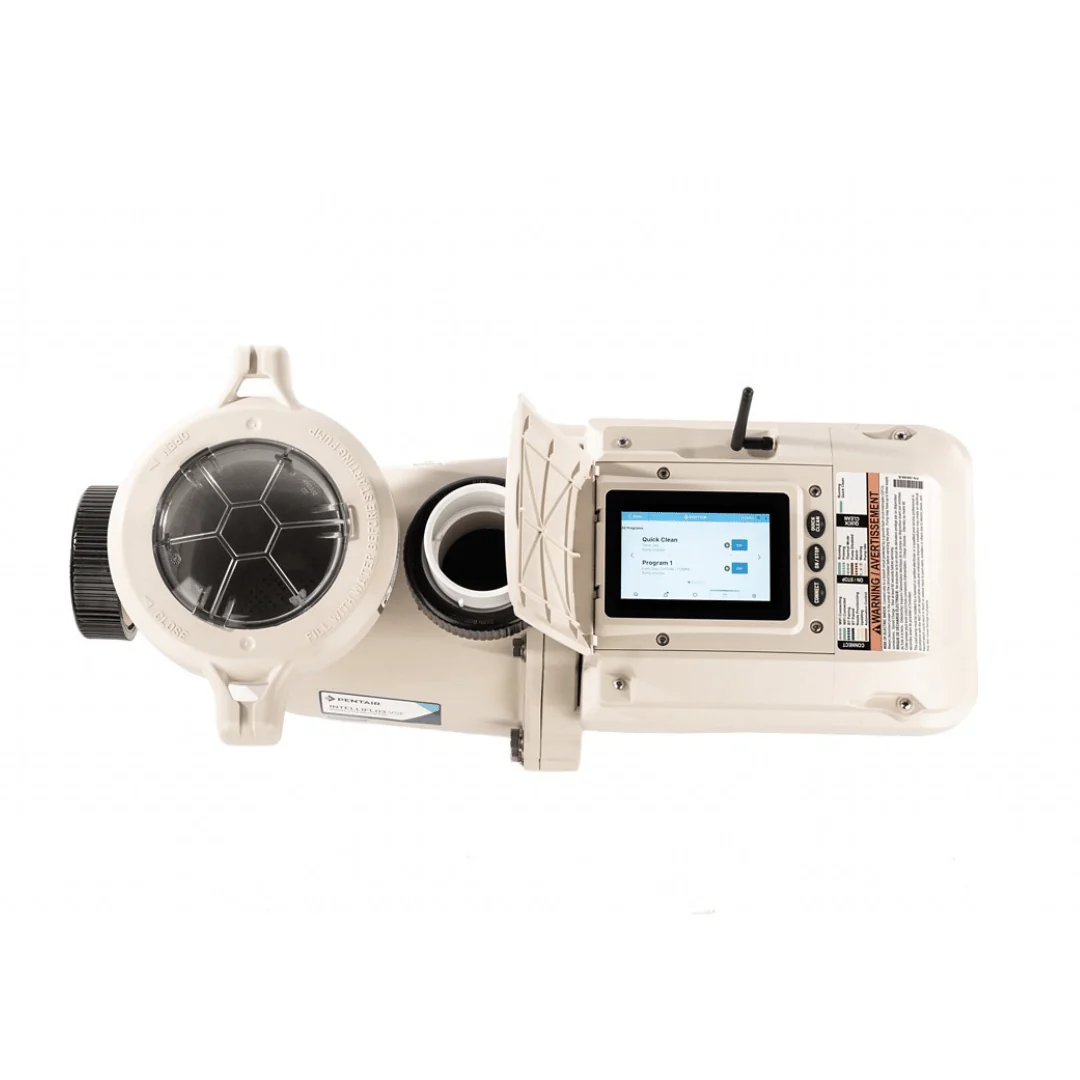

Pentair 1.5 HP IntelliFlo3® VSF 011066 Pool Pump with Relay Board 115/208-230V
QUIETLY POWERFUL, BRILLIANTLY EFFICIENT

• The 1.5HP IntelliFlo3® VSF Pump with I/O Relay Board 011066 is ideal for users who want to control additional devices like lights, salt cells, and other on/off equipment directly from the pump.

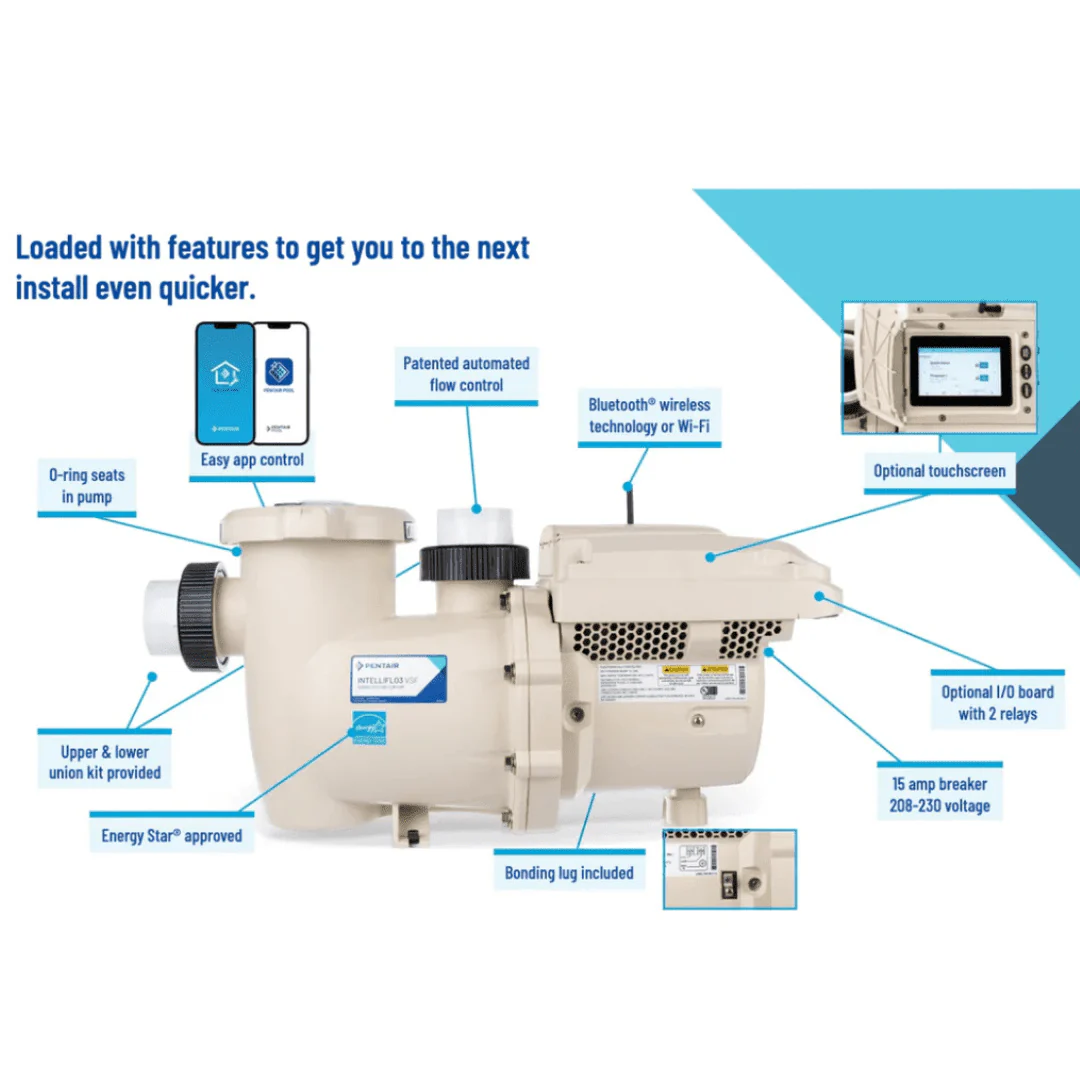

The award-winning IntelliFlo3 VSF Pump is the pinnacle of Pentair Pool technology, connecting with the Pentair Pool and Pro apps to allow pool owners and professionals to monitor and control anytime, anywhere. With the ability to connect two additional pool equipment products with Wi-Fi-enabled automation, the IntelliFlo3 pump boasts innovative flow technology and a quiet operation, representing the future of efficient pool maintenance and ownership.

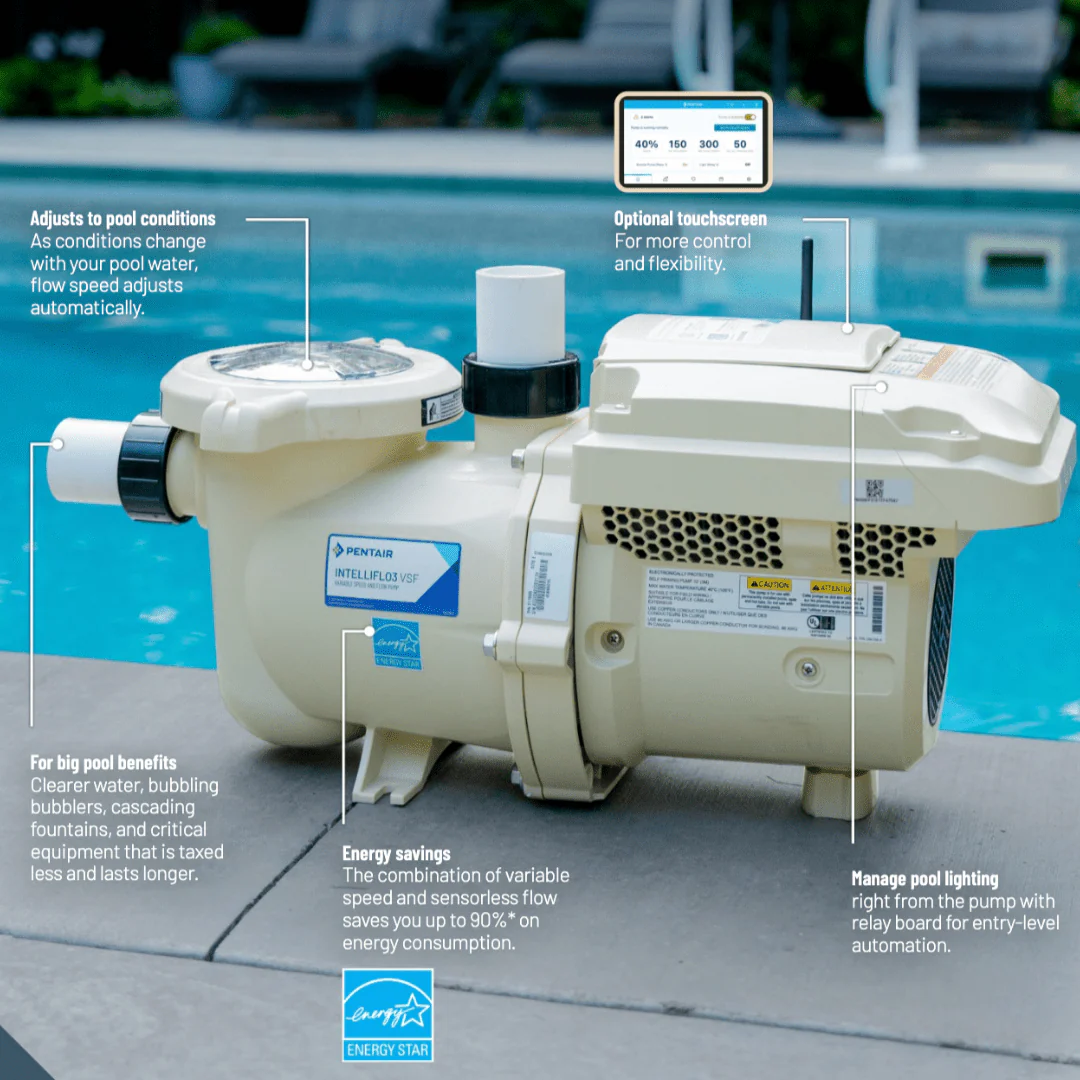

• Proprietary flow technology maintains the pool's optimal flow, adjusting to pool conditions and helping pool owners save up to 90% in energy consumption
• Only pump with Wi-Fi-enabled automation; unlocks the ability to connect two additional pool products for more streamlined pool management
• An optional touchscreen adds a modern touch and easy local operation for on-site professionals and pool owners
• Quieter performance compared to single-speed pumps, ensuring a more desirable backyard pool experience

• ENERGY STAR® Certified and compliant with the Department of Energy's latest standards on variable speed pumps

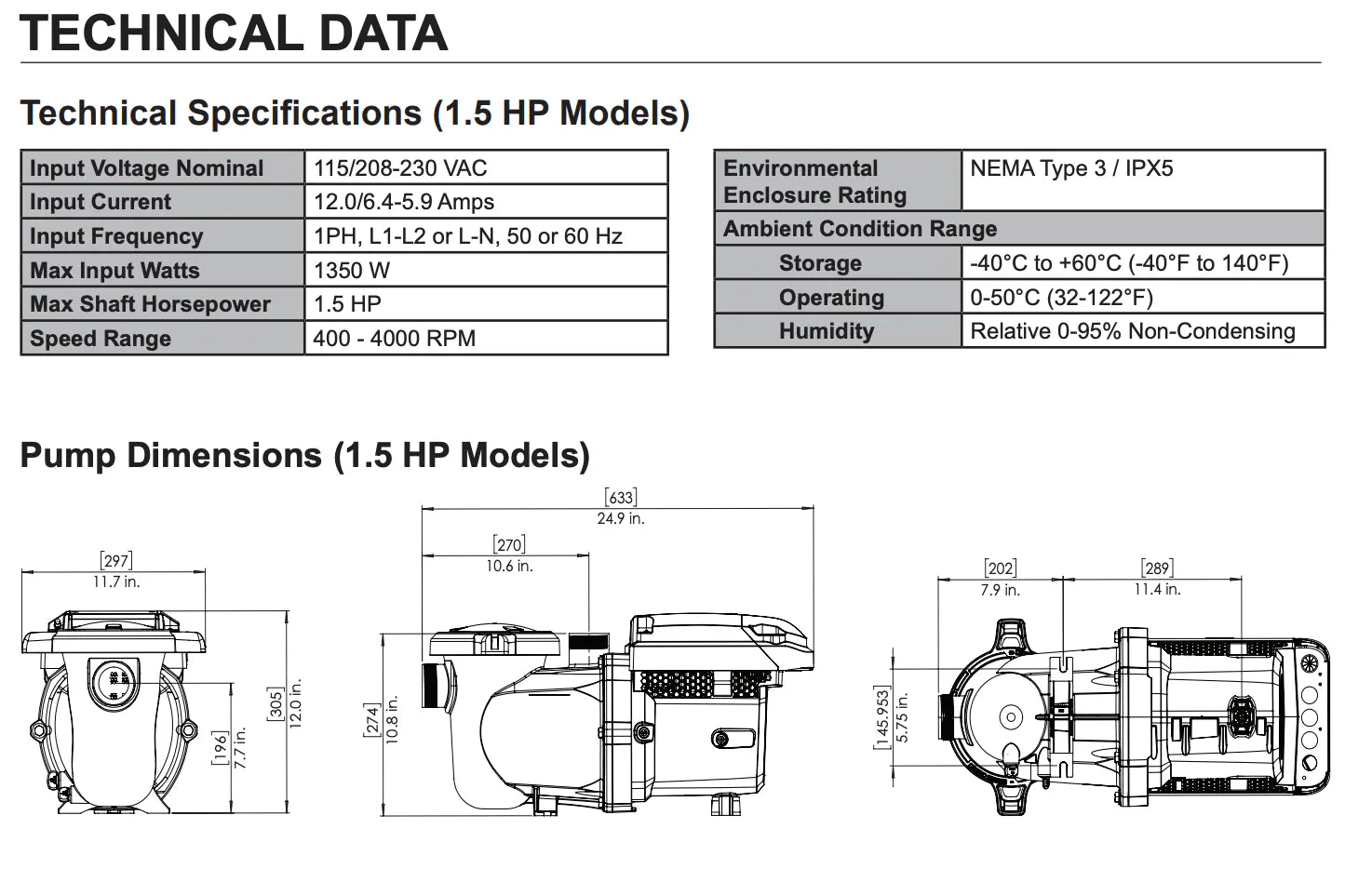

Specifications:

• Brand Pentair
• Application Pool
• Shipping Dimensions 30 x 15 x 19 inch
• Commercial, Residential, or Professional Residential
• Weight 48 pounds
• Flow Rate Max 90 gal/min
• Flow Rate Min 20 gal/min
• Max Working Pressure: 20 pounds per square inch
• Phase Single
• Port Size 1 2 inch
• Port Size 1 FIT NPT
• RPMs Max 4000
• RPMs Min 400
• Thrust HP 1.5
• Weighted Energy Factor (WEF) 9.4
• UPC Code 788379886110
• Warranty: 3-year warranty with professional installation

Support Documents:

• Install Guide
• User Guide
• Tech Guide
• Brochure IntelliFlo3 VSF Pool Pump
• Brochure Pentair Pump Family
• Pool & Spa Calculators
• Variable Speed Pool Pumps Comparison

Please note: Pentair models 011065, 011067, and 011068 have been discontinued and are no longer available.
