Hayward Universal H-Series Heater 150,000 BTU - Propane w/ OmniX

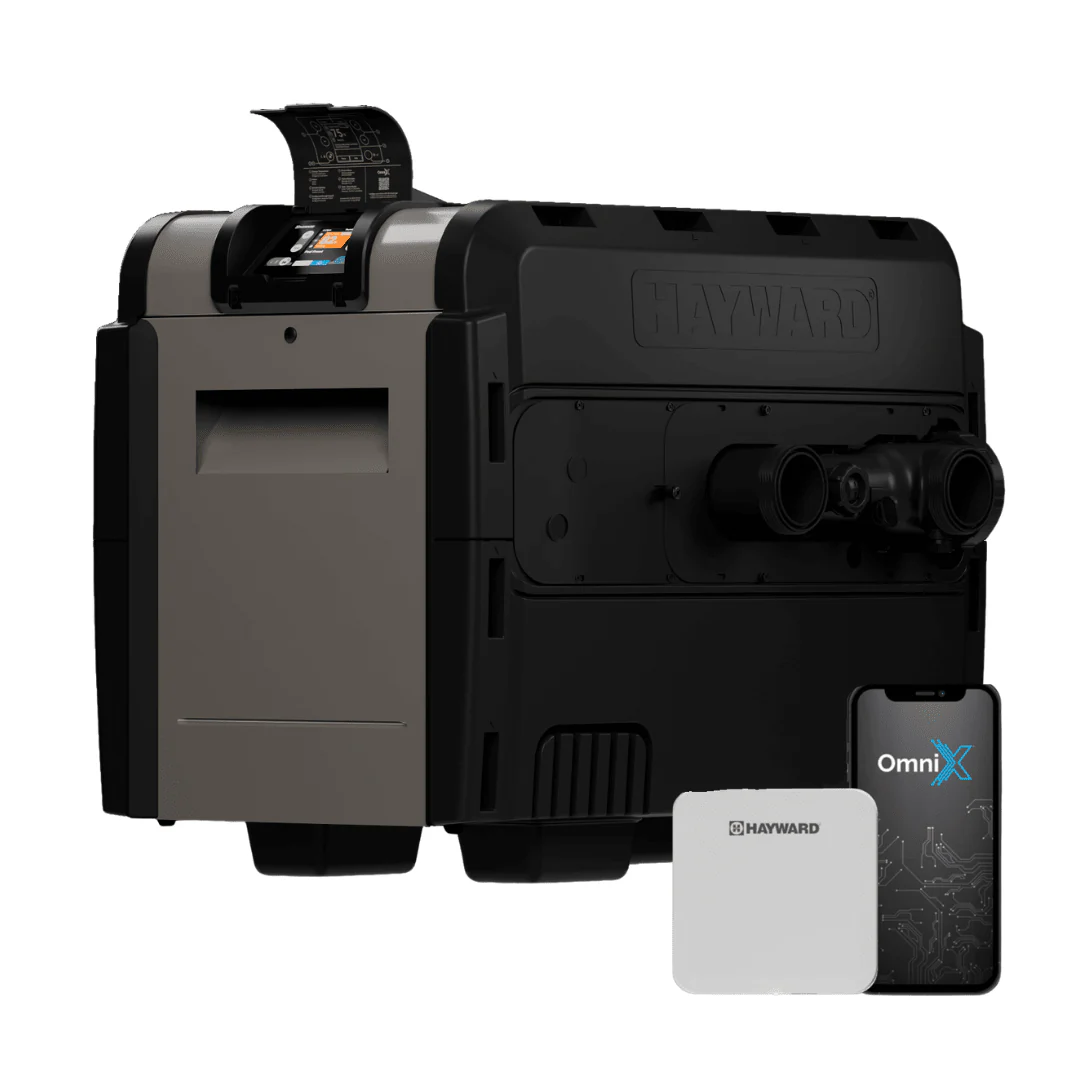

Universal H-Series pool and spa gas heaters are engineered for easy drop-in replacement, with direct compatibility to Hayward plumbing adapters. At the center is Hayward’s Universal Display, delivering a consistent, intuitive control experience across Omni®, OmniX®, and competitive automation systems. With OmniX embedded intelligence, the heater provides enhanced programmability, advanced diagnostics, and seamless remote connectivity.

Features:

• Cupro-nickel heat exchanger offers exceptional protection against corrosion and premature failure caused by unbalanced water chemistry
• Totally managed water flow boasts industry-leading hydraulic performance coupled with lightning-fast speed-to-heat capability
• A universal junction box allows either left or right electrical installation
• Front-panel-only access provides easy service and maintenance, avoiding the problems and costs associated with front-and-back-panel access heaters
• Low NOx emissions meet clean air quality standards
• Backwards Compatible OmniX Retrofit Kits available for existing Universal H-Series gas heaters 2016 or newer with the current bezel cutout

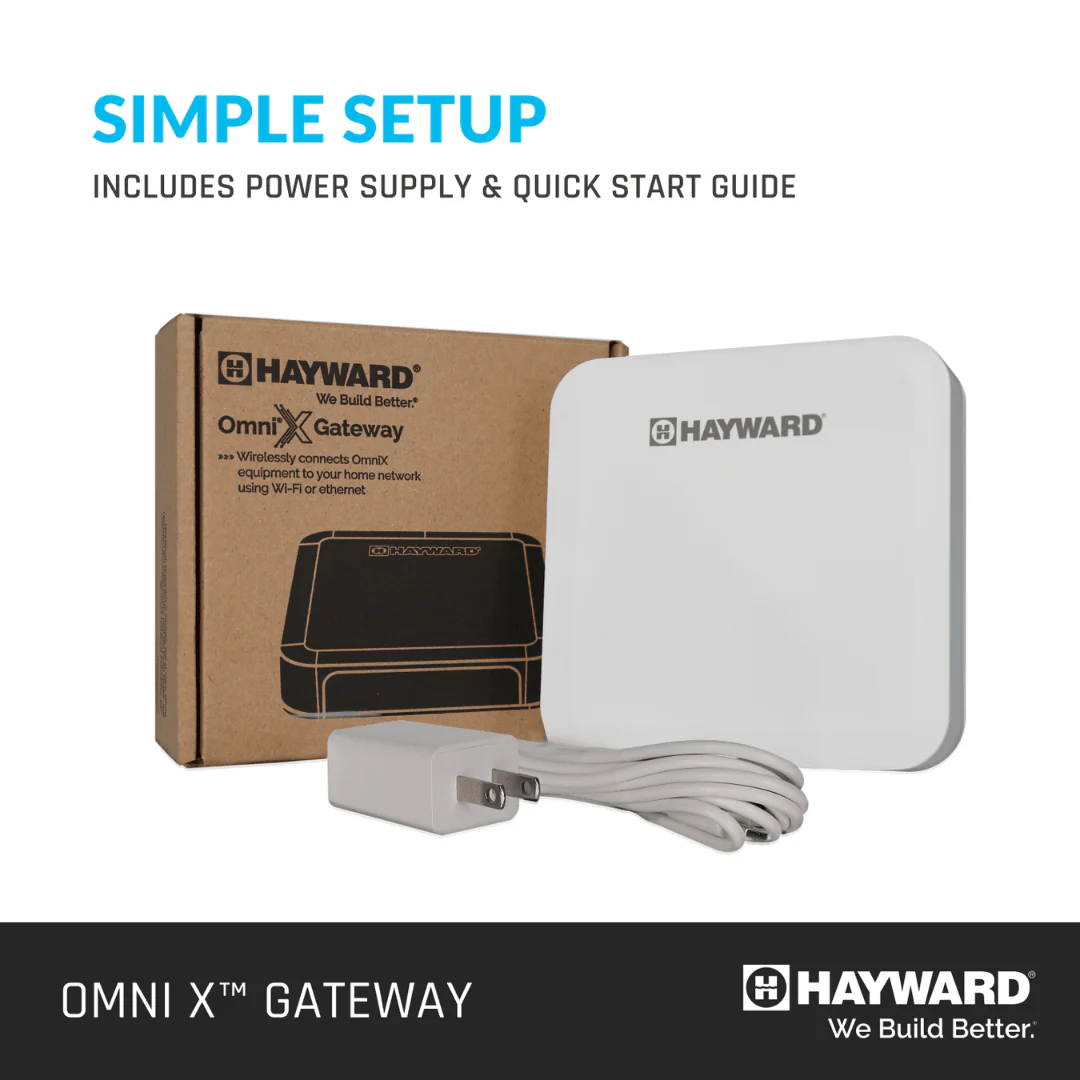

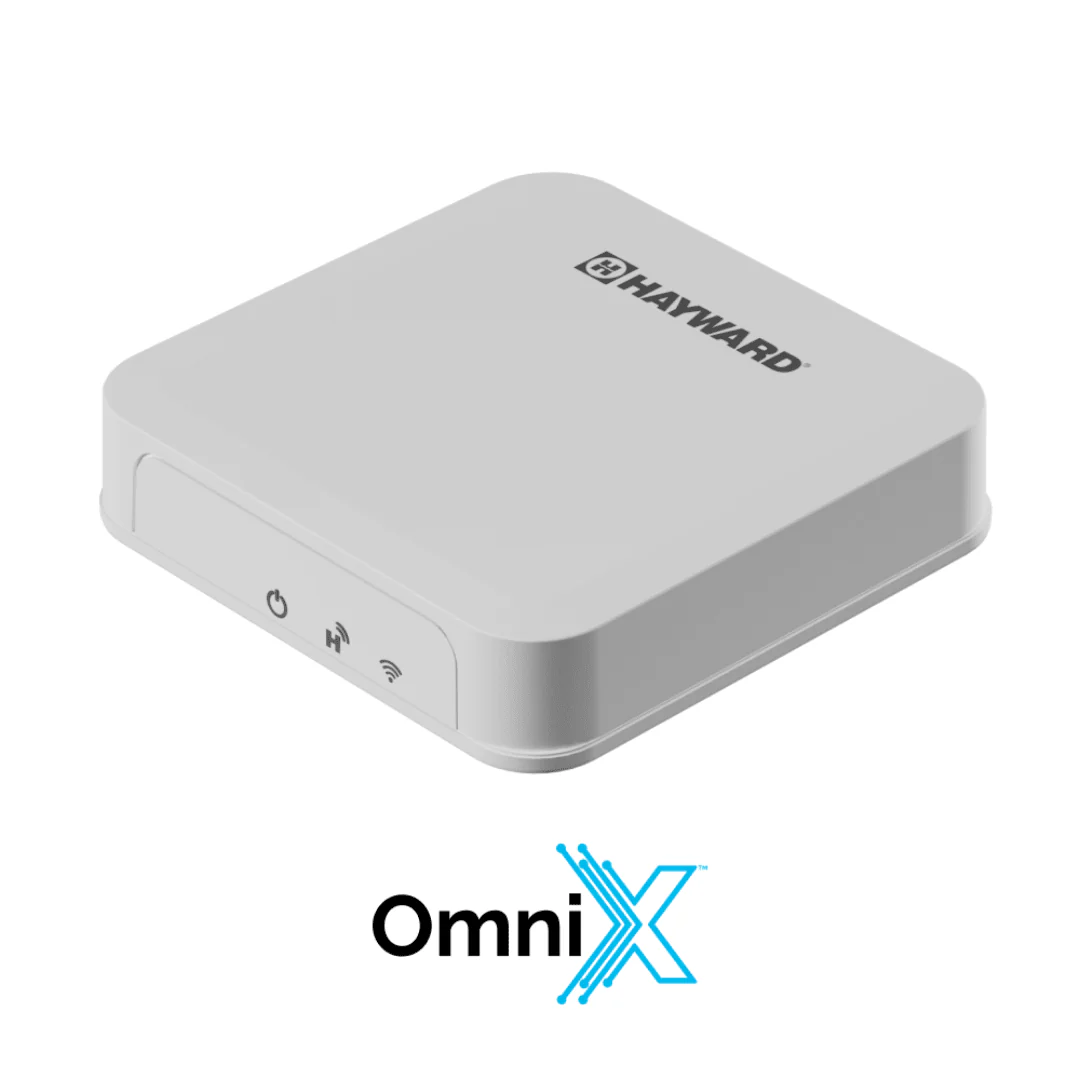

Optional OmniX Gateway: The OmniX Gateway is an add-on that connects the heater to Hayward’s OmniX app for remote monitoring and control from a smartphone. Without it, the heater can still be operated locally or through compatible wired automation.

Specifications:

• Active Defrost: No
• Application: New Construction, Aftermarket
• Boost Mode: No
• Brand: Hayward
• Circuit Amps: 5.5
• Compressor Speed: N/A
• Cooling Capability: No
• Fuel Type: Propane (LP)
• GTIN: 610377469395
• Heating Capacity (BTU/hr): 150,000
• Hertz - Heaters: 60 Hz
• Kilowatts: 44 kW
• Labor Warranty: None
• Low Ambient Operation: Yes
• Maximum Breaker Size (Amps): 15
• Parts Warranty: 1-year
• Phase Heaters: 1
• Pool Type: In-Ground
• Rear Clearance - Heaters: 6"
• Refrigerant: No
• Series Heaters: OmniX
• Shipping Dimensions: 30.6 " x 32.8 " x 33.3 "
• Shipping Weight: 129 lb
• Side Clearance - Heaters: 12"
• Silent Mode: No
• Voltage - Heaters: 120/240V

Support Documents:

• Brochure
• Energy Guide
• Owner's Manual
