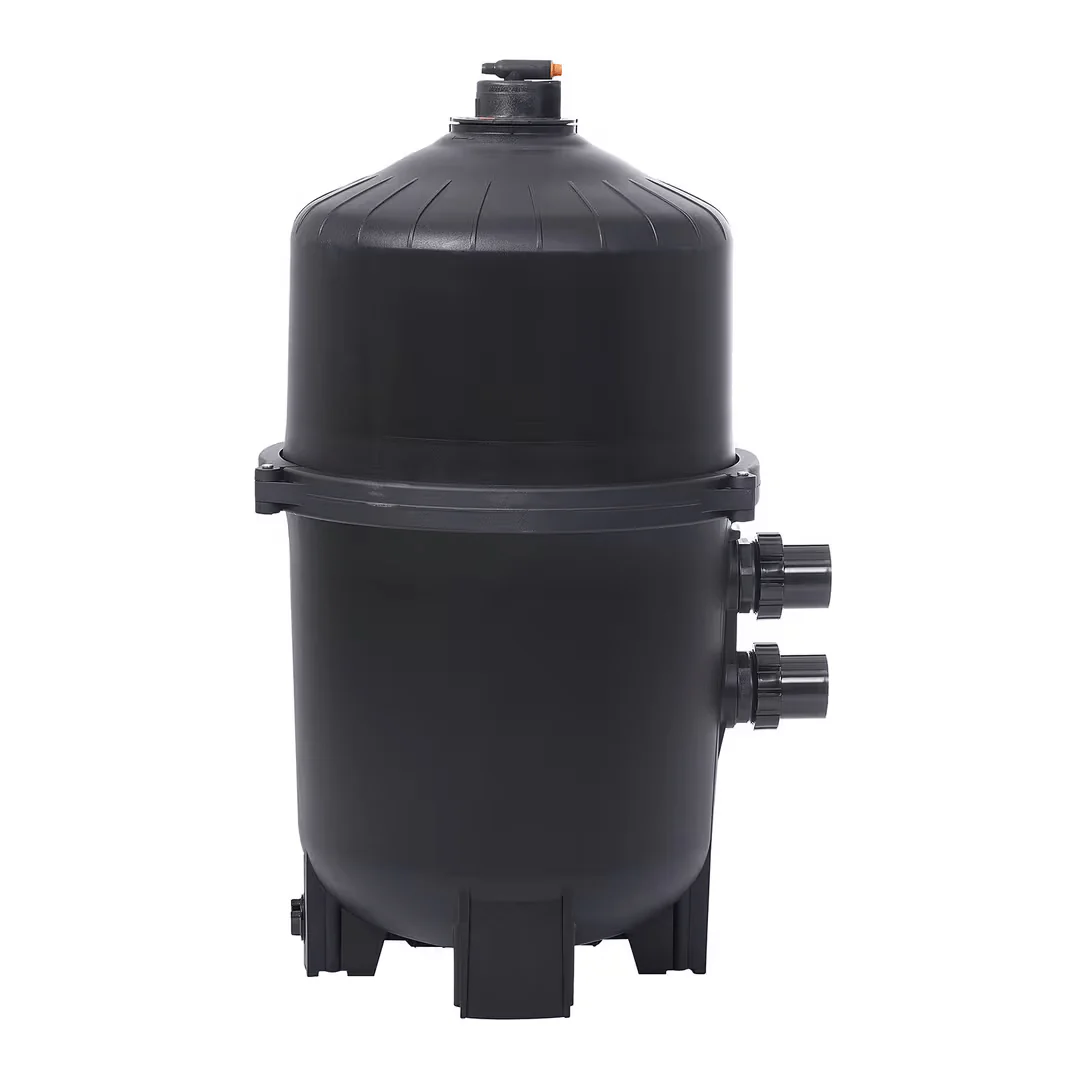

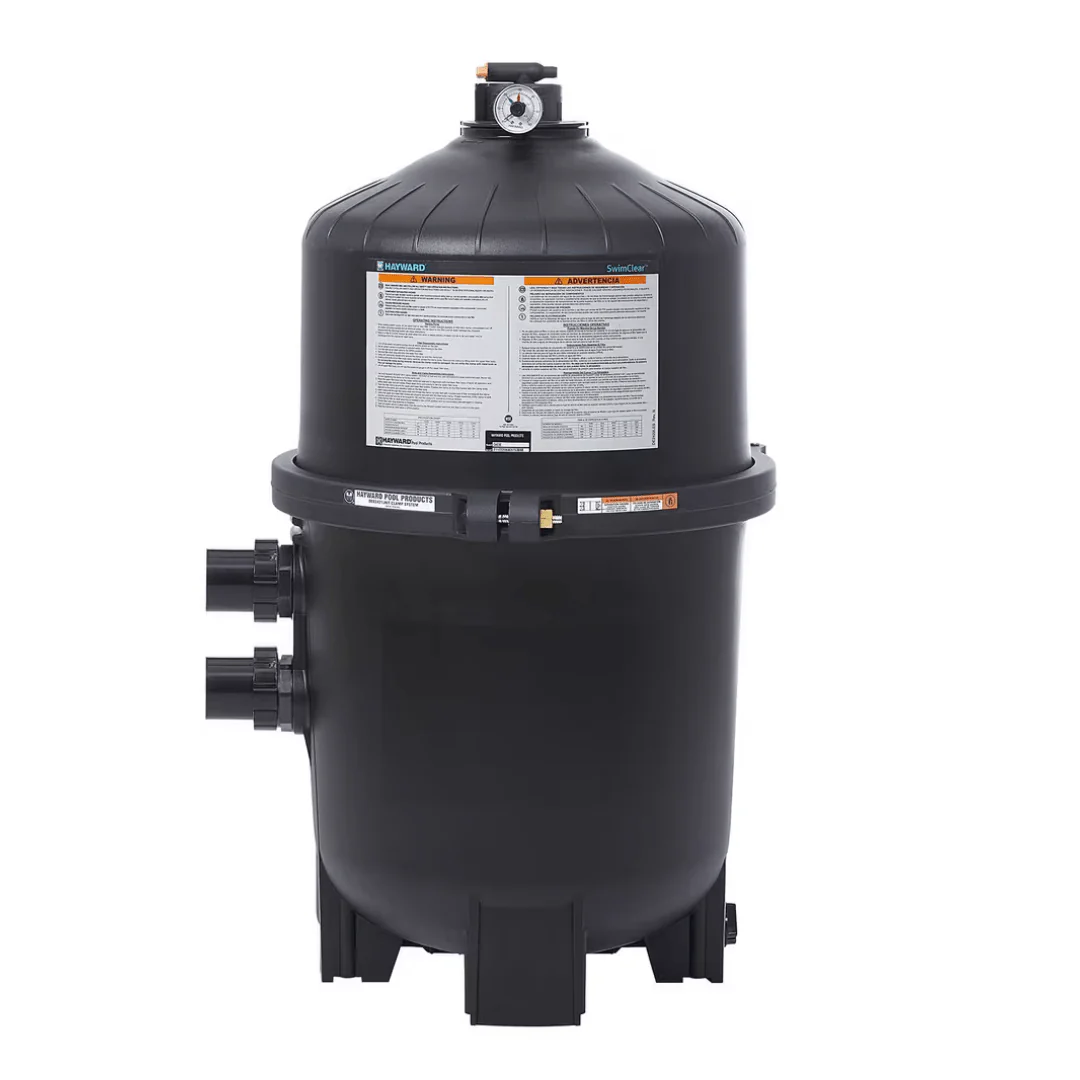

Hayward W3C3030 325 Sq Ft SwimClear Multi 4 Cartridge Filter

The Hayward W3C3030 SwimClear 325 sq. ft. Cartridge Pool Filter is a 4-cartridge filtration system used on inground pools. Capable of filtering particles as small as 30 microns, this means the filter is capable of pulling everything out that you can see with the human eye. The glass-reinforced co-polymer high-strength tank, one-piece clamp, and 2" black bulkhead unions enhance its durability and ease of installation.

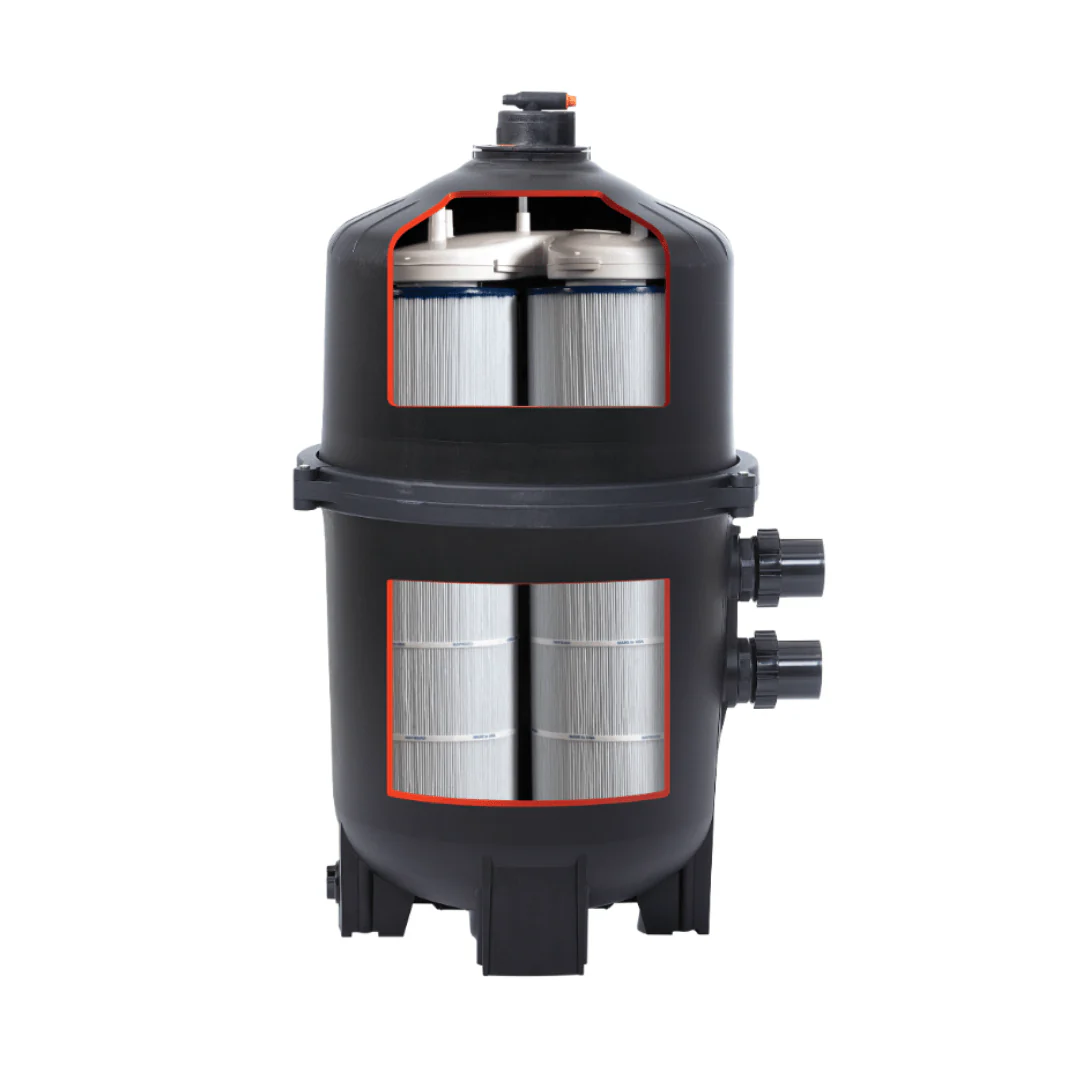

The Hayward SwimClear W3C3030 one-piece clamp design allows for easy removal and convenient access to each of the four cartridge filters. Internal air bleeding prevents air build-up from occurring, and its 1-1/2" drain ensures full draining during winterization. The Hayward W3C3030 SwimClear keeps pools sparkling and requires less maintenance for longer, better performance. It requires 50-1/2" vertical clearance for installation.

Specifications:

• Brand: Hayward
• Part Number: W3C3030 (C3030 Replaced by W3C3030)
• UPC: 0610377387903 / 610377387903
• Cartridge: Yes
• Clearance For Head Removal: 16 in
• Design Flow Rate: 150
• Drain Port Size: 1.5
• Effective Filtration Area: 325 SQFT
• Filter Type: Cartridge
• Footprint: 26 x 26 INCH
• Number Of Filter Elements: 4 (included)
• Pool Type: In Ground
• Pressure Gauge: Yes
• Product Dimensions: 34.5 " x 24 " x 24 "
• Product Height: 34.5 in
• Product Length: 24 in
• Product Weight: 60 lbs
• Product Width: 24 in
• Public Design Flow Rate: 122
• Residential Design Flow Rate: 150
• Series Filters: SwimClear
• Shipping Dimensions: 35.7 " x 24.6 " x 23.1 "
• Shipping Height: 35.7 in
• Shipping Length: 23.1 in
• Shipping Weight: 75 lb
• Shipping Width: 24.6 in
• Side Clearance - Filters: 18 in
• Tank Type: GFR
• Turnover 10 Hours: 73,200 GPM
• Turnover 8 Hours: 58,560 GPM

Support Documents:

• Product Brochure
• Owner's Manual
• Upgrade Instructions
