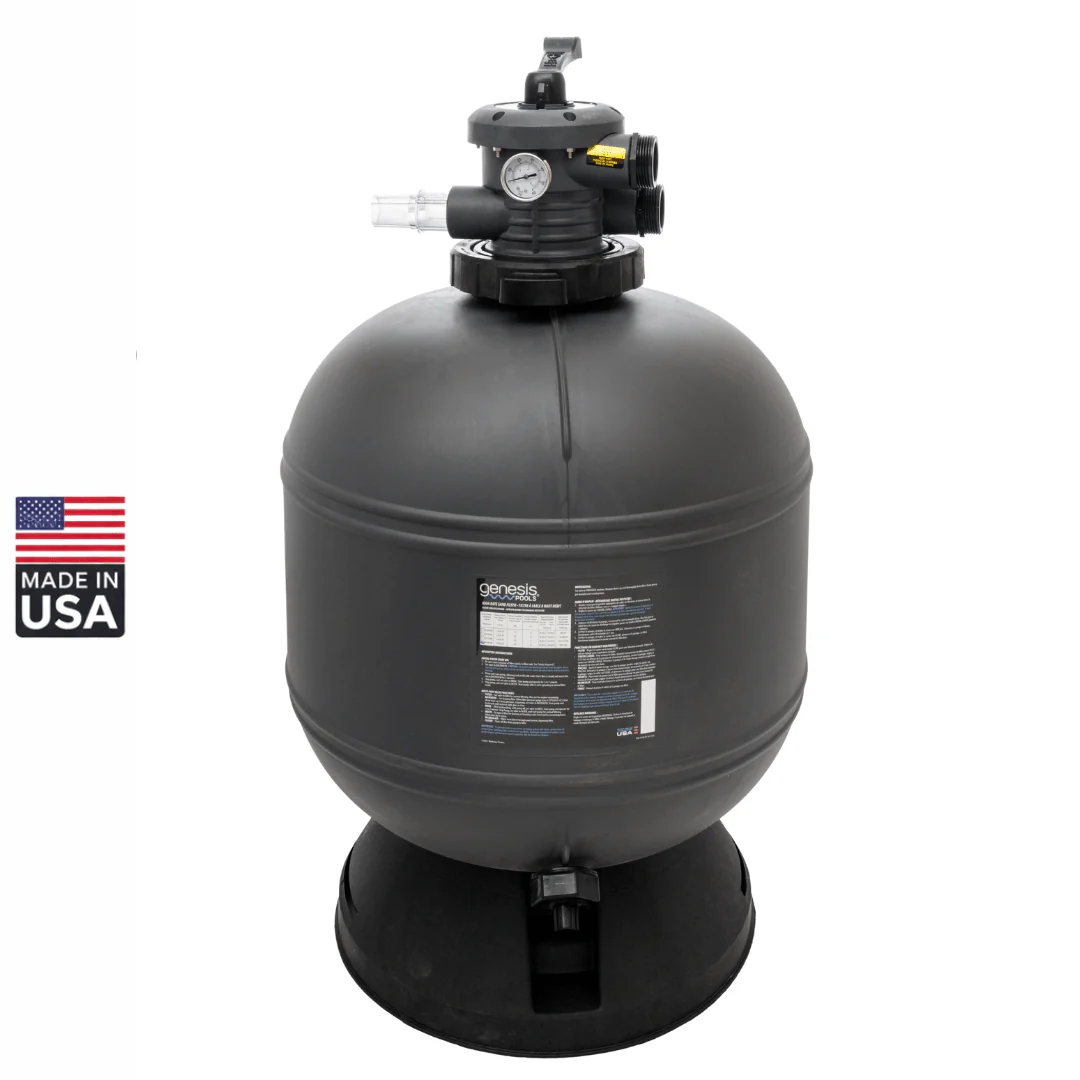

Genesis 26" 3.5 Sq Ft Top-Mount Sand Filter with 1.5" MPV, GPFS02629

Genesis top-mount sand filters are designed for extra sand holding capacity. Made of corrosion-proof polymeric thermoplastic, the Genesis sand filter offers the ideal combination of high performance and excellent water clarity. This filter is an excellent choice for above-ground or in-ground pools.

Key Features:

• Large capacity for extended filtration
• Roto-molded oval tank design ensures even pressure distribution for enhanced strength and longevity
• One-piece corrosion-proof body
• High-flow internal diffuser for uniform water distribution
• 7-function top-mount multi-port valve (1.5") with split-nut lock union
• 1.5" drain port
• Includes mounting base

Support Documents:

• Sell Sheet

Specifications:

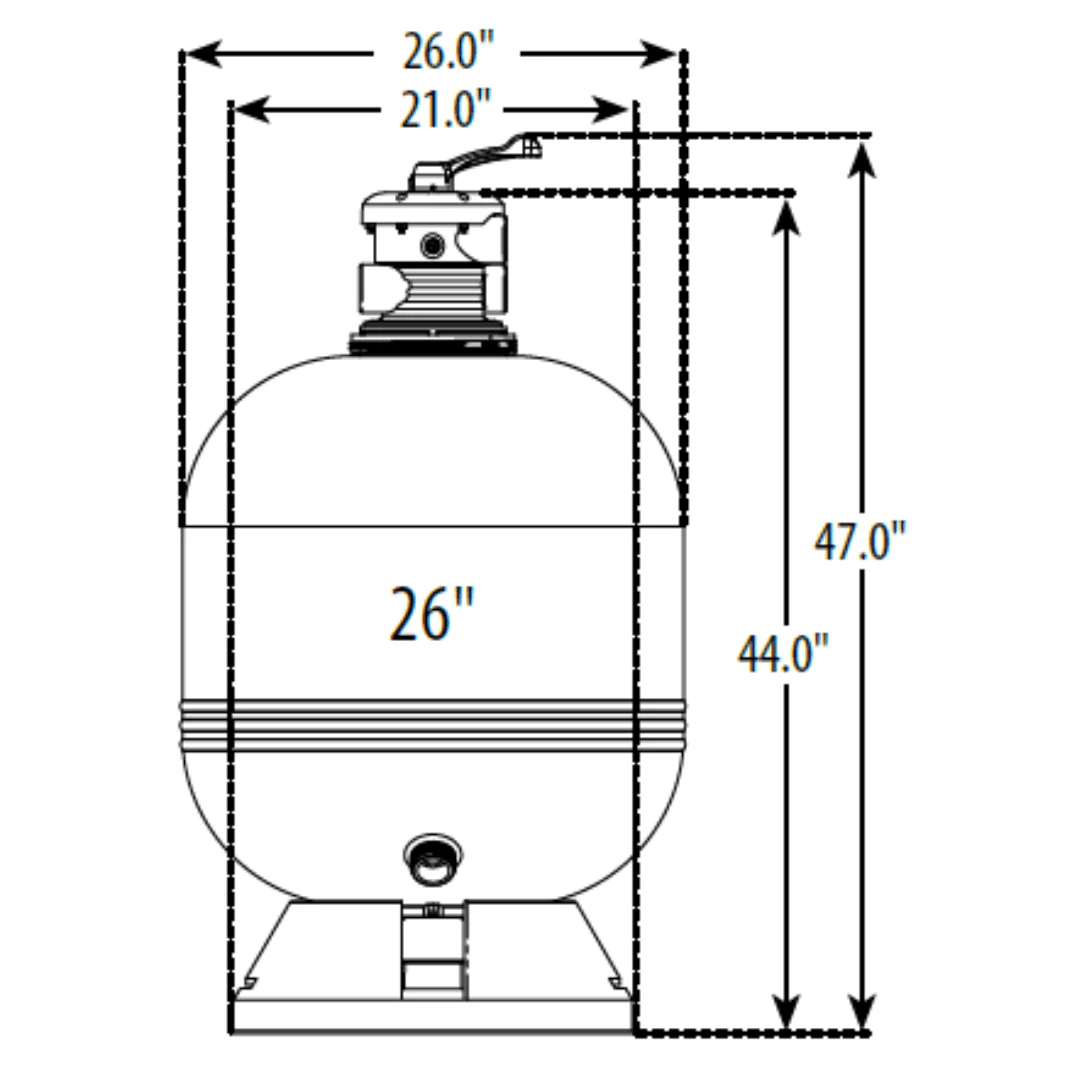

• 26" diameter Filter w/Modular Base
• Multi-Port Valve Style: 21 1⁄2" FPT Split-Nut
• Filtration Area: 3.5 sq. ft.
• Flow Rate: 270 GPM
• Pool Turnover (6-8-10 hrs.): 225,200 - 33,600 - 42,000
• Brand: Genesis Pools
• Application: Pool
• Shipping Dimensions: 38 x 29 x 26 inch
• Commercial, Residential, or Professional: Residential
• Design Flow Rate: 70 gal/min
• Weight: 71 pounds
• Filtration Area: 3.5 square feet
• Tank Diameter: 26 inches
• Warranty: 3 years
• UPC Code: 806105691552
