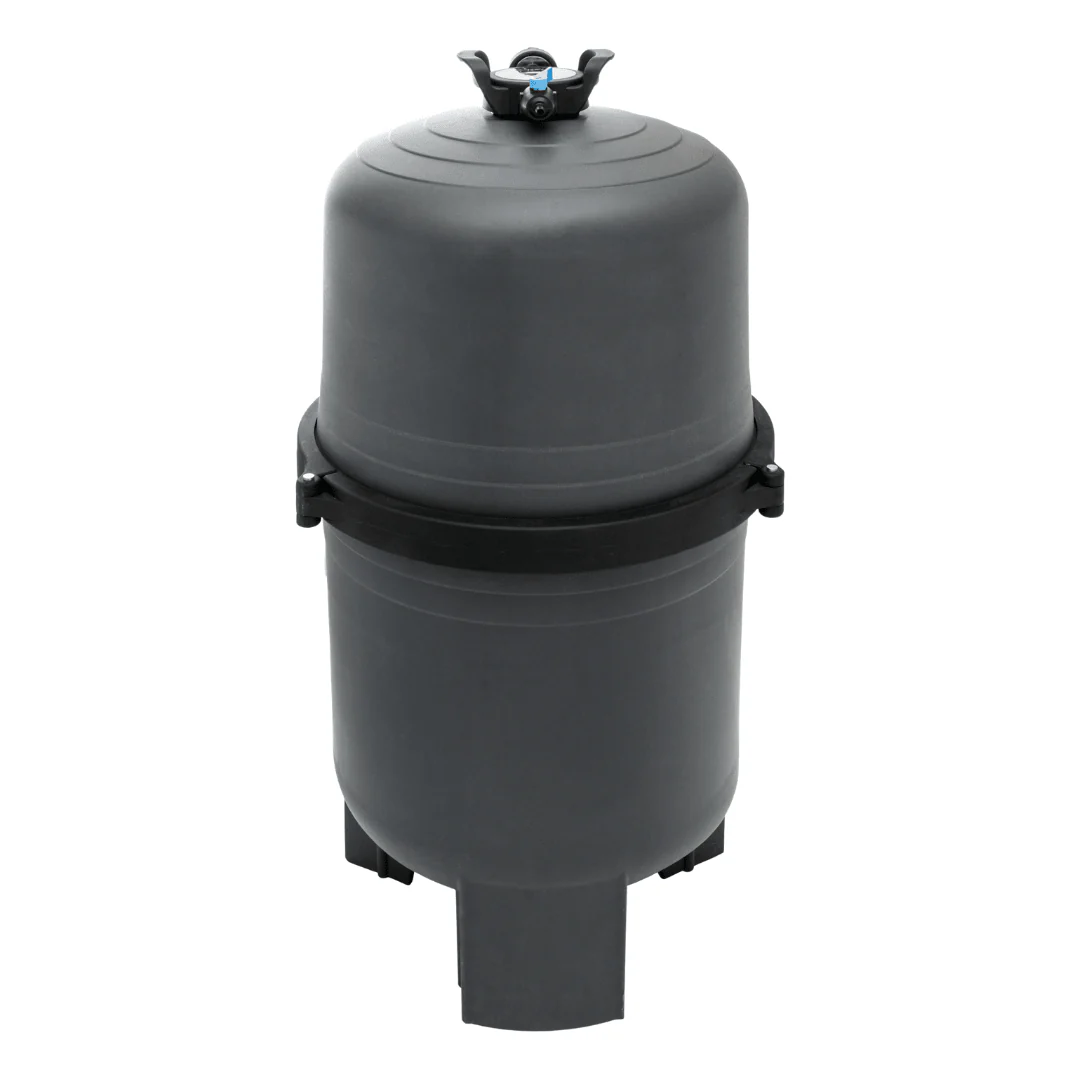

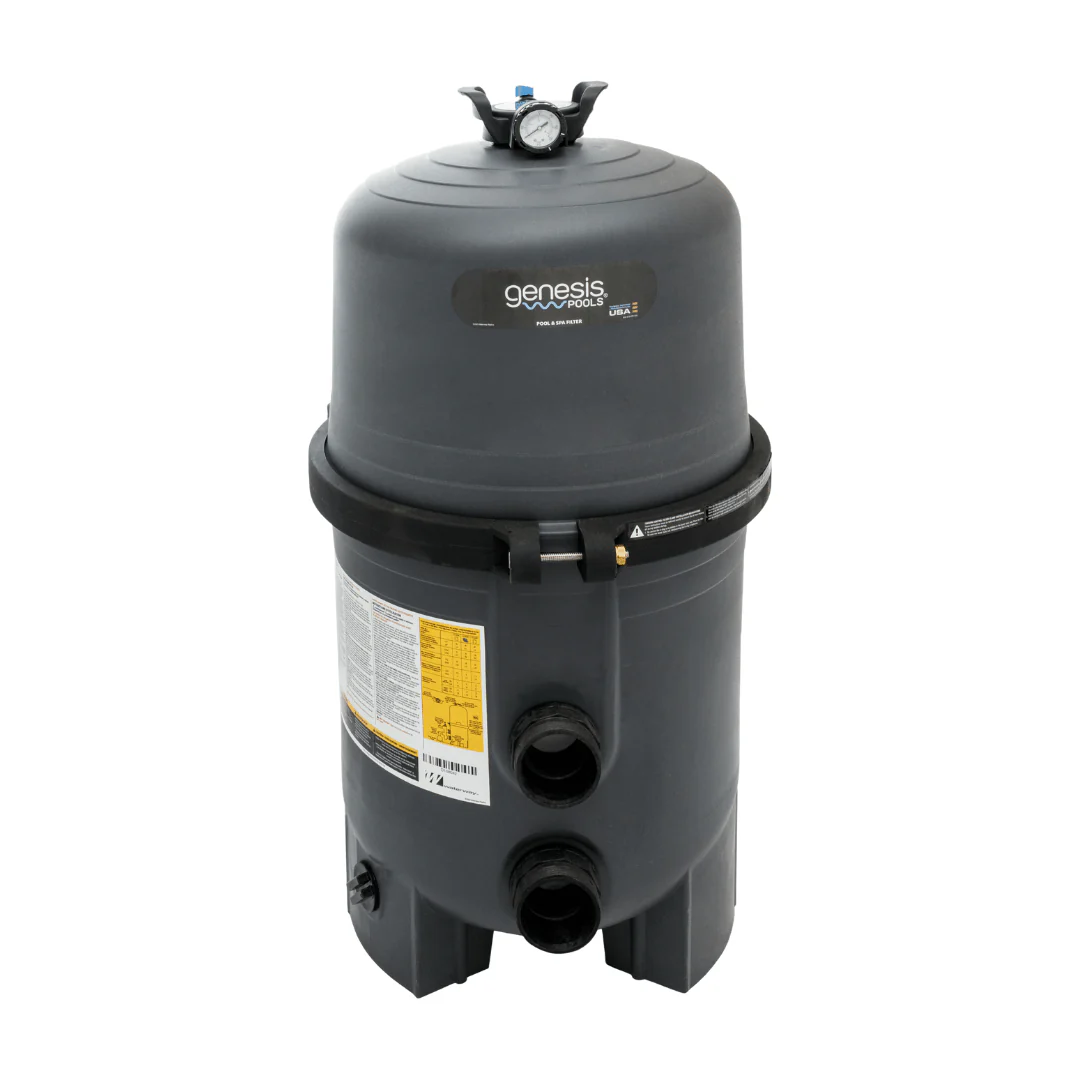

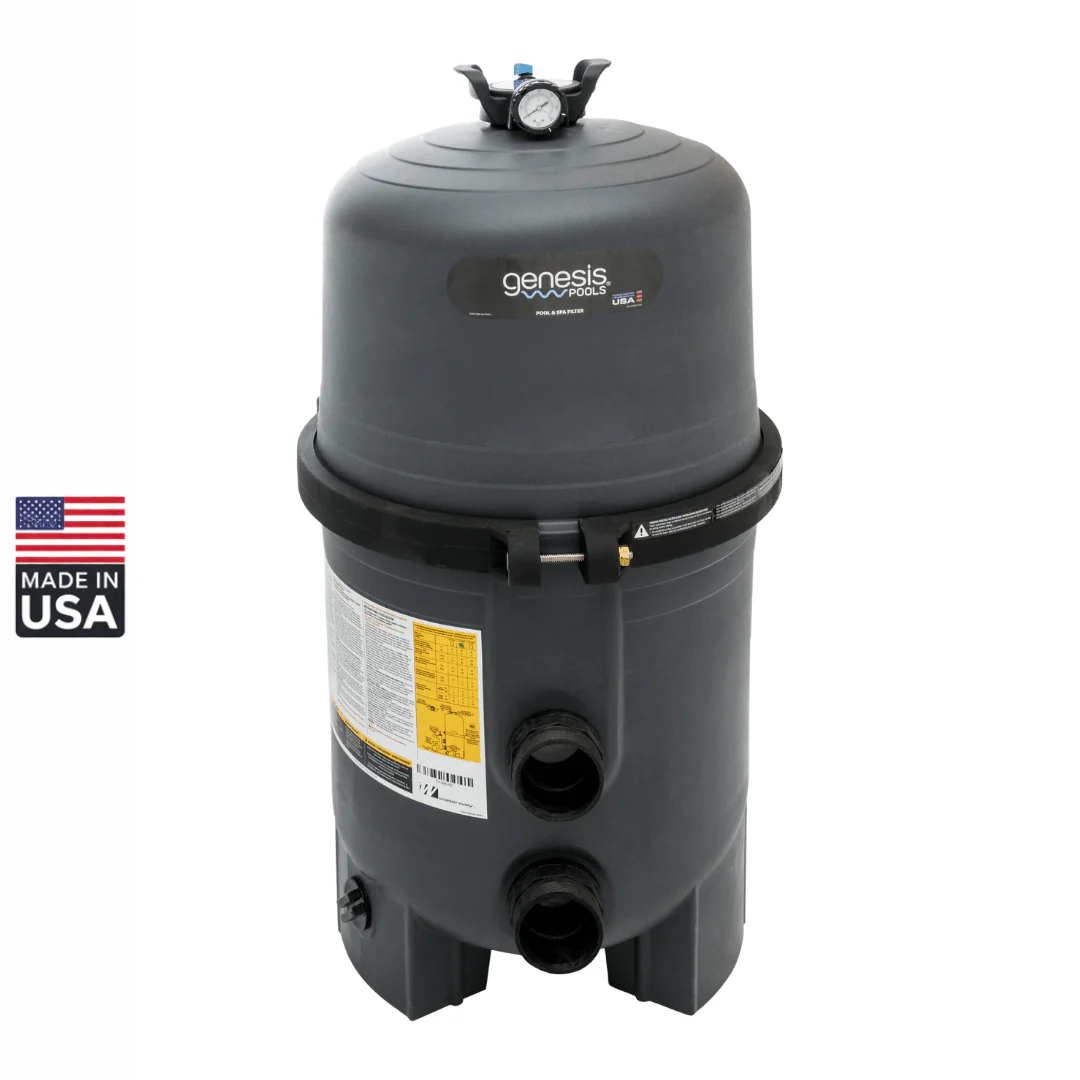

Genesis Crystal 48 Sq Ft Diatomaceous Earth D.E. (DE) Pool Filter, GP570004807

Designed for today's most demanding installations, the Genesis D.E. Filter sets the standard of performance and features for pool filters. The only D.E. filter on the market with 2.5" internal piping improves flow and reduces system noise when using 2.5" or 2" plumbing. With the 2" bottom clean-out port, the Genesis D.E. Filter will provide years of trouble-free operation and crystal clear, sparkling water.

Features:

• NSF Listed
• 2 1/2" internal piping
• Fiberglass reinforced polypropylene body for superior strength

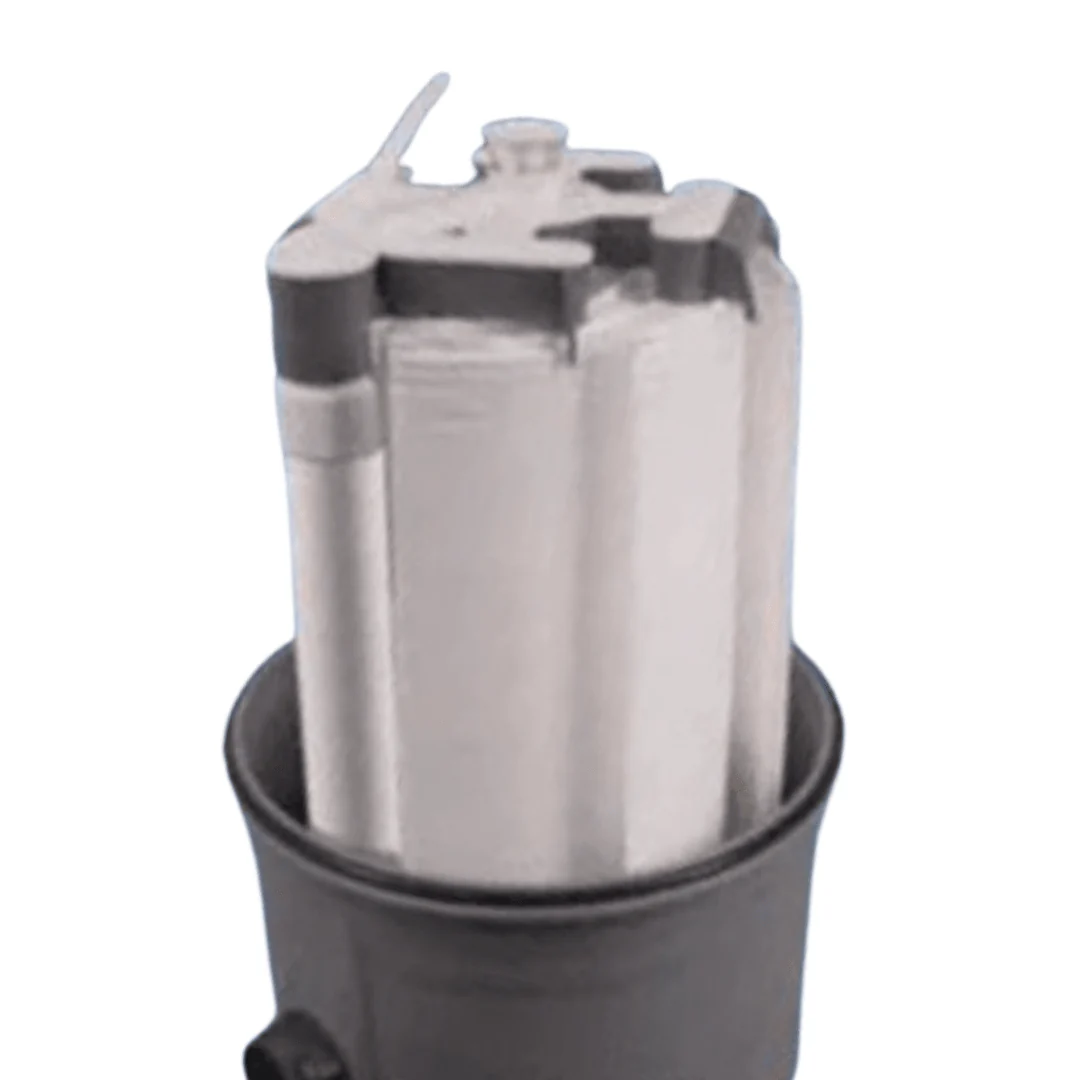

• Industry-proven D.E. grids
• “Start-Service” dial on stainless steel pressure gauge
• 1 1/2" bottom clean-out port
• 2 1/2" hi-temp PVC slide valve available
• 2 ½" x 2" Multi-Port Valves – available in slip or FPT
• Convertible to a cartridge by simply changing the internals
• Heavy Duty Manual Air Relief Valve
• Flexible & sturdy, 3 segmented band clamp
• Flow Rate: 96 GPM
• Pool Turnover (6 hrs.): 34,560
• Pool Turnover (8 hrs.): 46,080

• Ideal for in-ground pools up to 24,000 gallons

Support Documents:

• User Manual
• Sell Sheet

Specifications:

• Brand: Genesis Pools
• Application: Pool
• Shipping Dimensions: 44.5 x 23 x 25.25 inch
• Commercial, Residential, or Professional: Residential
• Design Flow Rate: 96 gal/min
• Weight: 79 pounds
• Filter Control Valve: GPWVD001 Multi-Port Valve (*sold separately)

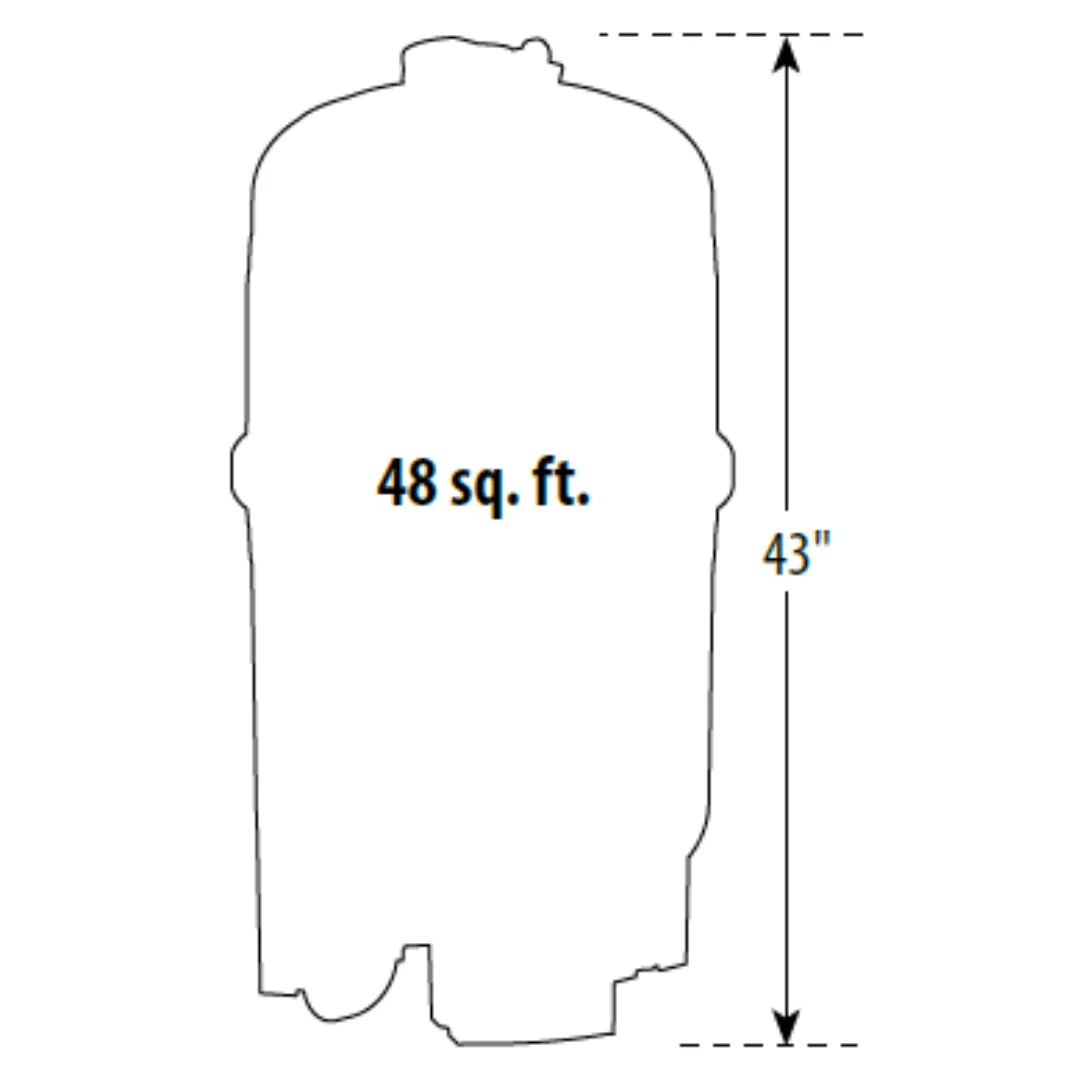

• Filtration Area: 48 square feet
• Material: Fiberglass, Polypropylene, or polypropene
• Warranty: 3 years
• UPC Code: 806105691538
