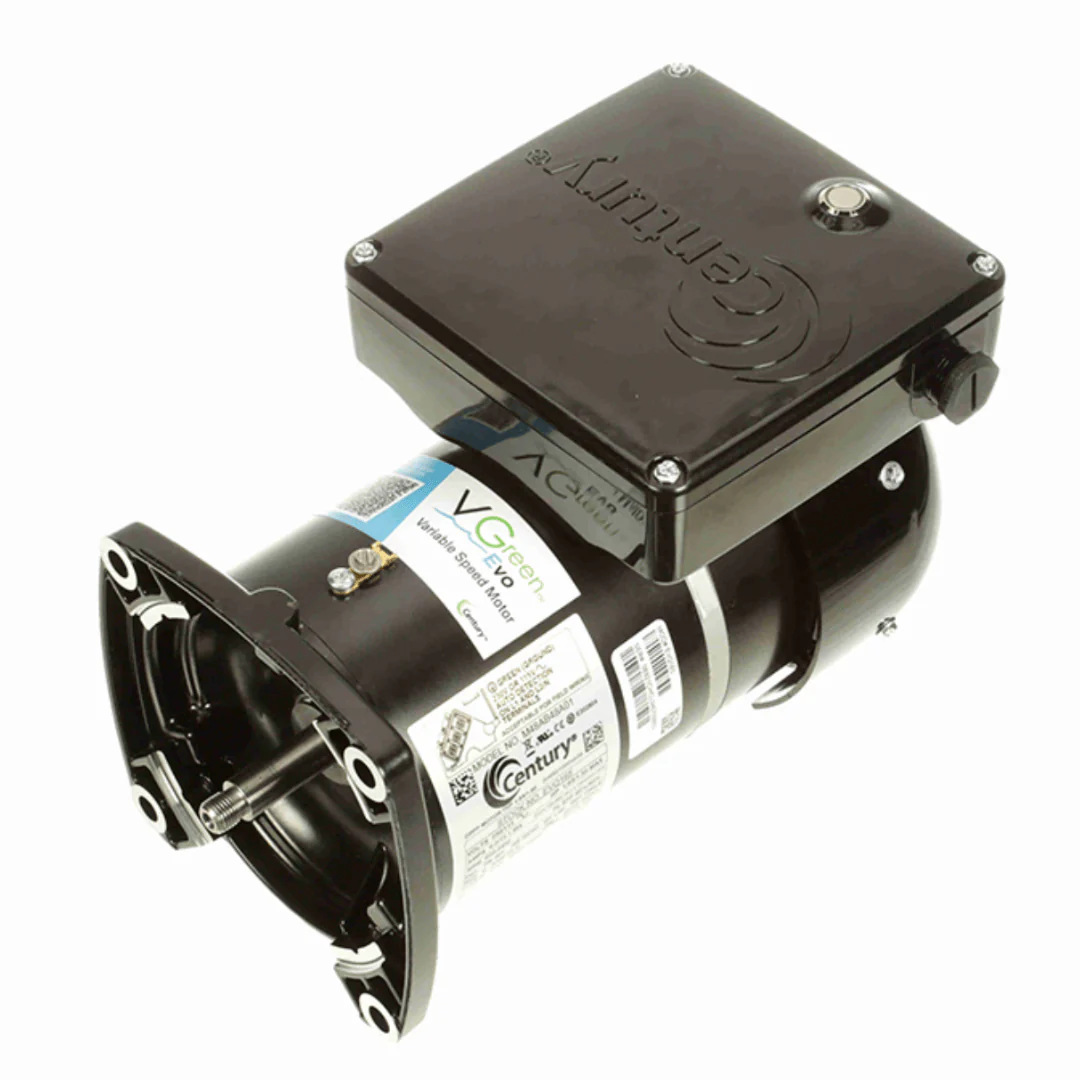

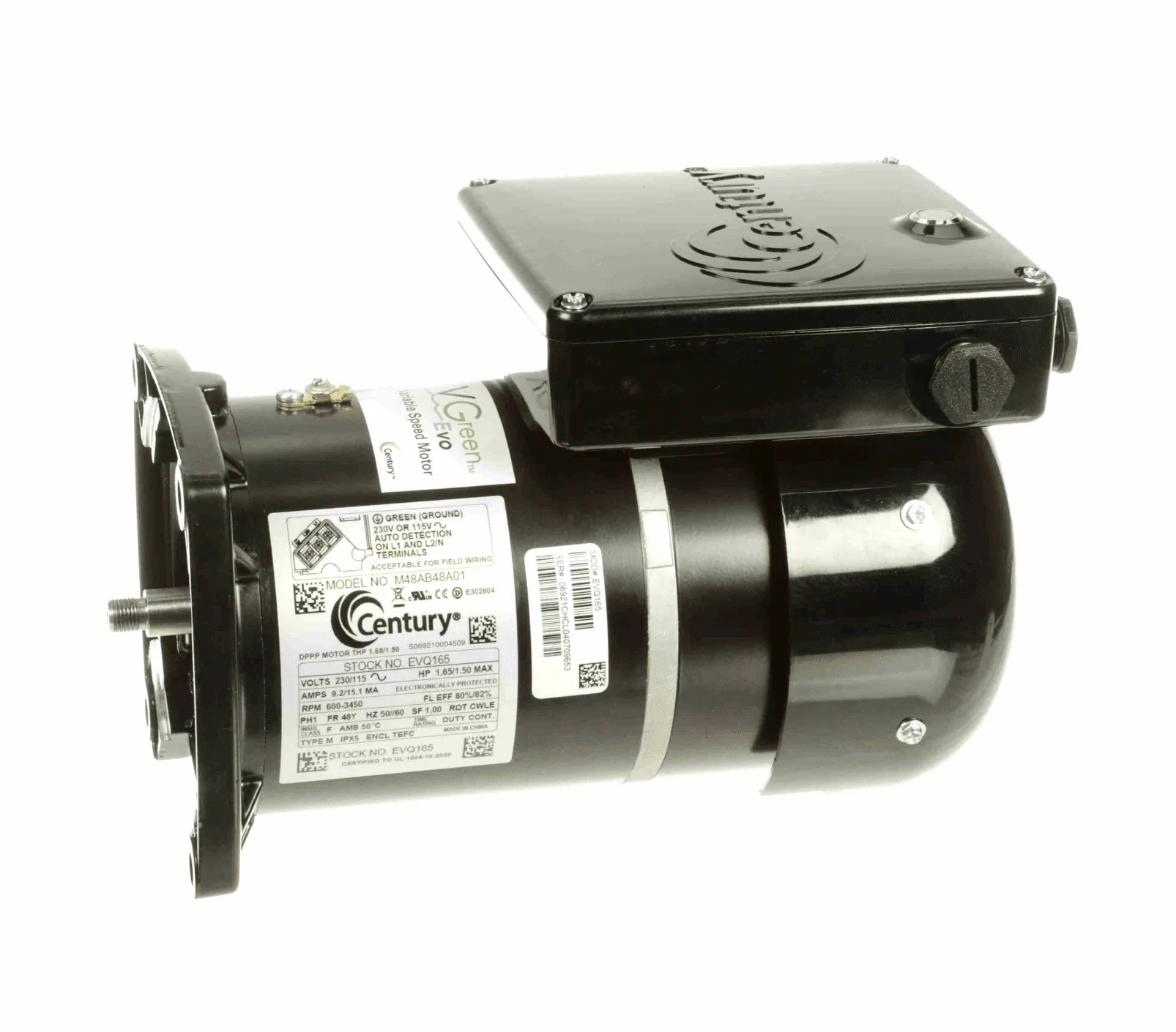

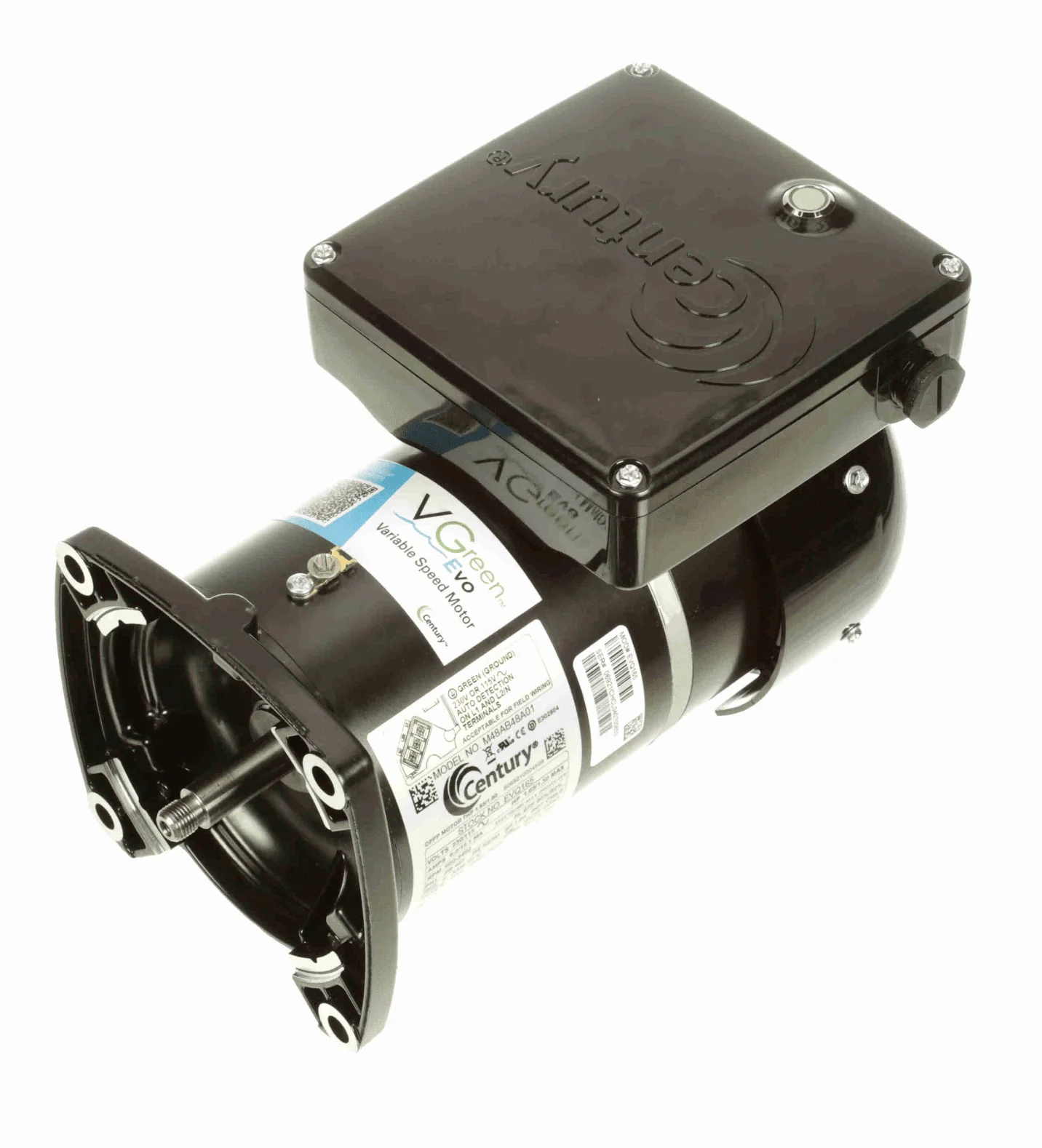

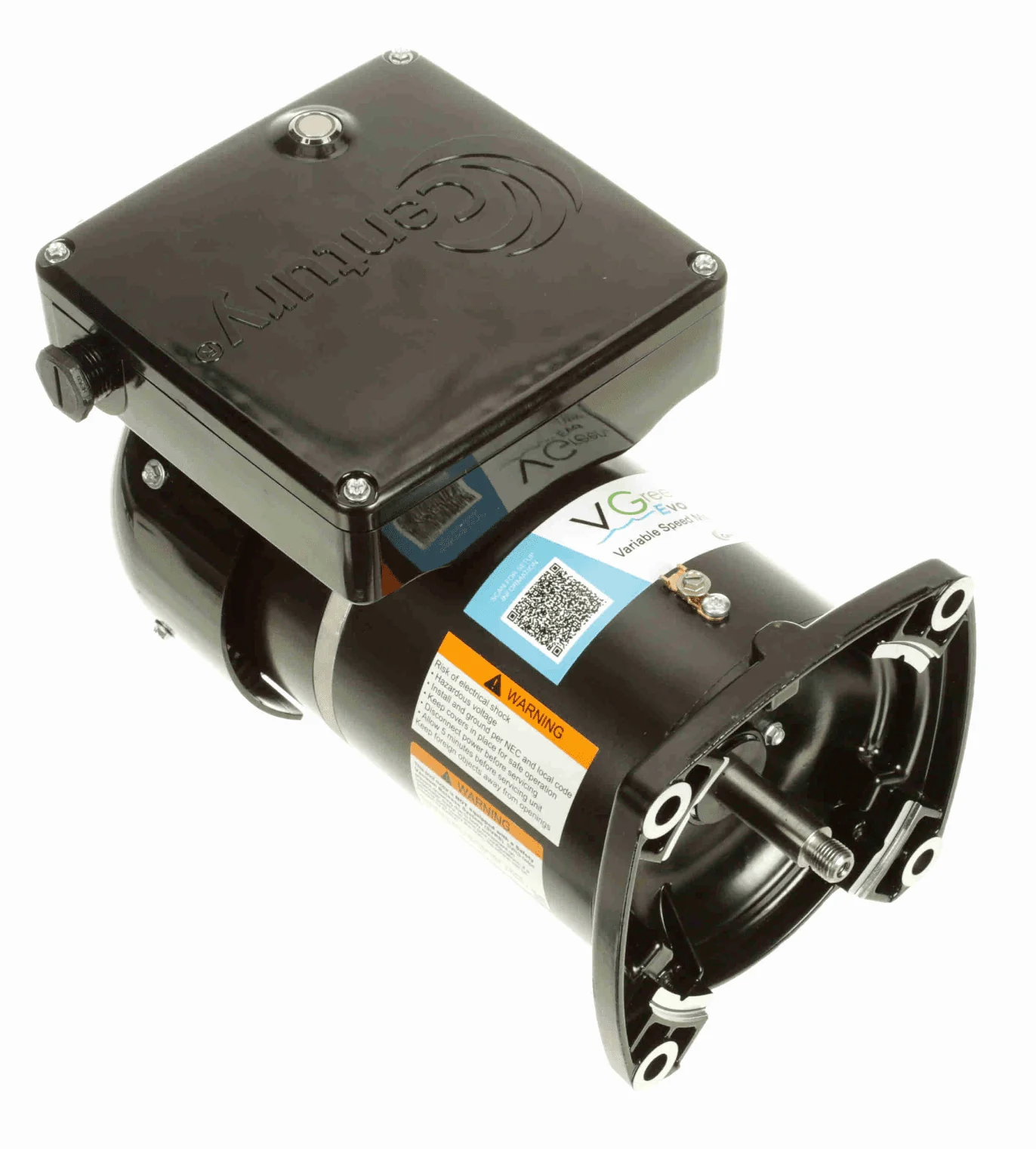

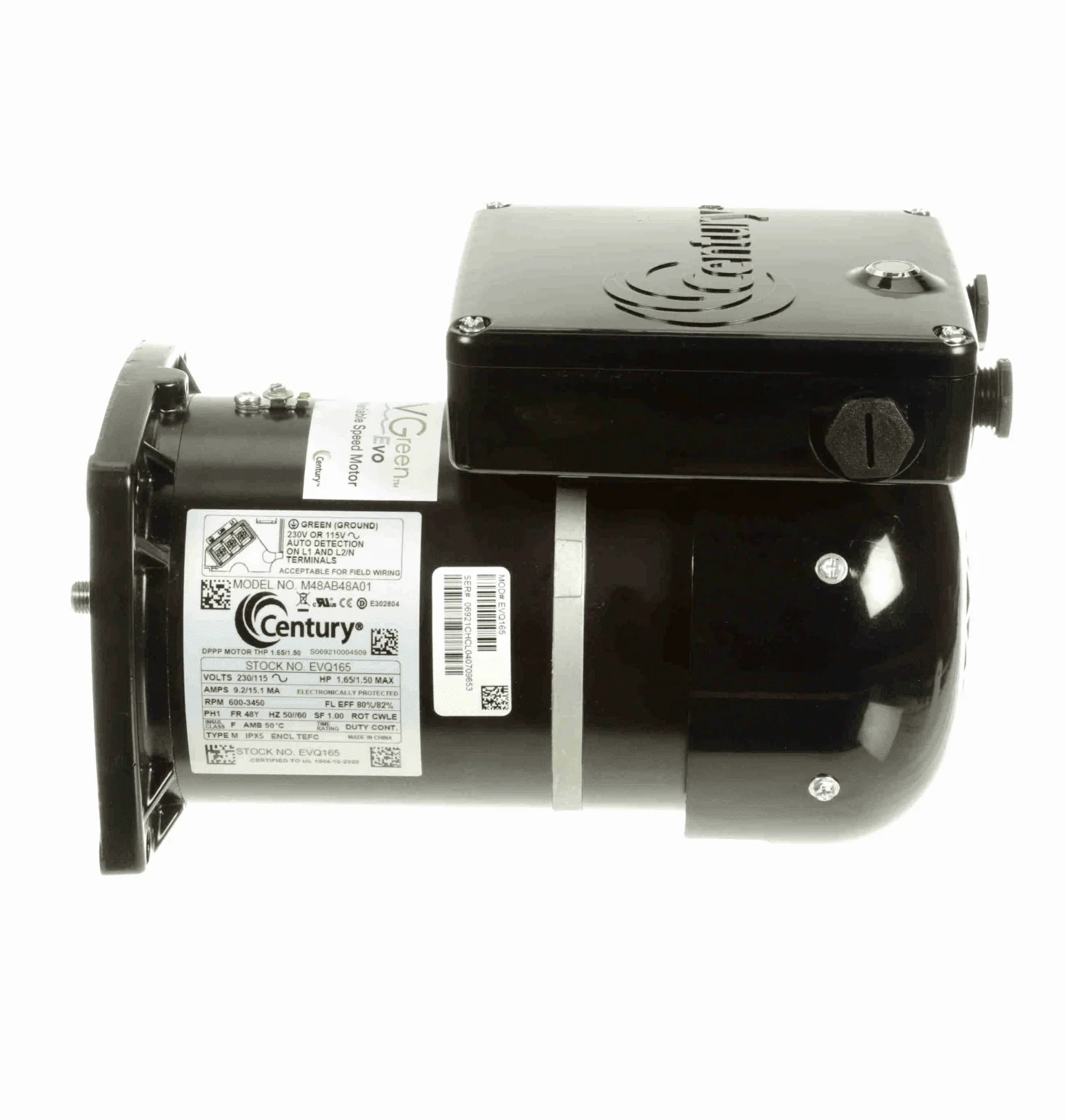

Century EVQ225 VGreen Variable Speed Pool Pump Motor, 2.25/1.5 HP, 1 Ph, 60 Hz, 230/115 V, 48Y Frame, TEFC
1 / 5
Century EVQ225 VGreen Variable Speed Pool Pump Motor, 2.25/1.5 HP, 1 Ph, 60 Hz, 230/115 V, 48Y Frame, TEFC
Century VGreen® Variable Speed Motors Pool Pump Motor, 2.25/1.50 HP, 1 Ph, 60 Hz, 230/115 V, 48Y Frame, TEFC - EVQ225
- 2.25 THP VGREEN EVO VS MOTOR SQ FLANGE
- 115/230 VOLT 600 /3450 RPM CENTURY
Features:
- Meets state efficiency standards for swimming pool replacement motors.
- Easy communication with most pool automation systems.
- Simplified user interface.
- Direct drop-in replacement motor.
- Protects against harsh conditions to extend motor life.
- Higher efficiency, lower operating costs.
Specifications:
- Phase: 1
- Output HP: 2.25/1.50 Hp
- Output KW: 1.7 kW
- Voltage: 230/115 V
- Speed: 600-3450 rpm
- Service Factor: 1
- Frame: 48Y
- Enclosure: Totally Enclosed
- Fan Cooled
- Thermal Protection: Automatic
- Ambient Temperature: 50 °C
- Frequency: 60 Hz
- Current: 13.5/17.4 MAX A
- Duty: Continuous
- Insulation Class: F
- UL: Recognized
- CSA: N
- CE: Y
- Number of Speeds: VAR
- Spec details
$227.50
Original: $649.99
-65%Century EVQ225 VGreen Variable Speed Pool Pump Motor, 2.25/1.5 HP, 1 Ph, 60 Hz, 230/115 V, 48Y Frame, TEFC—
$649.99
$227.50Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Century VGreen® Variable Speed Motors Pool Pump Motor, 2.25/1.50 HP, 1 Ph, 60 Hz, 230/115 V, 48Y Frame, TEFC - EVQ225
- 2.25 THP VGREEN EVO VS MOTOR SQ FLANGE
- 115/230 VOLT 600 /3450 RPM CENTURY
Features:
- Meets state efficiency standards for swimming pool replacement motors.
- Easy communication with most pool automation systems.
- Simplified user interface.
- Direct drop-in replacement motor.
- Protects against harsh conditions to extend motor life.
- Higher efficiency, lower operating costs.
Specifications:
- Phase: 1
- Output HP: 2.25/1.50 Hp
- Output KW: 1.7 kW
- Voltage: 230/115 V
- Speed: 600-3450 rpm
- Service Factor: 1
- Frame: 48Y
- Enclosure: Totally Enclosed
- Fan Cooled
- Thermal Protection: Automatic
- Ambient Temperature: 50 °C
- Frequency: 60 Hz
- Current: 13.5/17.4 MAX A
- Duty: Continuous
- Insulation Class: F
- UL: Recognized
- CSA: N
- CE: Y
- Number of Speeds: VAR
- Spec details
