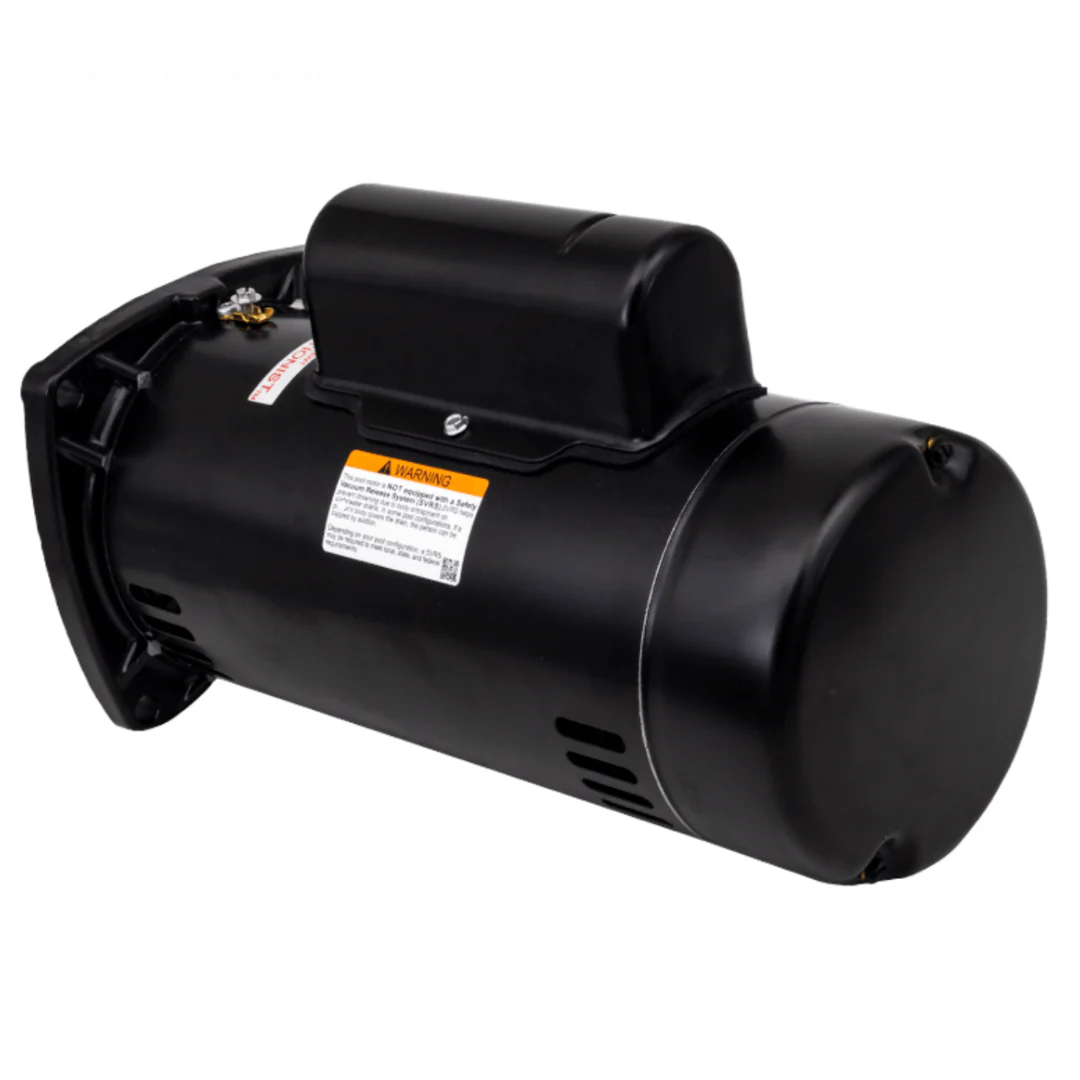

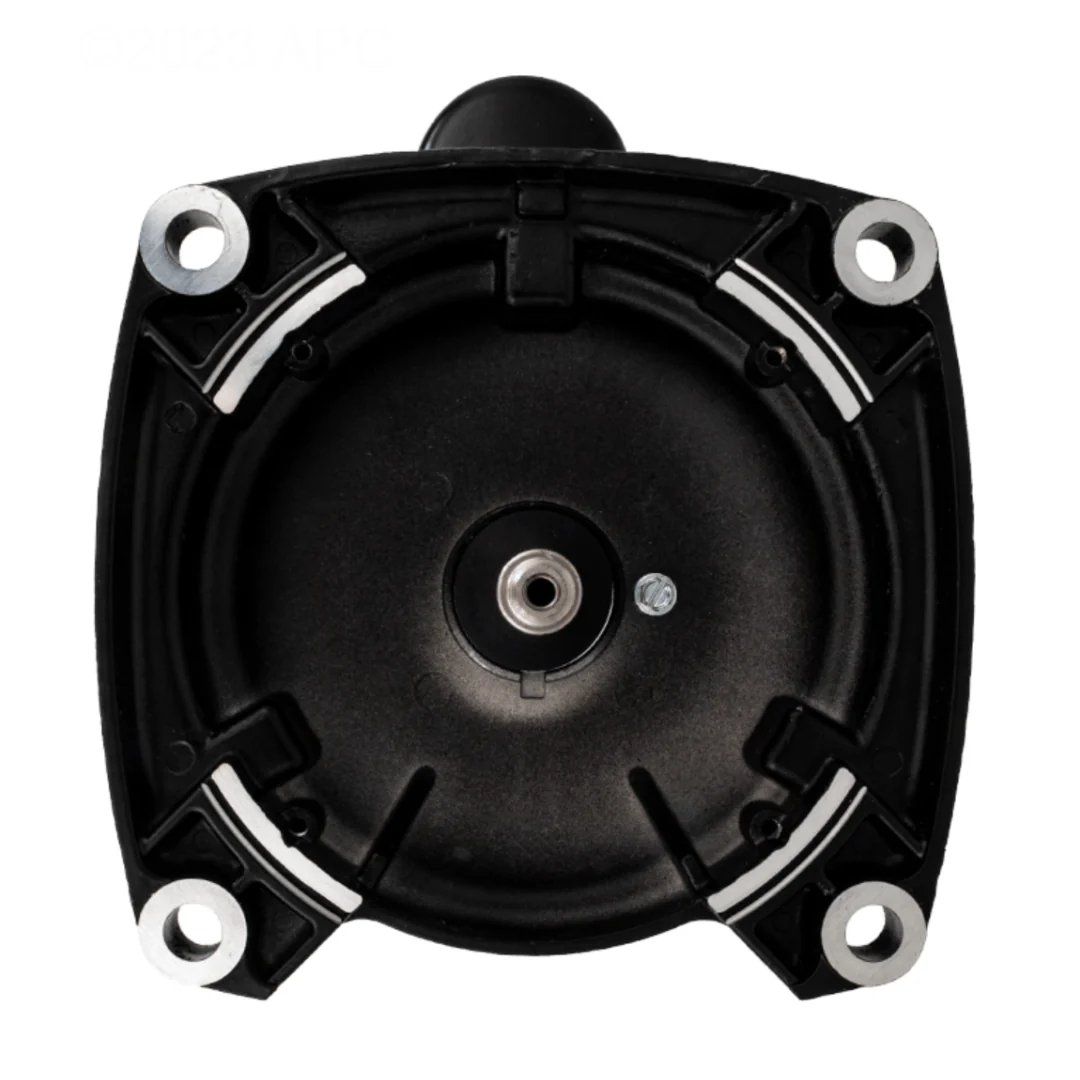

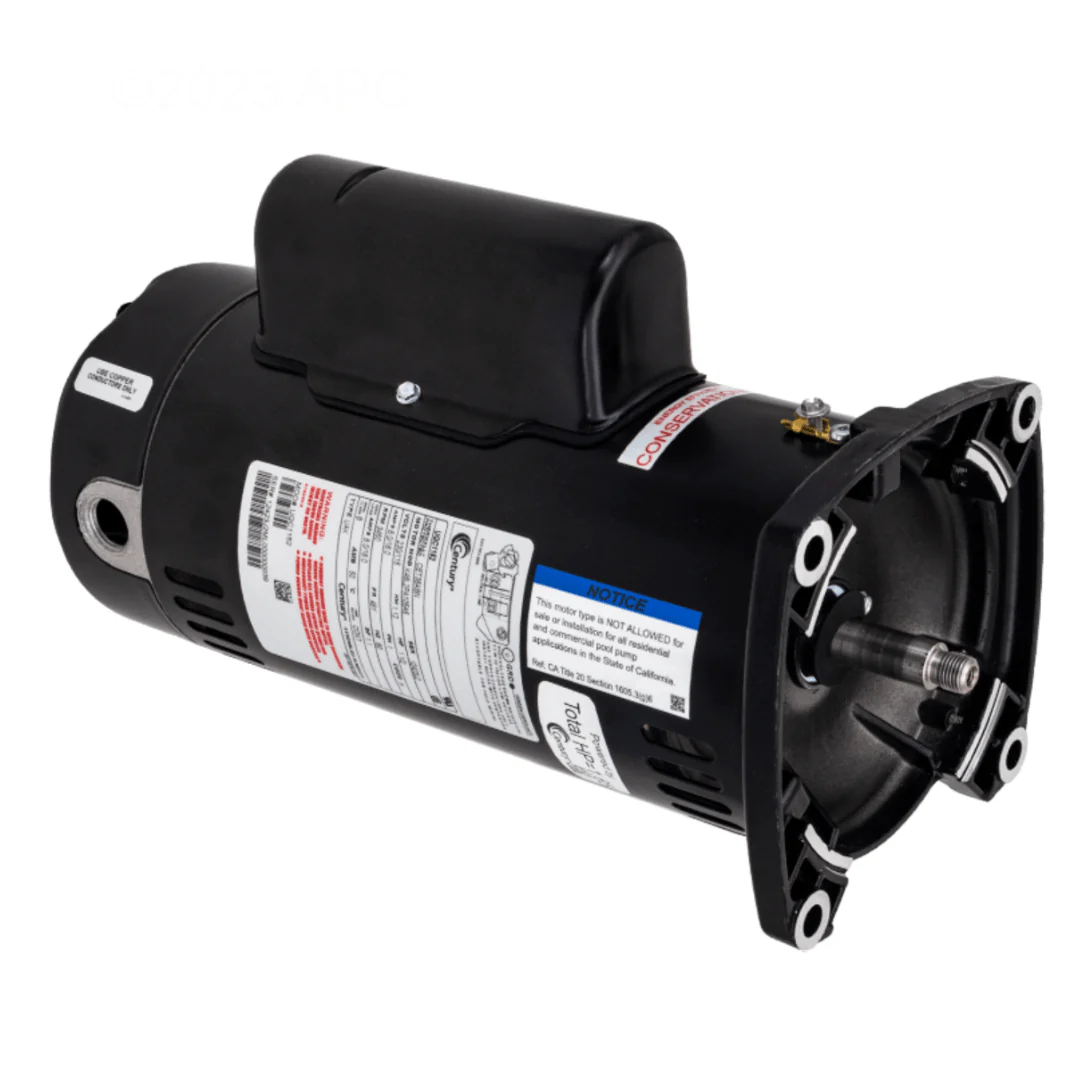

Century UQC1152 Centurion 1.5 HP 115/230V Square Flange Up-Rated Two-Compartment Motor
Century UQC1152 Square Flange Up-Rated Two-Compartment Pool Filter Motor; 1.5 HP, 3450 RPM, 115/230 V, 48Y, Threaded Shaft
- Low service factor
- Energy-efficient "Conservationist™" motor
- 1/2-20 UNF-2A RH and 1/4-20 UNC-2B LH threaded shaft
Used On:
- Hayward Max-Flo SP1800X Pump Parts
- Hayward Super Pump SP1600X Pump Parts
- Jacuzzi L Series Pump Parts
- Jacuzzi PH and UPH Pump Parts
- Jacuzzi RC Pump Parts
- Jacuzzi Ring-Lok Pump Parts
- Jandy HHP/HHPU Pump Parts
Specifications:
| Ambient Temperature | 50 deg C |
| Application | Many Sta-Rite®, Red Jacket, Pac Fab, and American Products |
| Bearing Type | Sealed Ball |
| Brand | Regal Beloit |
| Diameter | 5-5/8 Inch |
| Duty Cycle | Continuous |
| EfficiencyG roup | High |
| Enclosure Design | Open Dripproof |
| Finish Color | Satin Black |
| Flange Type | Square |
| Frame | 48Y |
| Frequency Rating | 60 Hz |
| Full Load Amps | 16/8 A |
| HP | 1.5 |
| Insulation Class | B |
| Item | Two-Compartment Pool Filter Motor |
| Motor Design | Capacitor Start/Run |
| Motor Shaft Rotation | CCWPE |
| Motor Thermal Protection | Auto |
| Mounting Type | C-Face |
| Number of Speed | 1-Speed |
| Overall Length | 13.25 Inch |
| Phase | 1-Phase |
| RPM | 3450 |
| Service Factor | 1.10 |
| Shaft Design | Threaded |
| Shaft Diameter | 5/8 Inch |
| Shaft Material | 303 Stainless Steel |
| Standards Approvals | UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341) |
| Sub Brand | Century® |
| Thrust Horsepower | 1.65 |
| Type | Up-Rated, UAK |
| Voltage Rating | 115/230 V |
$119.00
Original: $339.99
-65%Century UQC1152 Centurion 1.5 HP 115/230V Square Flange Up-Rated Two-Compartment Motor—
$339.99
$119.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Century UQC1152 Square Flange Up-Rated Two-Compartment Pool Filter Motor; 1.5 HP, 3450 RPM, 115/230 V, 48Y, Threaded Shaft
- Low service factor
- Energy-efficient "Conservationist™" motor
- 1/2-20 UNF-2A RH and 1/4-20 UNC-2B LH threaded shaft
Used On:
- Hayward Max-Flo SP1800X Pump Parts
- Hayward Super Pump SP1600X Pump Parts
- Jacuzzi L Series Pump Parts
- Jacuzzi PH and UPH Pump Parts
- Jacuzzi RC Pump Parts
- Jacuzzi Ring-Lok Pump Parts
- Jandy HHP/HHPU Pump Parts
Specifications:
| Ambient Temperature | 50 deg C |
| Application | Many Sta-Rite®, Red Jacket, Pac Fab, and American Products |
| Bearing Type | Sealed Ball |
| Brand | Regal Beloit |
| Diameter | 5-5/8 Inch |
| Duty Cycle | Continuous |
| EfficiencyG roup | High |
| Enclosure Design | Open Dripproof |
| Finish Color | Satin Black |
| Flange Type | Square |
| Frame | 48Y |
| Frequency Rating | 60 Hz |
| Full Load Amps | 16/8 A |
| HP | 1.5 |
| Insulation Class | B |
| Item | Two-Compartment Pool Filter Motor |
| Motor Design | Capacitor Start/Run |
| Motor Shaft Rotation | CCWPE |
| Motor Thermal Protection | Auto |
| Mounting Type | C-Face |
| Number of Speed | 1-Speed |
| Overall Length | 13.25 Inch |
| Phase | 1-Phase |
| RPM | 3450 |
| Service Factor | 1.10 |
| Shaft Design | Threaded |
| Shaft Diameter | 5/8 Inch |
| Shaft Material | 303 Stainless Steel |
| Standards Approvals | UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341) |
| Sub Brand | Century® |
| Thrust Horsepower | 1.65 |
| Type | Up-Rated, UAK |
| Voltage Rating | 115/230 V |
