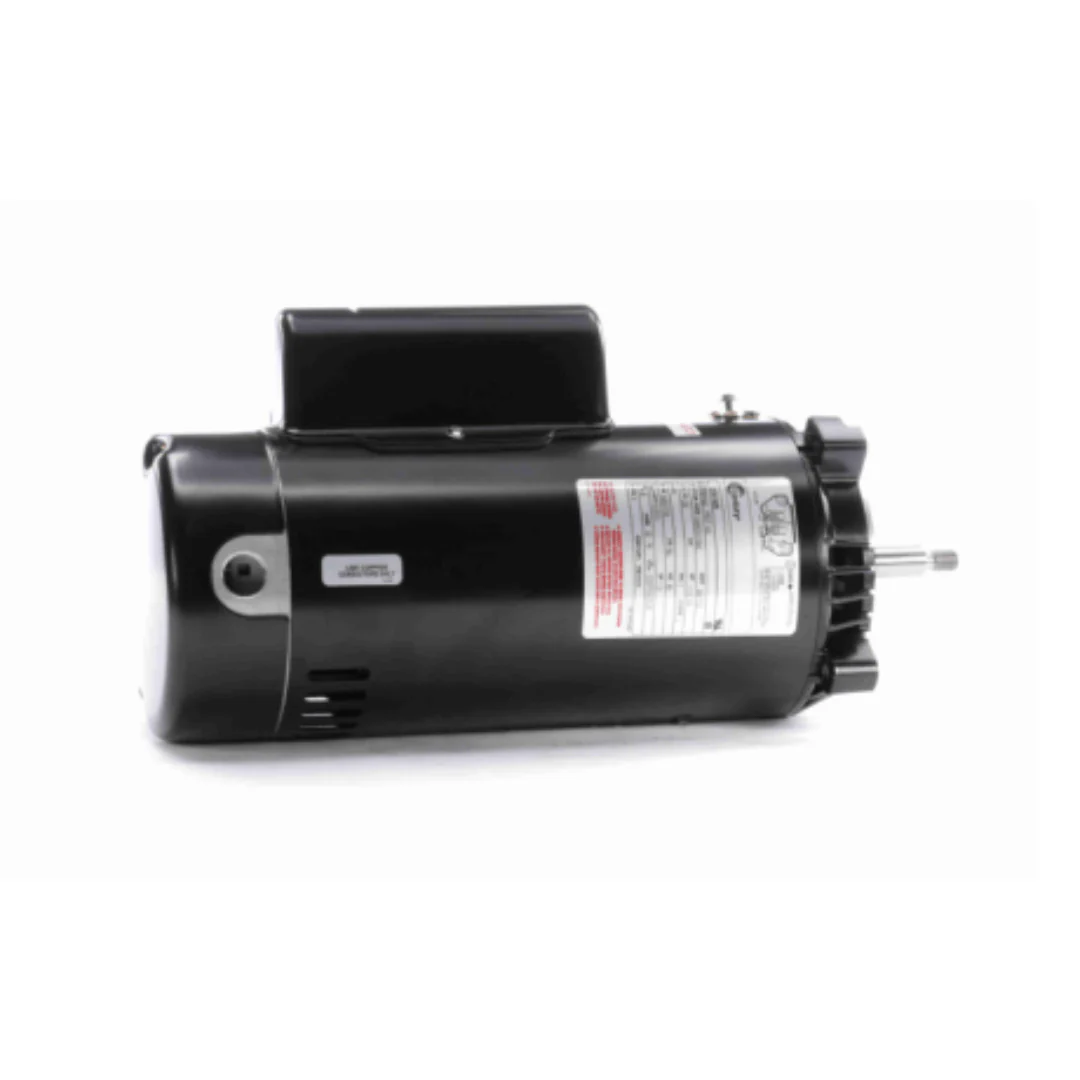

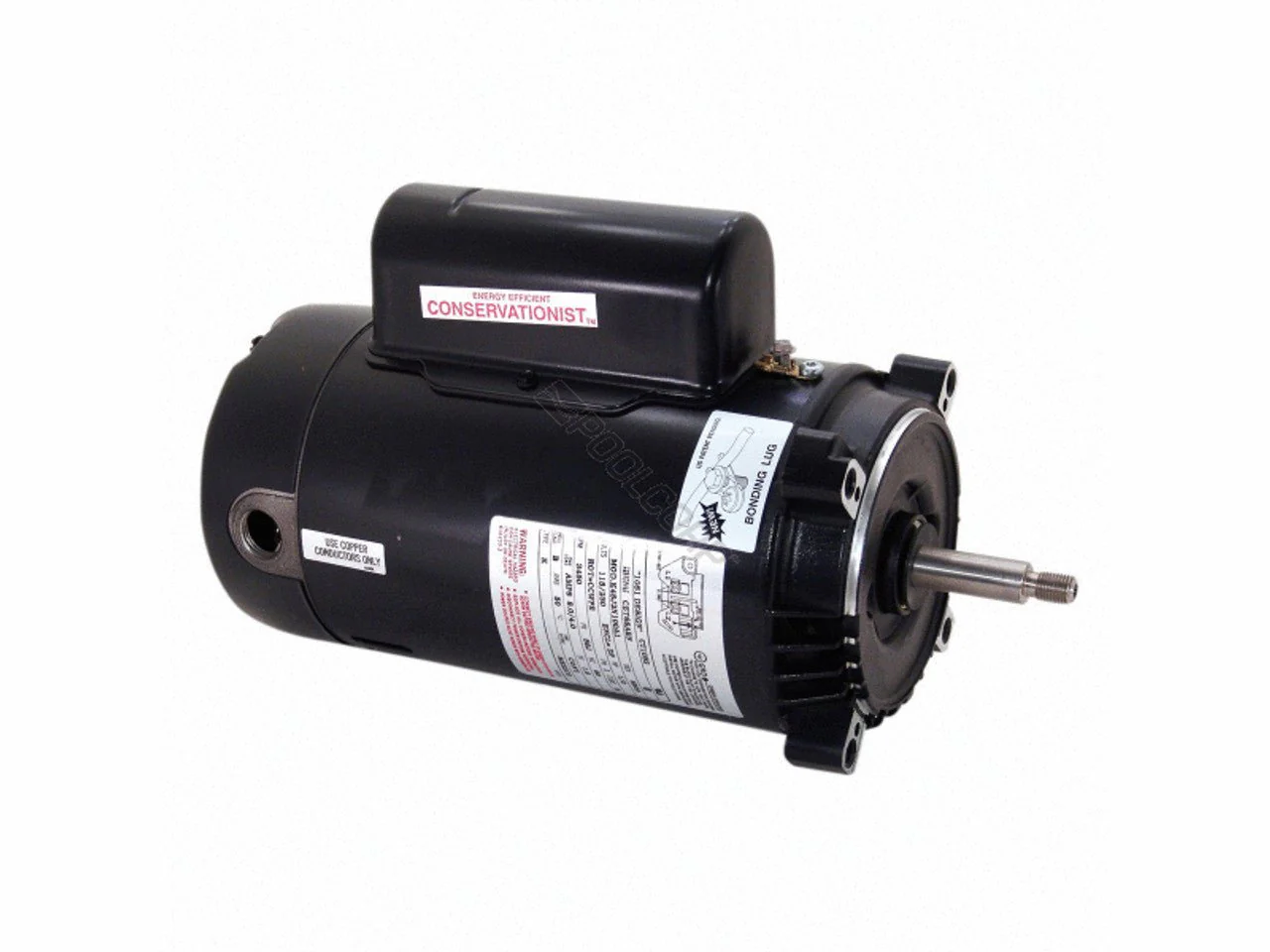

Century STS1152R Pool Pump Motor, 1 1/2,1/4 HP, 1 Ph, 60 Hz, 230 V, 3600 RPM, 56J Frame, ODP
1 / 2
Century STS1152R Pool Pump Motor, 1 1/2,1/4 HP, 1 Ph, 60 Hz, 230 V, 3600 RPM, 56J Frame, ODP
- Two Speed
- Sealed Switch Design
- All Copper Windings
- 50°C Ambient
- 304 Bearings Shaft End
- Energy Efficient
- Meets California Energy Commission Appliance Regulations 2008
- UL 1081 Design
- 303 Stainless Steel Shaft
- Threaded Shaft
Used On:
- Hayward Max-Flo II SP2700X Pump Parts )
- Jacuzzi Magnum Pump Parts
- Jandy HHP/HHPU Pump Parts
- Jandy JHP/JHPU Pump Parts
Specifications:
- Phase: 1
- Output HP: 1 1/2,1/4 Hp
- Output KW: 1.1 kW
- Voltage: 230 V
- Speed: 3450/1725 rpm
- Service Factor: 1.3
- Frame: 56J
- Enclosure: Open Drip Proof
- Thermal Protection: Automatic
- Ambient Temperature: 40 °C
- Frequency: 60 Hz
- Current: 9.0/3.3 A
- Duty: Continuous
- Insulation Class: B
- UL: Recognized
- CSA: Y
- Number of Speeds: 2
$182.00
Original: $519.99
-65%Century STS1152R Pool Pump Motor, 1 1/2,1/4 HP, 1 Ph, 60 Hz, 230 V, 3600 RPM, 56J Frame, ODP—
$519.99
$182.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Two Speed
- Sealed Switch Design
- All Copper Windings
- 50°C Ambient
- 304 Bearings Shaft End
- Energy Efficient
- Meets California Energy Commission Appliance Regulations 2008
- UL 1081 Design
- 303 Stainless Steel Shaft
- Threaded Shaft
Used On:
- Hayward Max-Flo II SP2700X Pump Parts )
- Jacuzzi Magnum Pump Parts
- Jandy HHP/HHPU Pump Parts
- Jandy JHP/JHPU Pump Parts
Specifications:
- Phase: 1
- Output HP: 1 1/2,1/4 Hp
- Output KW: 1.1 kW
- Voltage: 230 V
- Speed: 3450/1725 rpm
- Service Factor: 1.3
- Frame: 56J
- Enclosure: Open Drip Proof
- Thermal Protection: Automatic
- Ambient Temperature: 40 °C
- Frequency: 60 Hz
- Current: 9.0/3.3 A
- Duty: Continuous
- Insulation Class: B
- UL: Recognized
- CSA: Y
- Number of Speeds: 2
