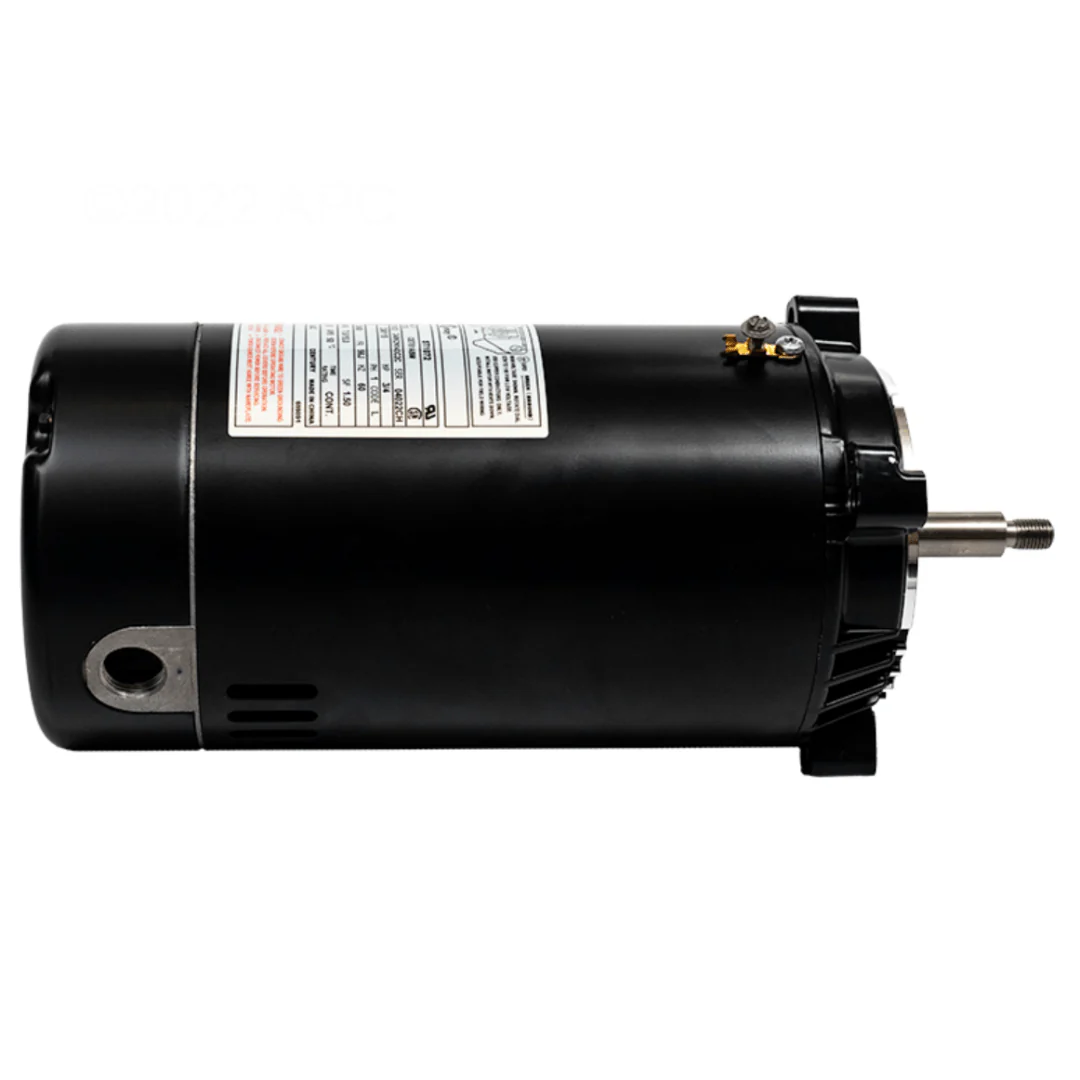

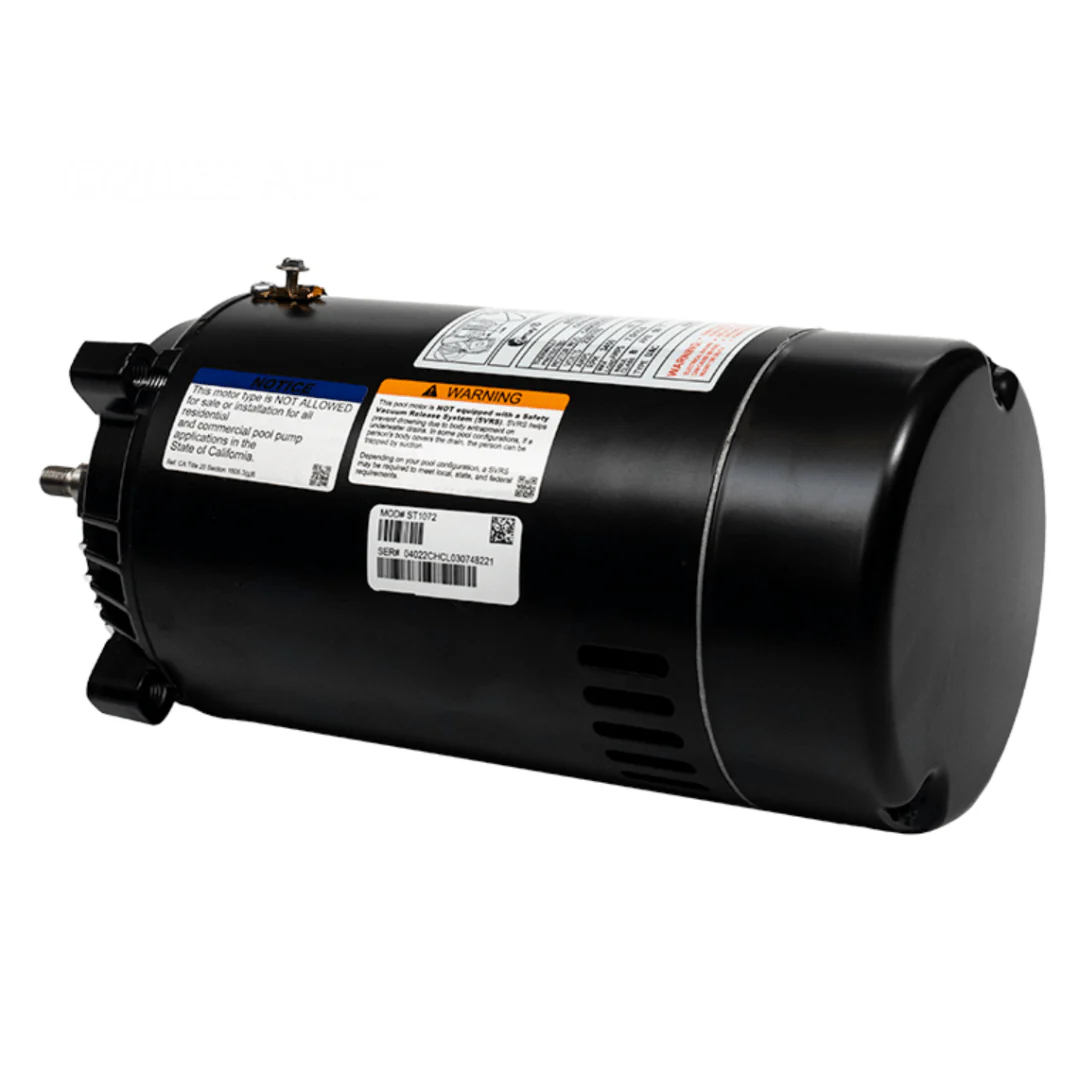

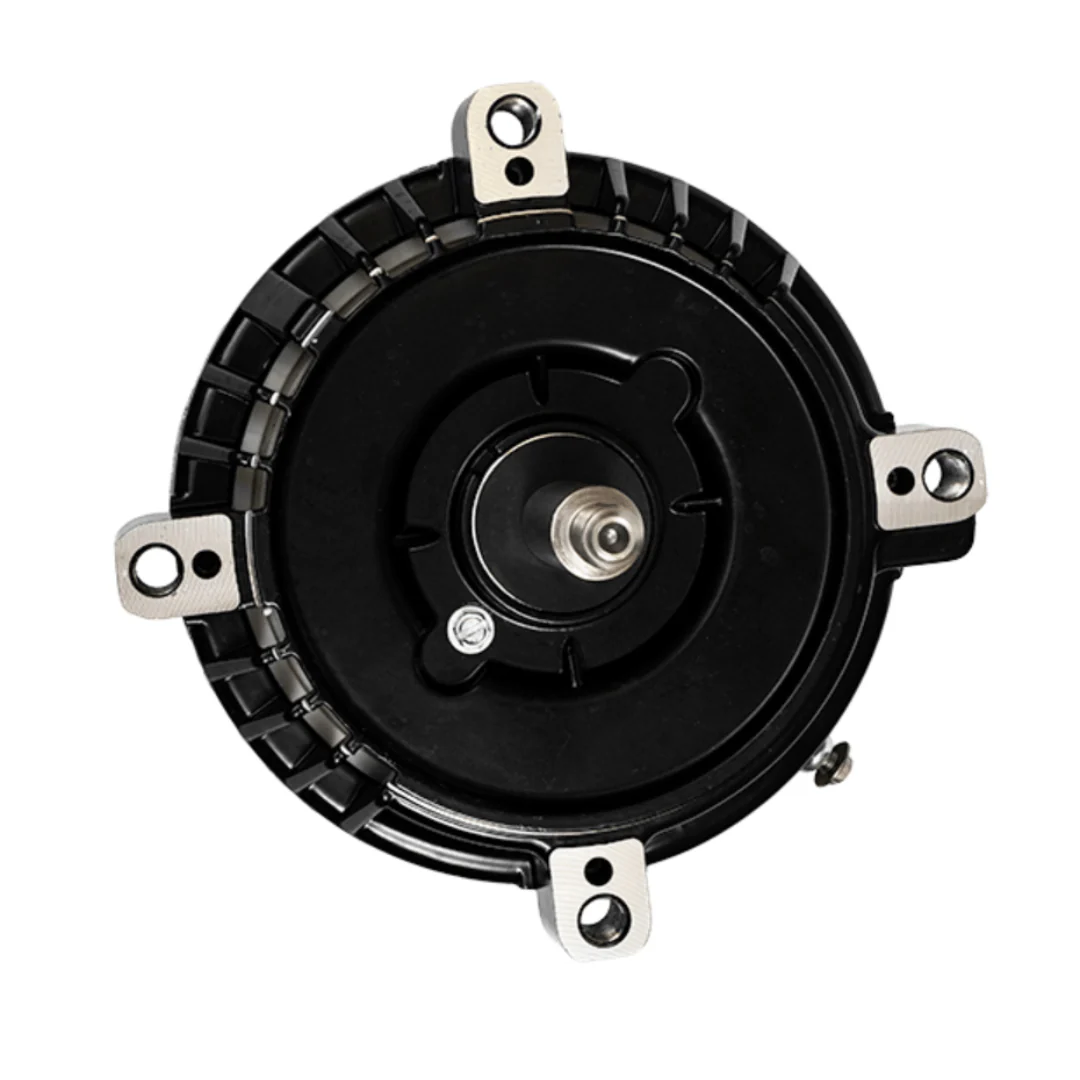

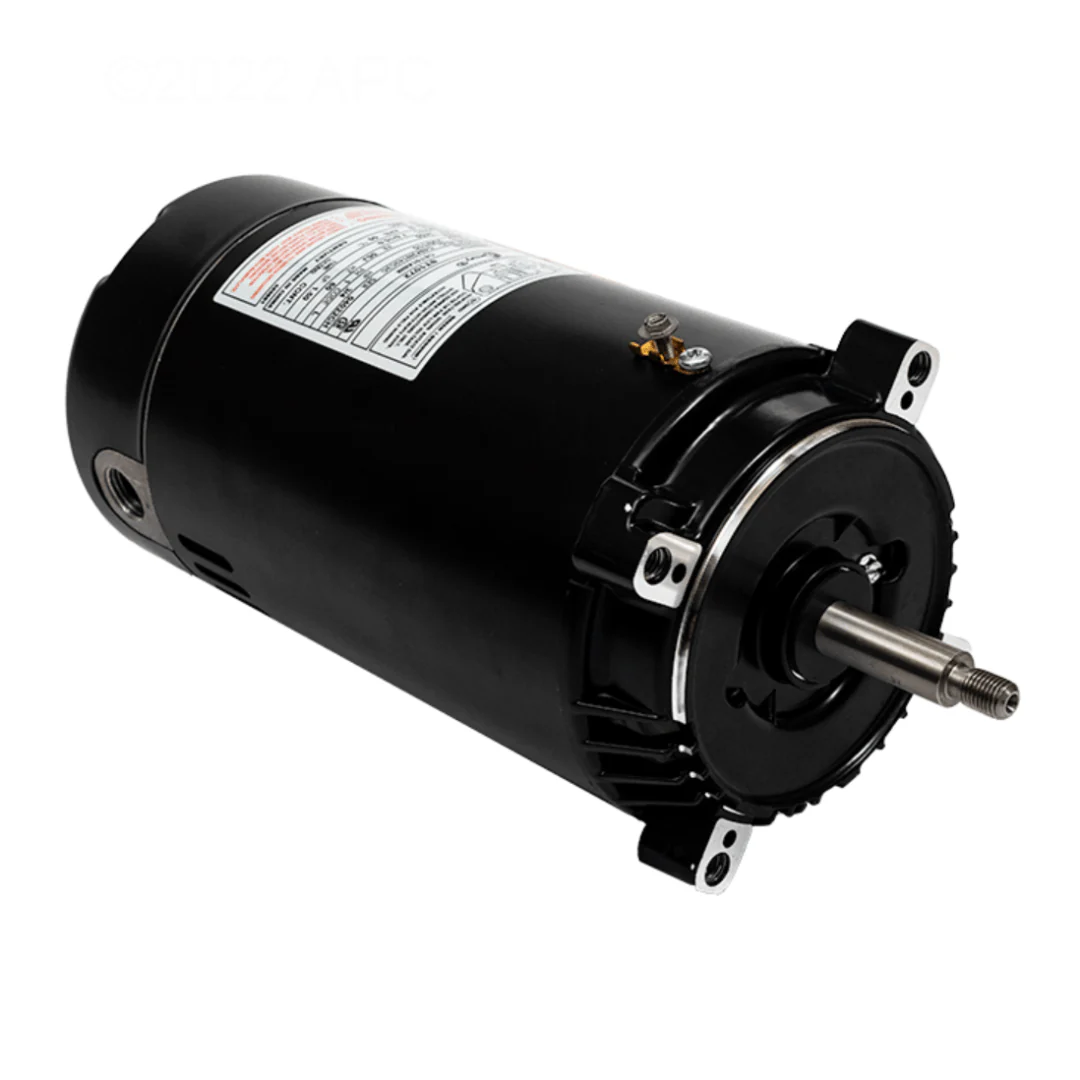

Century ST1072 Pool Pump Motor, 3/4 HP, 1 Ph, 60 Hz, 230/115 V, 3600 RPM, 56J Frame, ODP
Century ST1072 Full-Rated Two-Compartment Pool Filter Motor; 0.75 HP; 3450 RPM; 115/230 V; 56J; Threaded Shaft
- Manufactured by Regal Beloit EPC, Inc.
- 56J Frame Threaded Shaft
- Service Factor: 1.5
- 3450 RPM, 115/230V, 15.0/7.5A
- 303 Stainless Shaft
- Open Drip Proof
- Sealed Ball Bearings
Used On:
- Jacuzzi Magnum Pump Parts
- Jandy HHP/HHPU Pump Parts
- Marlow Argonaut Pump Parts
- Marlow Mardur Series Pump Parts
- Jacuzzi Ring-Lok R, P, PC & UP Pump Parts
Specifications:
| Ambient Temperature | 50 deg C |
| Bearing Type | Sealed Ball |
| Brand | Regal Beloit |
| Diameter | 6-1/2 Inch |
| Duty Cycle | Continuous |
| Efficiency Group | Standard |
| Enclosure Design | Open Dripproof |
| Finish Color | Satin Black |
| Flange Material | Aluminum |
| Frame | 56J |
| Frequency Rating | 60 Hz |
| Full Load Amps | 15/7.5 A |
| HP | 0.75 |
| Insulation Class | B |
| Item | Two-Compartment Pool Filter Motor |
| Motor Design | Capacitor Start |
| Motor Shaft Rotation | CCWPE |
| Motor Thermal Protection | Auto |
| Mounting Type | C-Face |
| Number of Speed | 1-Speed |
| Overall Length | 11.00 Inch |
| Phase | 1-Phase |
| RPM | 3450 |
| Service Factor | 1.50 |
| Shaft Design | Threaded |
| Shaft Diameter | 5/8 Inch |
| Shaft Length | 2-9/16 Inch |
| Shaft Material | 303 Stainless Steel |
| Standards Approvals | UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341) |
| Sub Brand | Century® |
| Thrust Horsepower | 1.13 |
| Type | Full-Rated, UAC |
| Voltage Rating | 115/230 V |
$87.50
Original: $249.99
-65%Century ST1072 Pool Pump Motor, 3/4 HP, 1 Ph, 60 Hz, 230/115 V, 3600 RPM, 56J Frame, ODP—
$249.99
$87.50Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Century ST1072 Full-Rated Two-Compartment Pool Filter Motor; 0.75 HP; 3450 RPM; 115/230 V; 56J; Threaded Shaft
- Manufactured by Regal Beloit EPC, Inc.
- 56J Frame Threaded Shaft
- Service Factor: 1.5
- 3450 RPM, 115/230V, 15.0/7.5A
- 303 Stainless Shaft
- Open Drip Proof
- Sealed Ball Bearings
Used On:
- Jacuzzi Magnum Pump Parts
- Jandy HHP/HHPU Pump Parts
- Marlow Argonaut Pump Parts
- Marlow Mardur Series Pump Parts
- Jacuzzi Ring-Lok R, P, PC & UP Pump Parts
Specifications:
| Ambient Temperature | 50 deg C |
| Bearing Type | Sealed Ball |
| Brand | Regal Beloit |
| Diameter | 6-1/2 Inch |
| Duty Cycle | Continuous |
| Efficiency Group | Standard |
| Enclosure Design | Open Dripproof |
| Finish Color | Satin Black |
| Flange Material | Aluminum |
| Frame | 56J |
| Frequency Rating | 60 Hz |
| Full Load Amps | 15/7.5 A |
| HP | 0.75 |
| Insulation Class | B |
| Item | Two-Compartment Pool Filter Motor |
| Motor Design | Capacitor Start |
| Motor Shaft Rotation | CCWPE |
| Motor Thermal Protection | Auto |
| Mounting Type | C-Face |
| Number of Speed | 1-Speed |
| Overall Length | 11.00 Inch |
| Phase | 1-Phase |
| RPM | 3450 |
| Service Factor | 1.50 |
| Shaft Design | Threaded |
| Shaft Diameter | 5/8 Inch |
| Shaft Length | 2-9/16 Inch |
| Shaft Material | 303 Stainless Steel |
| Standards Approvals | UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341) |
| Sub Brand | Century® |
| Thrust Horsepower | 1.13 |
| Type | Full-Rated, UAC |
| Voltage Rating | 115/230 V |
