• 1.5 HP 230V FLANGED MOTOR
• 1.47 SF FULL RATED

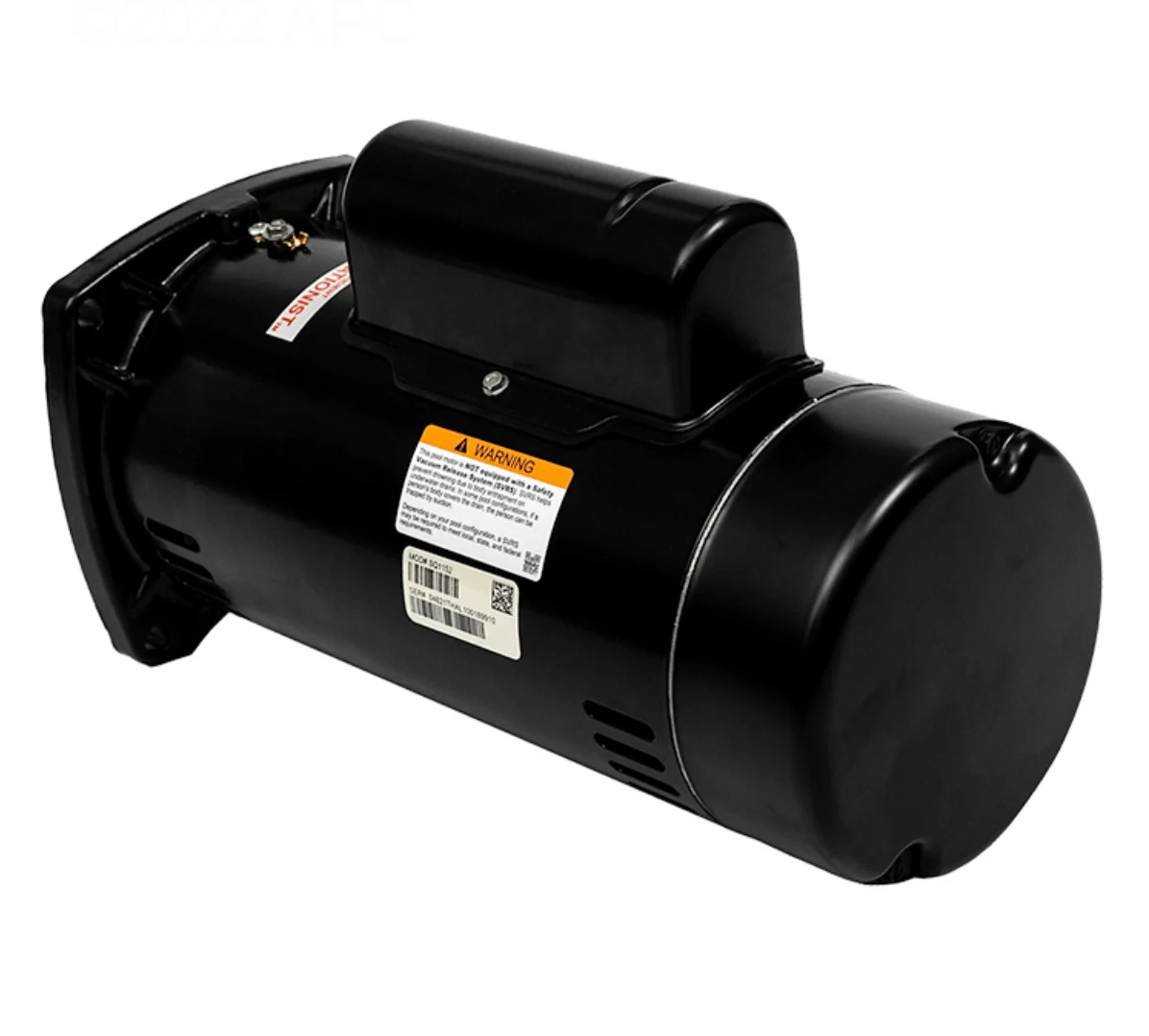

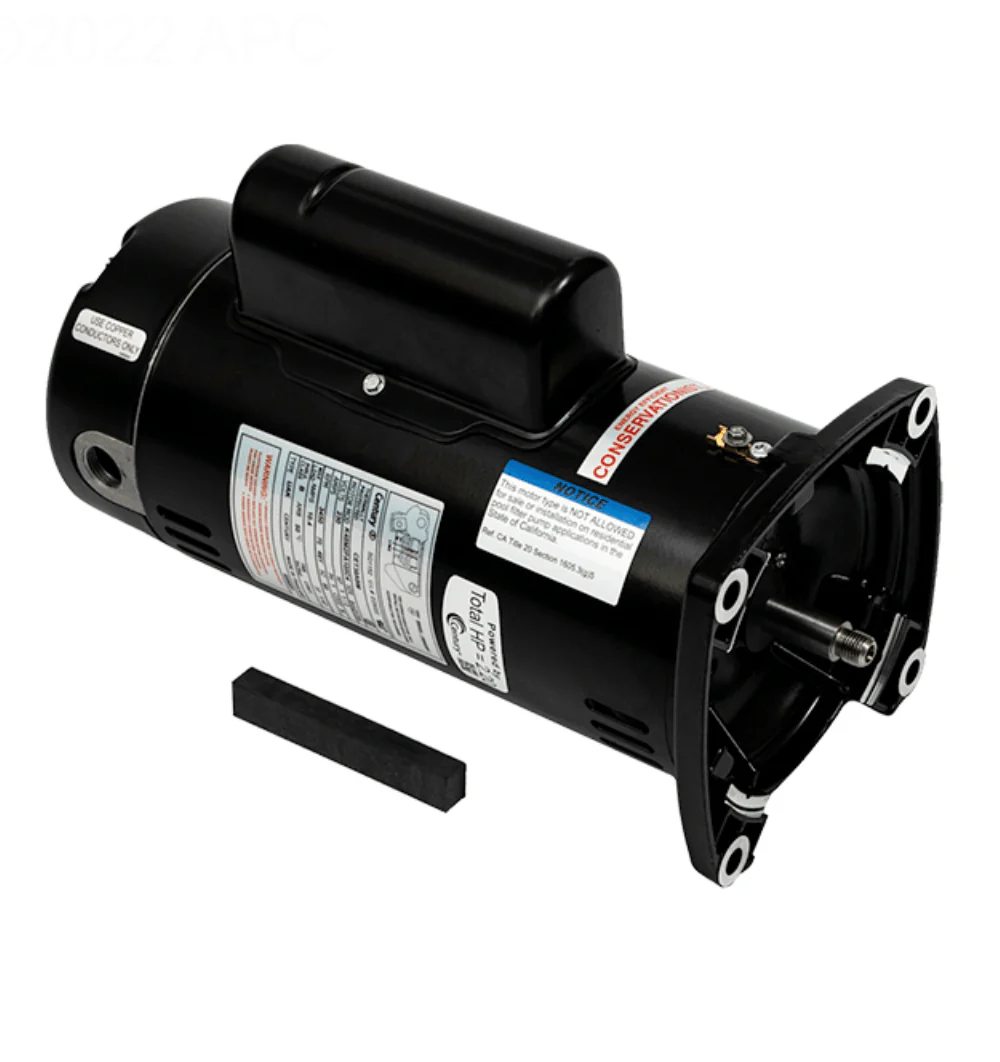

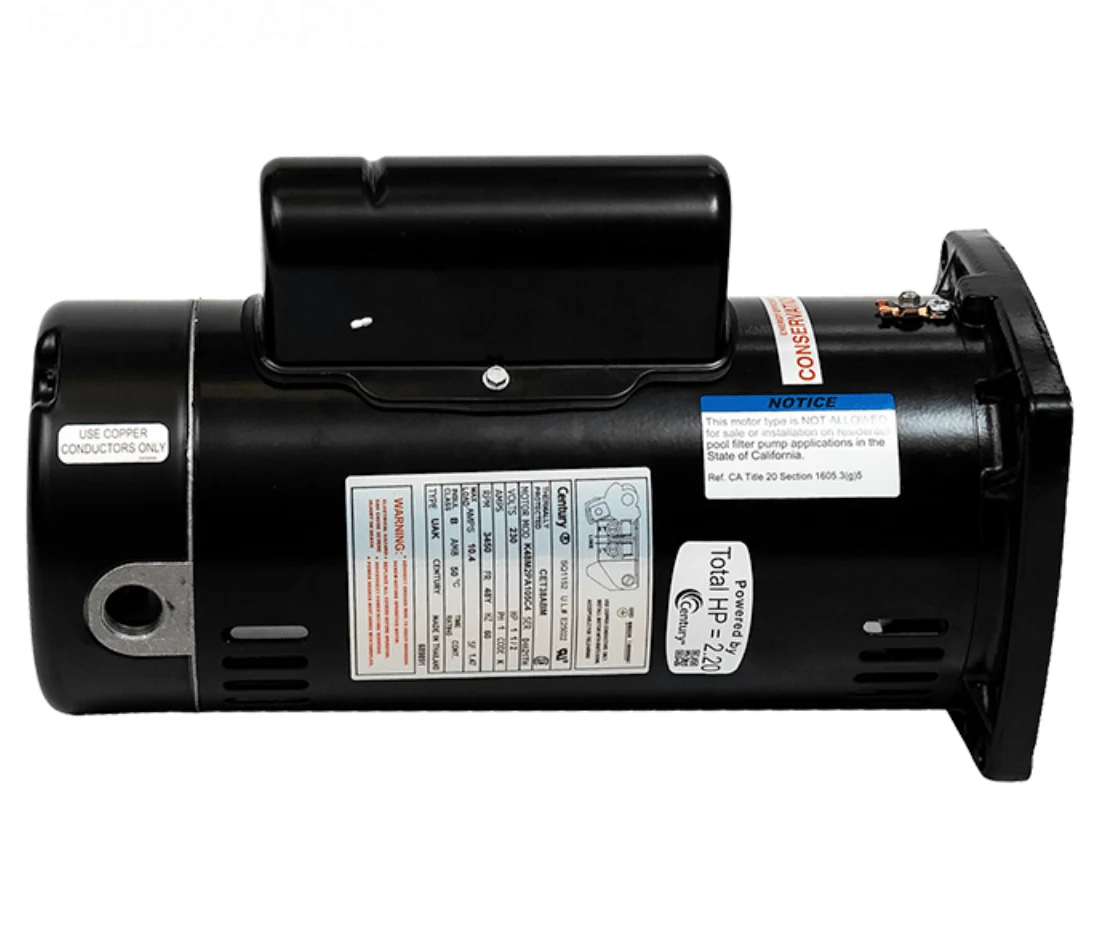

Century SQ1152 Square Flange Full-Rated Two-Compartment Pool Filter Motor; 1.5 HP; 3450 RPM; 230 V; 48Y; Threaded Shaft

• 48Y Frame Threaded Shaft
• Service Factor: 1.47
• 3450 RPM, 230V, 10.4A
• C-Face
• Open Drip Proof
• Sealed Ball Bearings

Used On

• Jandy MHP/MHPU Pump Parts
• Sta-Rite Dyna-Pro and Dyna-Pro E Pump Parts
• Sta-Rite Max-E Glas and Dura-Glas Full-Rated Pump Parts
• Sta-Rite Max-E Glas II and Dura-Glas II Full-Rated Pump Parts
• Sta-Rite Max-E Pro Series Pump Parts
• Sta-Rite Supermax Pump Parts

Specifications

Ambient Temperature	50 deg C
Application	Many Sta-Rite®, Red Jacket, Pac Fab and American Products
Bearing Type	Sealed Ball
Brand	Regal Beloit
Diameter	5-5/8 Inch
Duty Cycle	Continuous
Efficiency Group	High
Enclosure Design	Open Dripproof
Finish Color	Satin Black

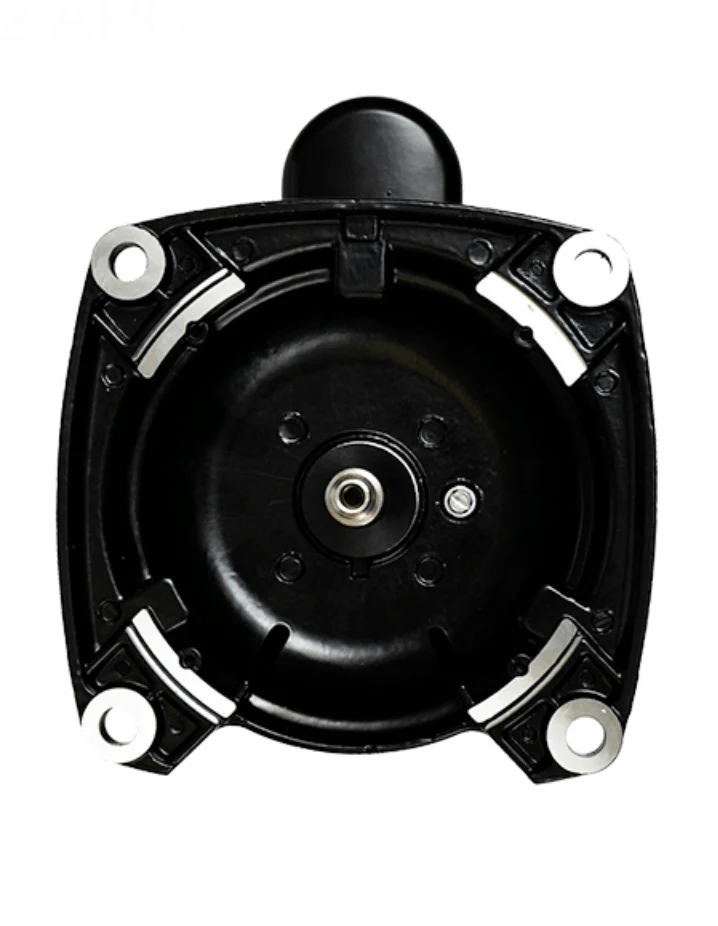

Flange Type	Square
Frame	48Y
Frequency Rating	60 Hz
Full Load Amps	10.4 A
HP	1.5
Insulation Class	B
Item	Two-Compartment Pool Filter Motor
Motor Design	Capacitor Start/Run
Motor Shaft Rotation	CCWPE
Motor Thermal Protection	Auto
Mounting Type	C-Face
Number of Speed	1-Speed
Overall Length	13.25 Inch
Phase	1-Phase
RPM	3450
Service Factor	1.47
Shaft Design	Threaded
Shaft Diameter	5/8 Inch
Shaft Material	303 Stainless Steel
Standards Approvals	UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341)
Sub Brand	Century®
Thrust Horsepower	2.21
Type	Full-Rated, UAK
Voltage Rating	230 V
