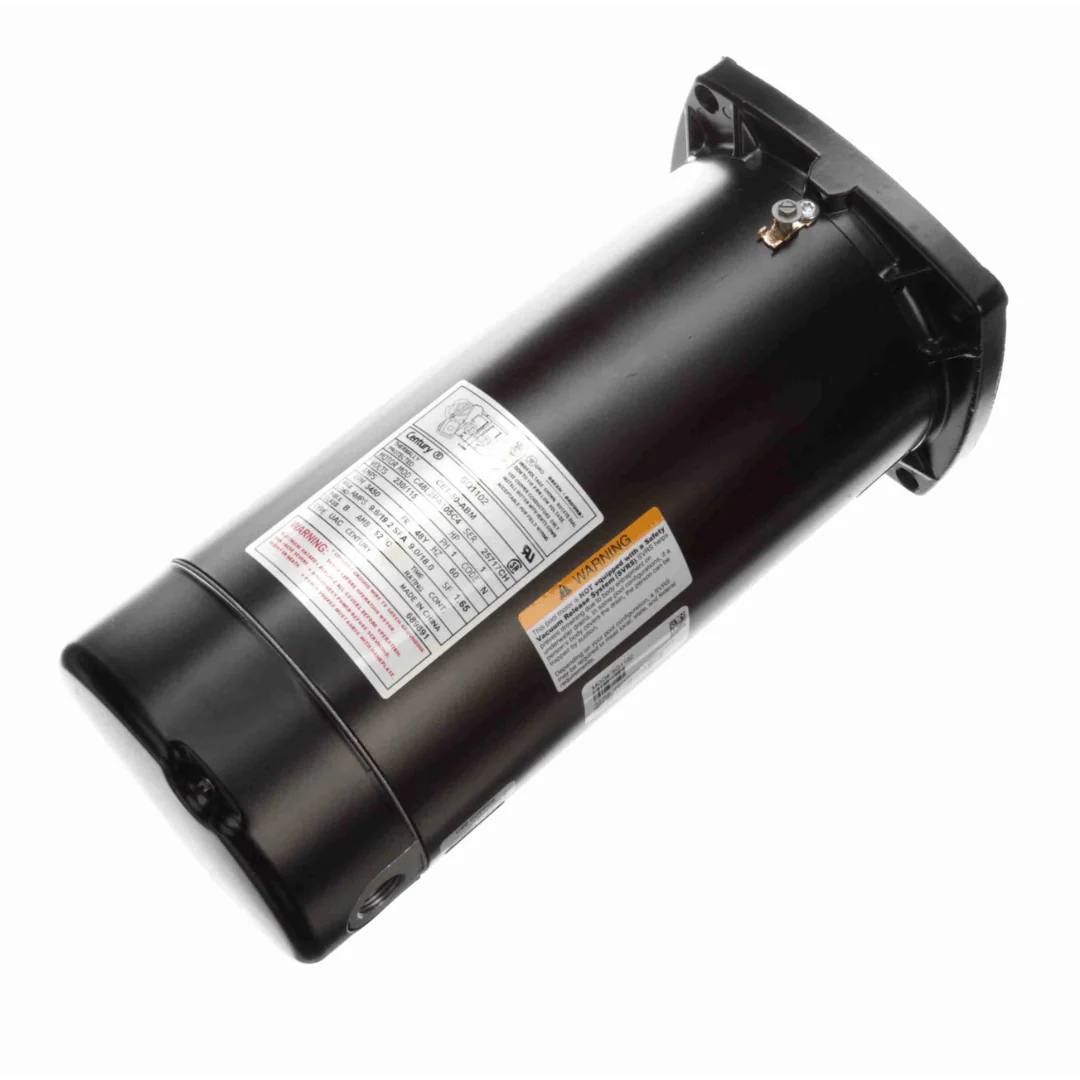

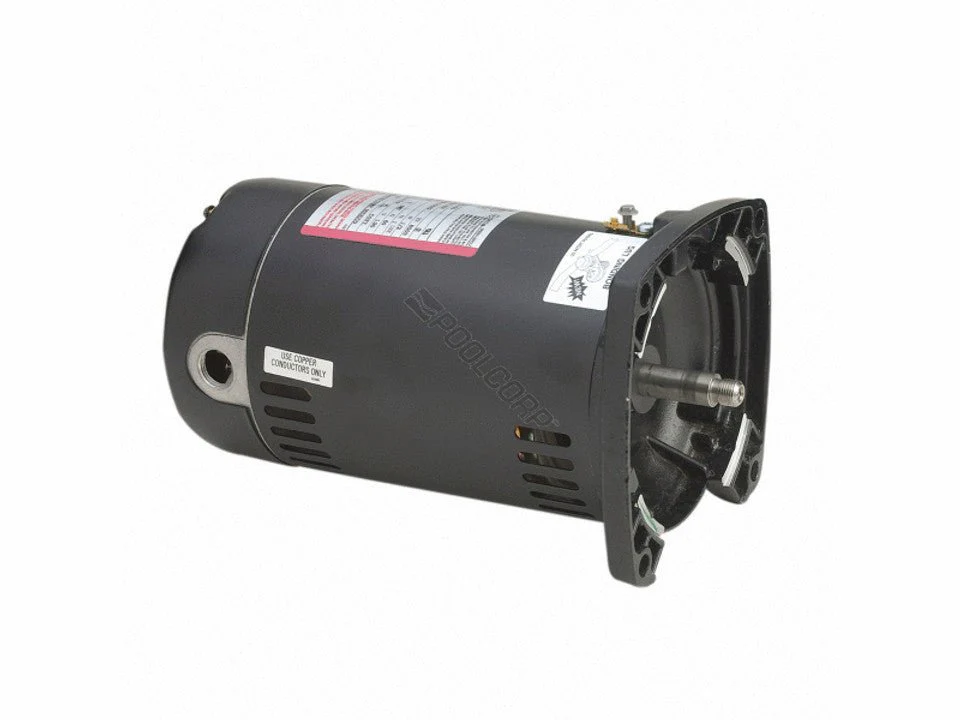

Century SQ1102 Pool Pump Motor, 1 HP, 1 Ph, 60 Hz, 230/115 V, 3600 RPM, 48Y Frame, ODP
SQ1102 1 HP 115/230V FLANGED MOTOR
- Sealed Ball Bearings
- Capacitor Start
- Open Dripproof
- 303 Stainless Steel Shaft
- 50°C Ambient
- UL 1081 Design
Used On:
- Jandy MHP/MHPU Pump Parts
- Sta-Rite Dyna-Pro and Dyna-Pro E Pump Parts
- Sta-Rite Max-E Glas and Dura-Glas Full-Rated Pump Parts
- Sta-Rite Max-E Glas II and Dura-Glas II Full-Rated Pump Parts
- Sta-Rite Max-E Pro Series Pump Parts
- Sta-Rite Supermax Pump Parts
Specifications:
- Phase: 1
- Output HP: 1 Hp
- Output KW: 0.75 kW
- Voltage: 230/115 V
- Speed: 3450 rpm
- Service Factor: 1.65
- Frame: 48Y
- Enclosure: Open Drip Proof
- Thermal Protection: Automatic
- Efficiency: 55.2 %
- Ambient Temperature: 50 °C
- Frequency: 60 Hz
- Current: 9.0/18.0 A
- Duty: Continuous
- Insulation Class: B
- UL: Recognized
- CSA: Y
- Number of Speeds: 1
$108.50
Original: $309.99
-65%Century SQ1102 Pool Pump Motor, 1 HP, 1 Ph, 60 Hz, 230/115 V, 3600 RPM, 48Y Frame, ODP—
$309.99
$108.50Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
SQ1102 1 HP 115/230V FLANGED MOTOR
- Sealed Ball Bearings
- Capacitor Start
- Open Dripproof
- 303 Stainless Steel Shaft
- 50°C Ambient
- UL 1081 Design
Used On:
- Jandy MHP/MHPU Pump Parts
- Sta-Rite Dyna-Pro and Dyna-Pro E Pump Parts
- Sta-Rite Max-E Glas and Dura-Glas Full-Rated Pump Parts
- Sta-Rite Max-E Glas II and Dura-Glas II Full-Rated Pump Parts
- Sta-Rite Max-E Pro Series Pump Parts
- Sta-Rite Supermax Pump Parts
Specifications:
- Phase: 1
- Output HP: 1 Hp
- Output KW: 0.75 kW
- Voltage: 230/115 V
- Speed: 3450 rpm
- Service Factor: 1.65
- Frame: 48Y
- Enclosure: Open Drip Proof
- Thermal Protection: Automatic
- Efficiency: 55.2 %
- Ambient Temperature: 50 °C
- Frequency: 60 Hz
- Current: 9.0/18.0 A
- Duty: Continuous
- Insulation Class: B
- UL: Recognized
- CSA: Y
- Number of Speeds: 1
