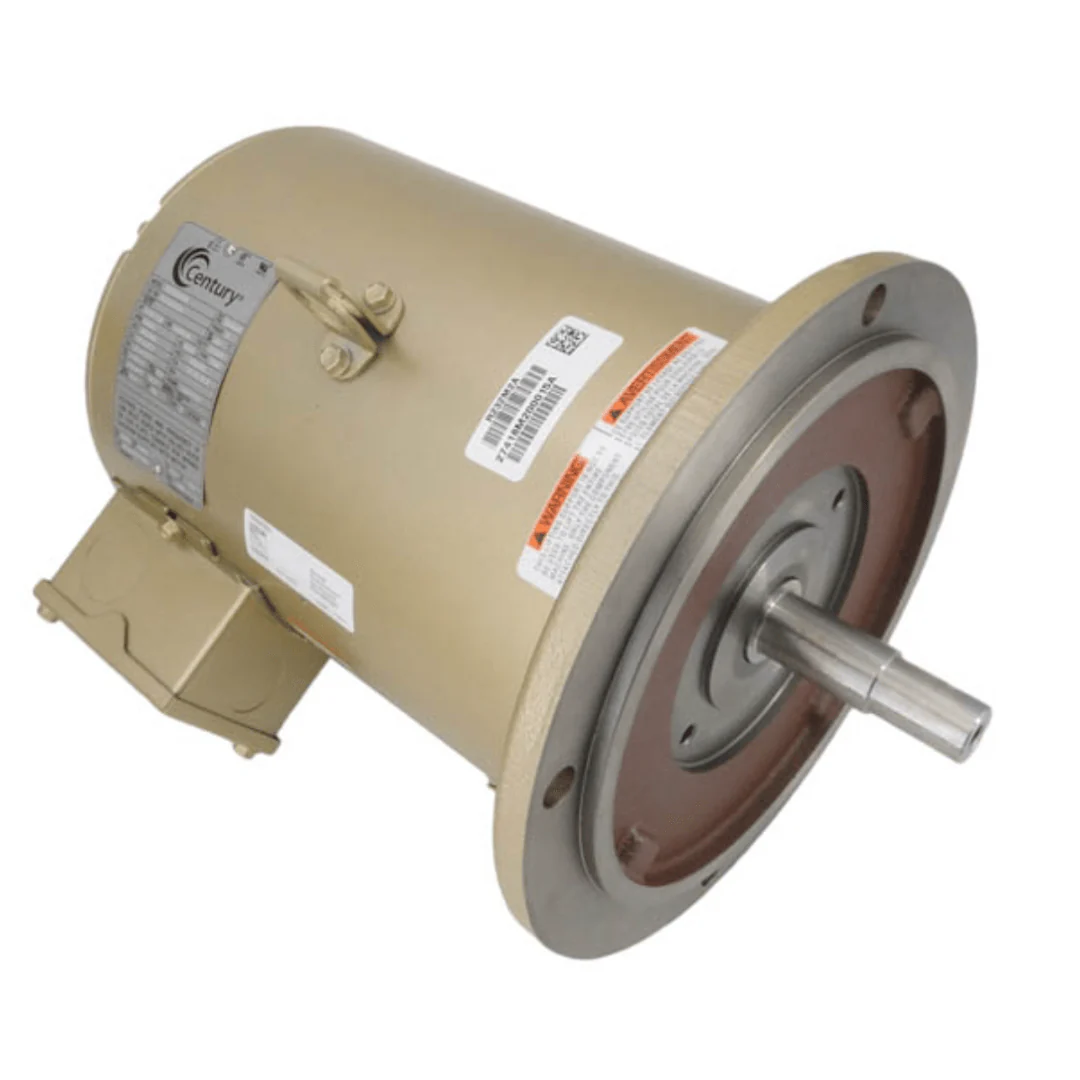

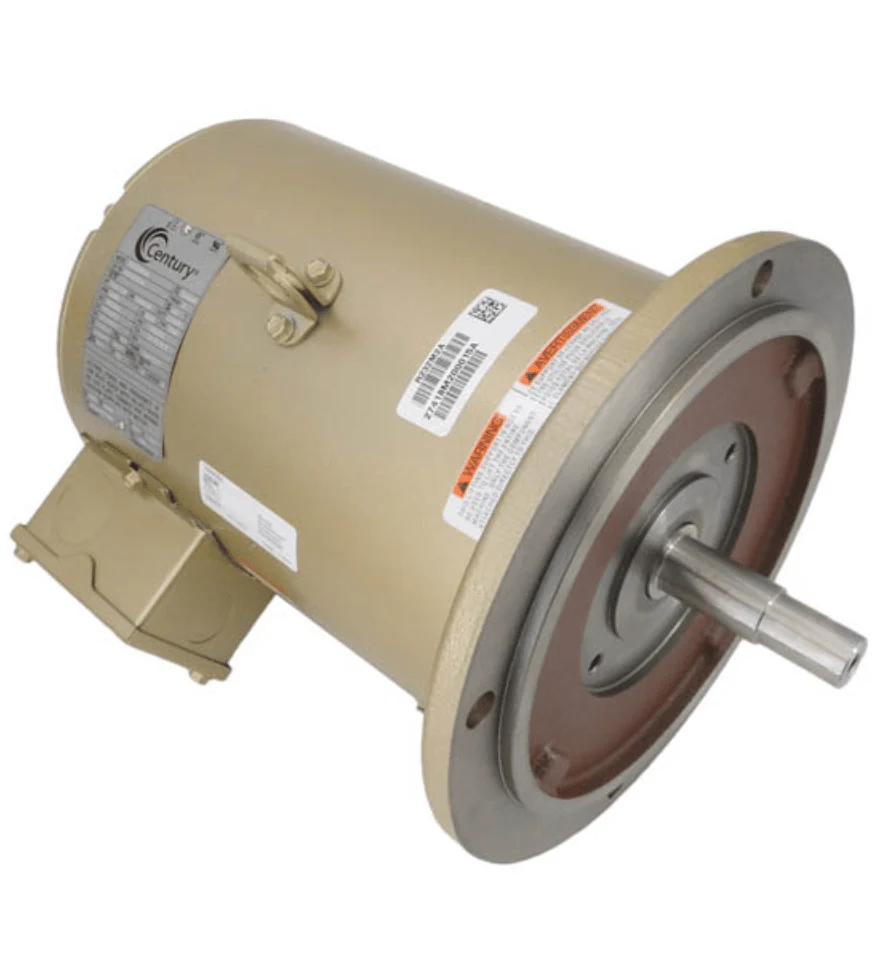

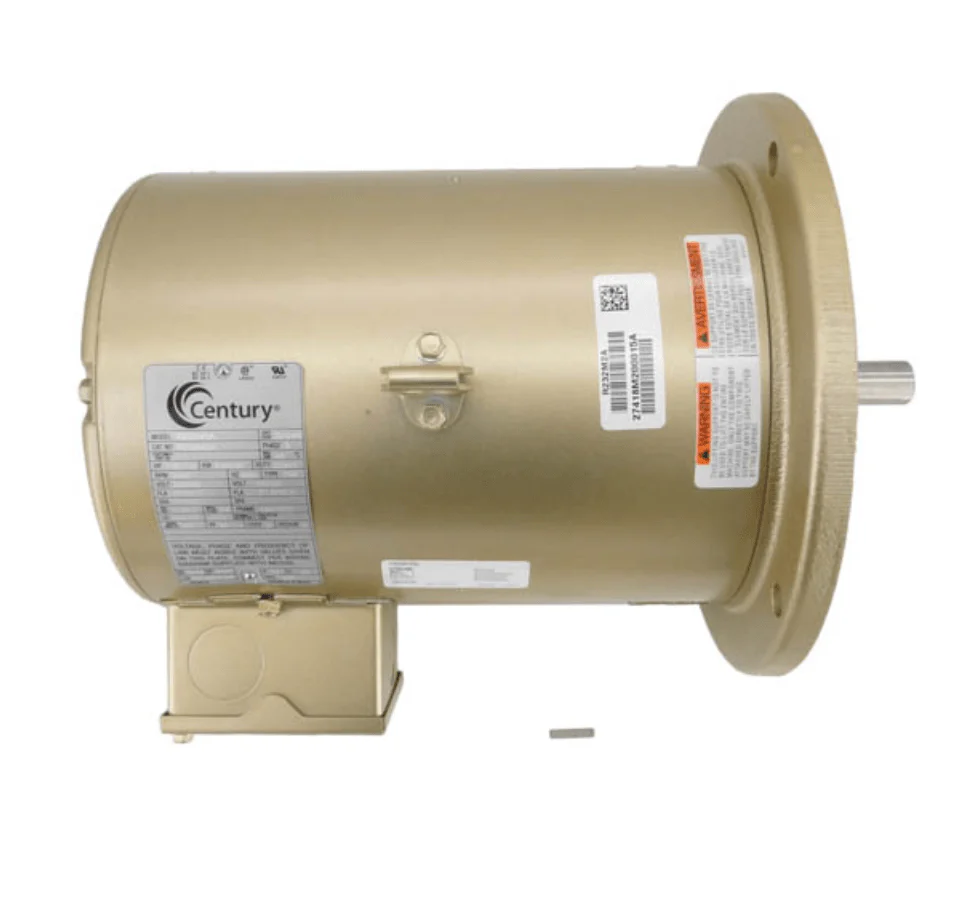

Century Pool Pump Motor, 7 1/2 HP, 3 Ph, 50 Hz, 220/440 V, 184TDZ Frame, DP - R232M2B

• Well-suited for Commercial and Large Residential Pools
• Open Dripproof, Premium Efficient Designs, Reversible
• Round Body/Footless, Special JMZ Shaft Configuration
• 40°C Ambient
• Sealed Ball Bearings
• keyed, 304 Stainless Steel Shaft Extension, with external shaft slinger
• Purex Hydrotech East Side "L" Series and "C" Series Commercial Pump
• Purex Replacement
• PUREX PENTAIR C SERIES 184TDZ

Specifications:

• Phase: 3
• Output HP: 7 1/2 Hp
• Output KW: 5.6 kW
• Voltage: 220/440 V
• Speed: 3490 rpm
• Service Factor: 1.15
• Frame: 184TDZ
• Enclosure: Drip Proof
• Thermal Protection: No Protection
• Efficiency: 88.5 %
• Ambient Temperature: 40 °C
• Frequency: 50 Hz
• Current: 18.6/9.3 A
• Duty: Continuous
• Insulation Class: F
• UL: Recognized
• CSA: Y
• CE: Y
• Number of Speeds: 1
