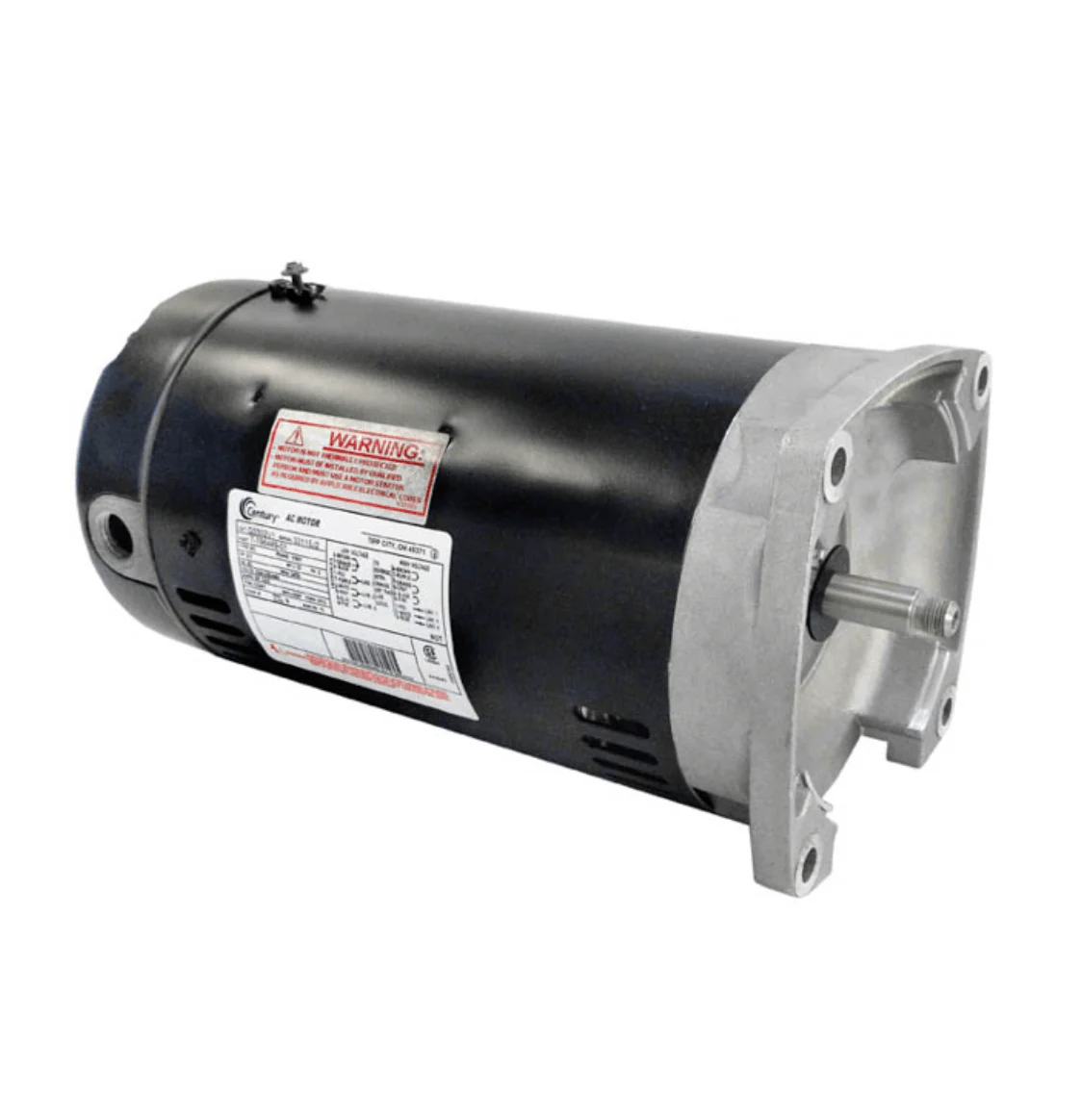

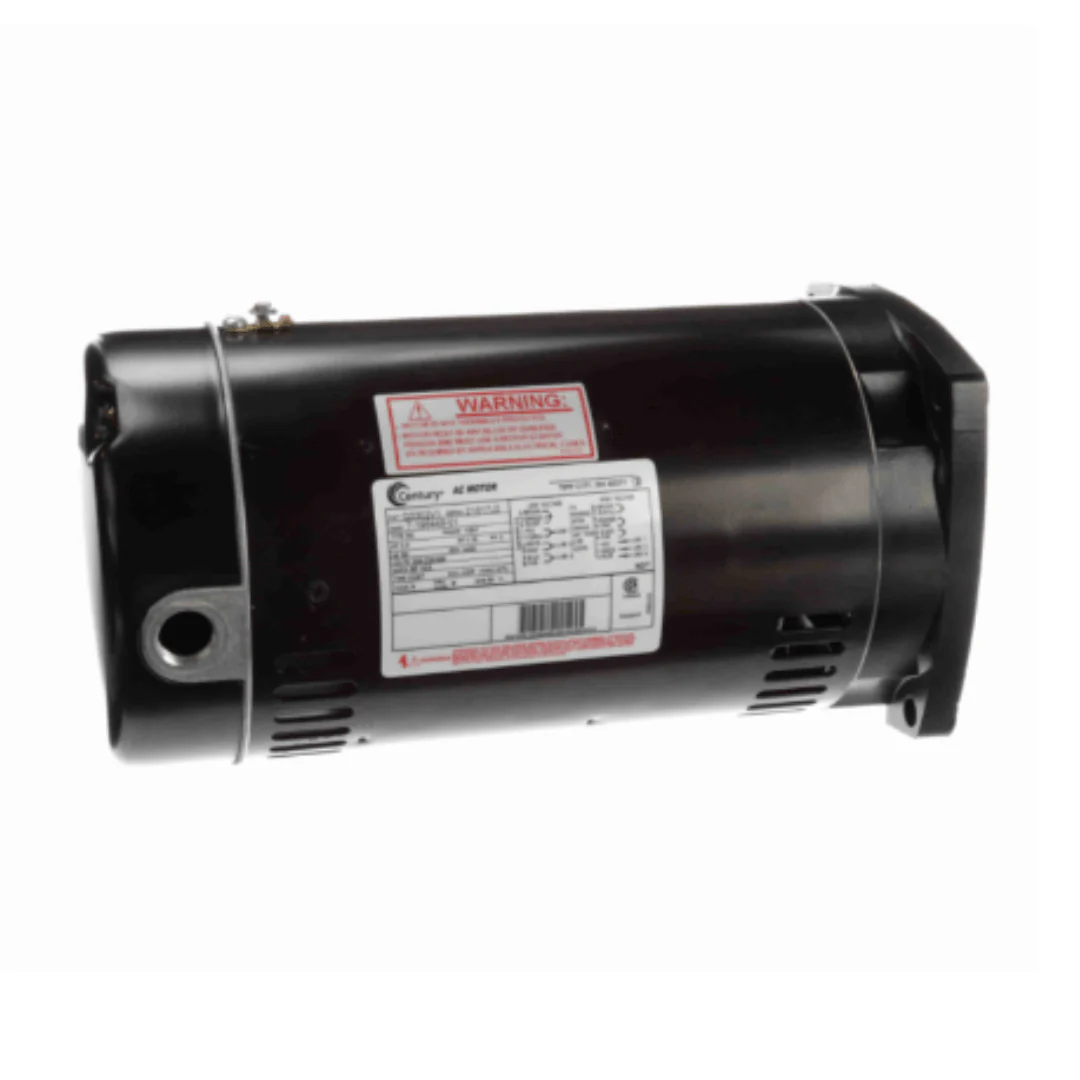

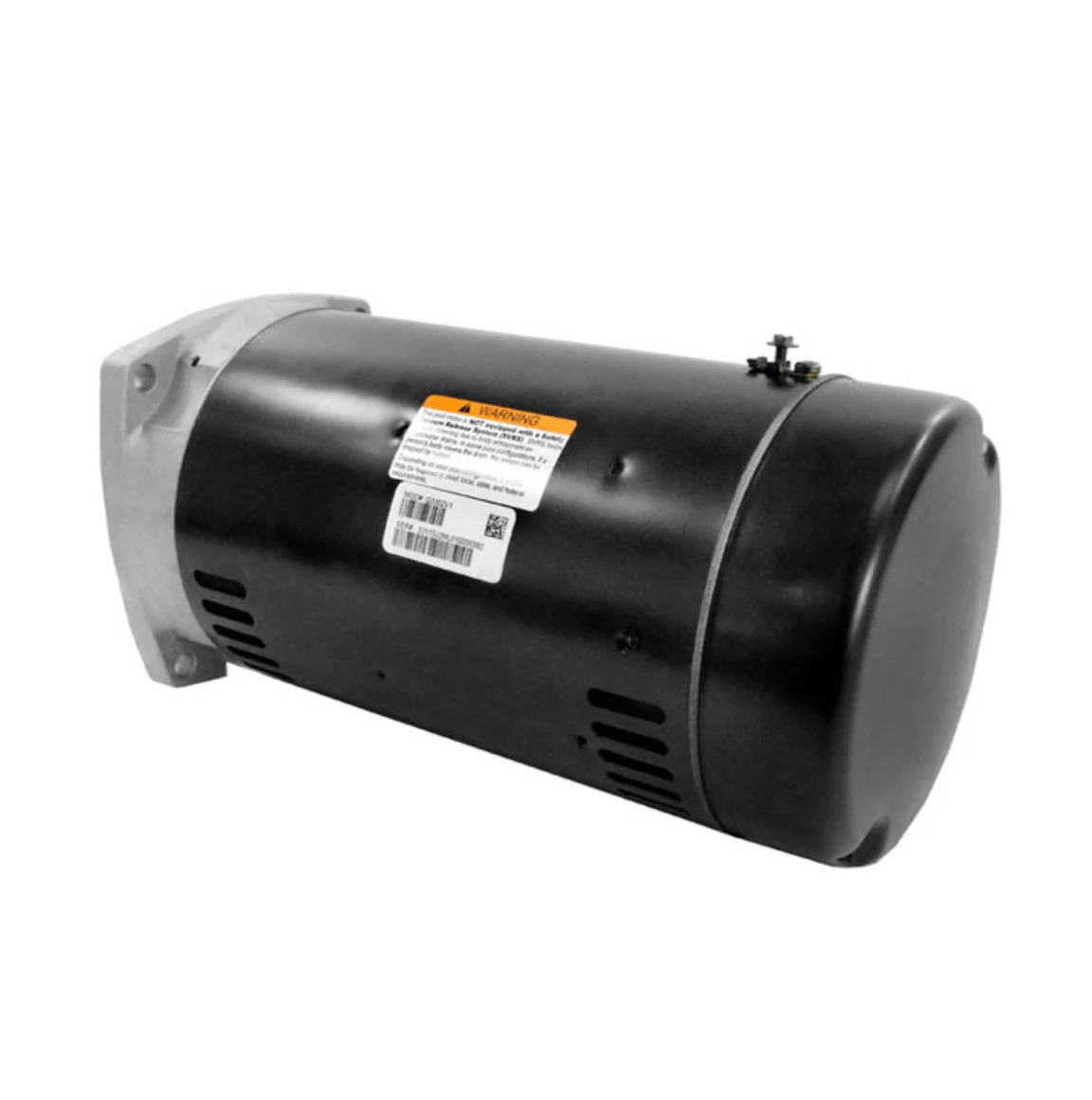

Century Q3302V1 Pool Pump Motor, 3 HP, 3 Ph, 60 Hz, 208-230/460 V, 3600 RPM, Y56Y Frame, ODP
1 / 4
Century Q3302V1 Pool Pump Motor, 3 HP, 3 Ph, 60 Hz, 208-230/460 V, 3600 RPM, Y56Y Frame, ODP
Century Pool Pump Motor, 3.0 HP, 3 Ph, 60 Hz, 208-230/460 V, 3600 RPM, Y56Y Frame, ODP - Q3302V1
- All Copper Windings
- Open Dripproof
- 303 Stainless Steel Shaft
- Threaded Shaft
- Sealed Ball Bearings
- 50°C Ambient
- 3 Phase
- Jet Pump

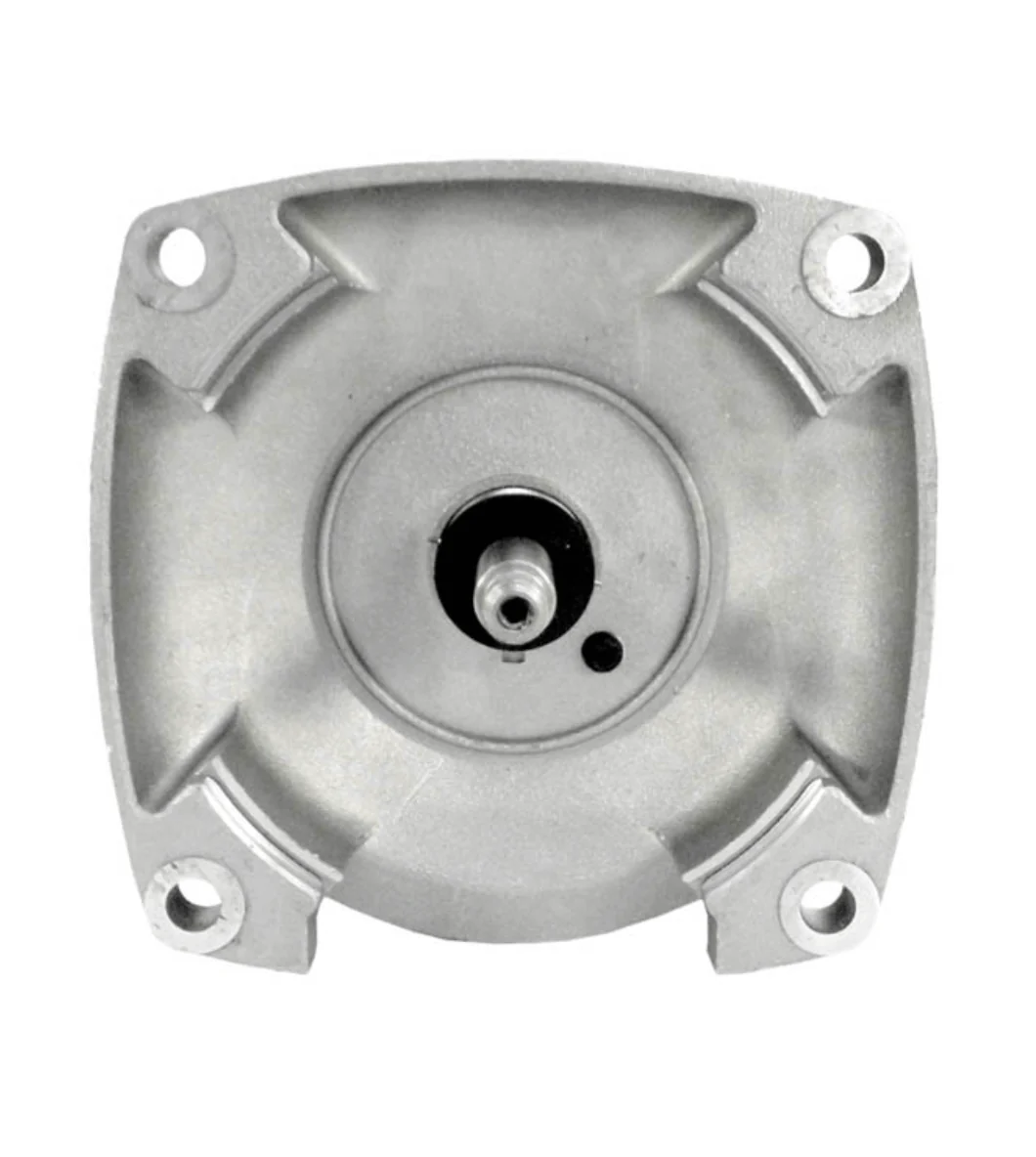

- Square Flange
Specifications:
- Phase: 3
- Output HP: 3.0 Hp
- Output KW: 2.2 kW
- Voltage: 208-230/460 V
- Speed: 3450 rpm
- Service Factor: 1.15
- Frame: Y56Y
- Enclosure: Open Drip Proof
- Thermal Protection: No Protection
- Ambient Temperature: 50 °C
- Frequency: 60 Hz
- Current: SF 10/5 A
- Duty: Continuous
- Insulation Class: B
- UL: Recognized
- CSA: Y
- Number of Speeds: 3450
$213.50
Original: $609.99
-65%Century Q3302V1 Pool Pump Motor, 3 HP, 3 Ph, 60 Hz, 208-230/460 V, 3600 RPM, Y56Y Frame, ODP—
$609.99
$213.50Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Century Pool Pump Motor, 3.0 HP, 3 Ph, 60 Hz, 208-230/460 V, 3600 RPM, Y56Y Frame, ODP - Q3302V1
- All Copper Windings
- Open Dripproof
- 303 Stainless Steel Shaft
- Threaded Shaft
- Sealed Ball Bearings
- 50°C Ambient
- 3 Phase
- Jet Pump
- Square Flange
Specifications:
- Phase: 3
- Output HP: 3.0 Hp
- Output KW: 2.2 kW
- Voltage: 208-230/460 V
- Speed: 3450 rpm
- Service Factor: 1.15
- Frame: Y56Y
- Enclosure: Open Drip Proof
- Thermal Protection: No Protection
- Ambient Temperature: 50 °C
- Frequency: 60 Hz
- Current: SF 10/5 A
- Duty: Continuous
- Insulation Class: B
- UL: Recognized
- CSA: Y
- Number of Speeds: 3450
