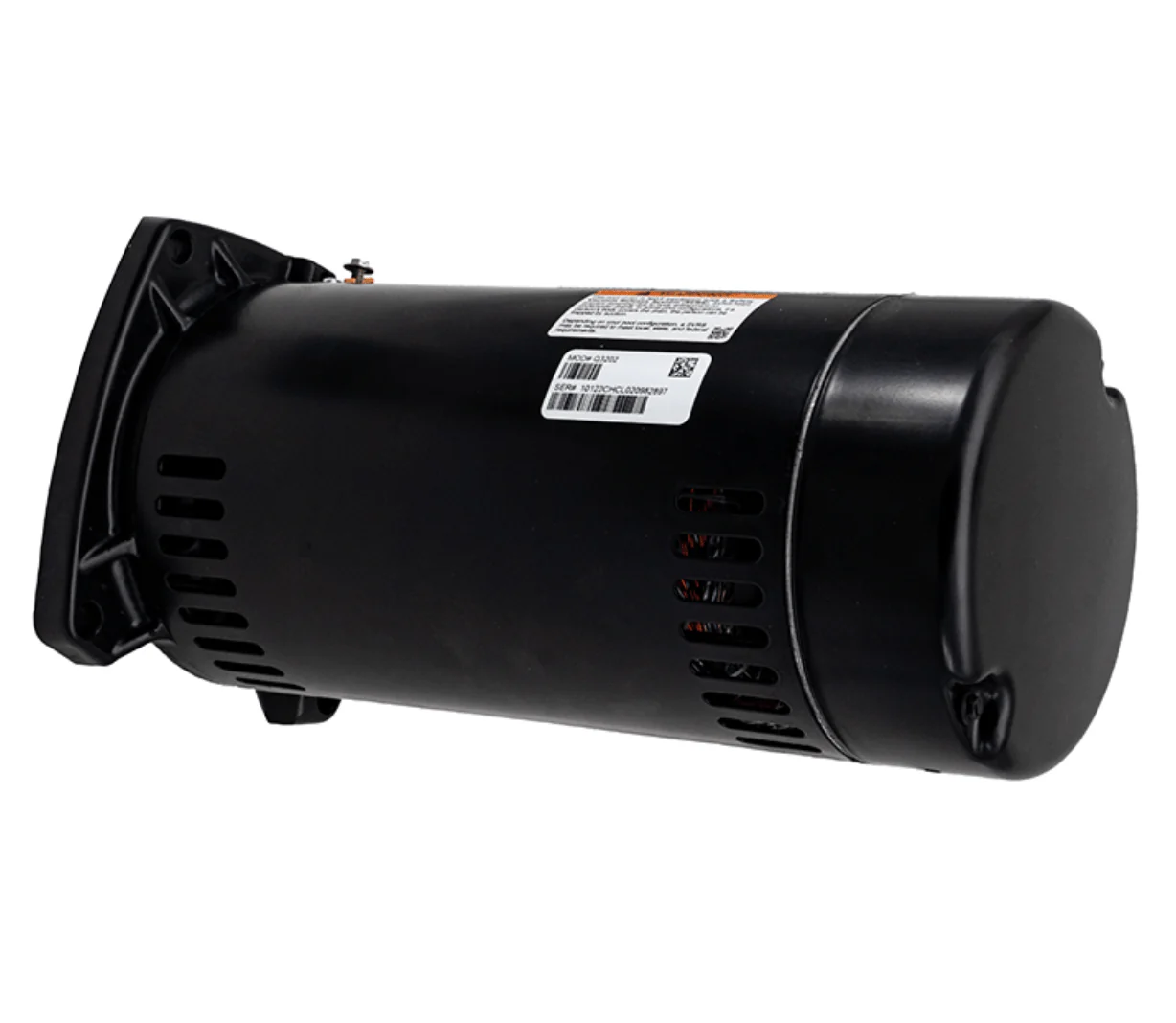

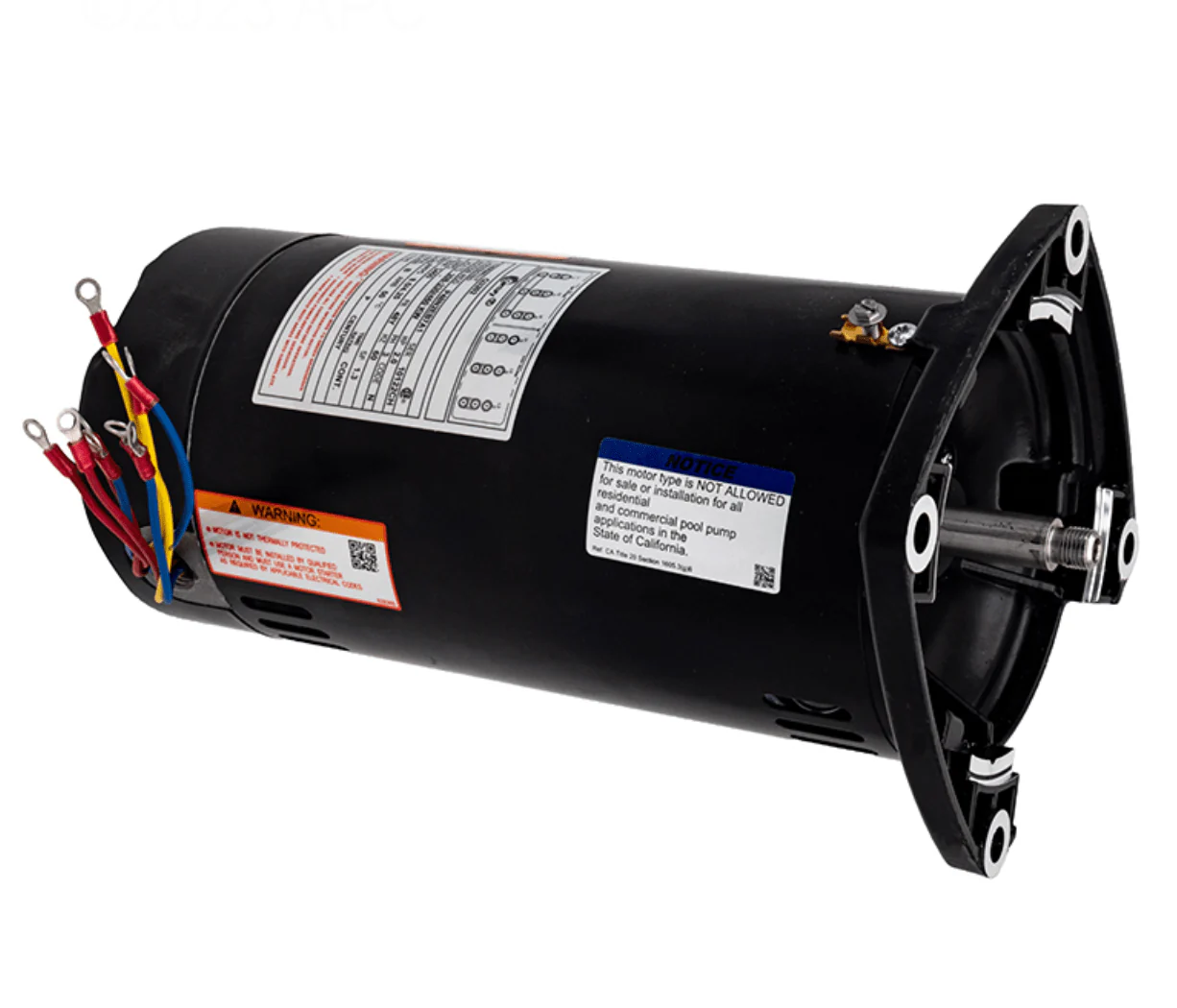

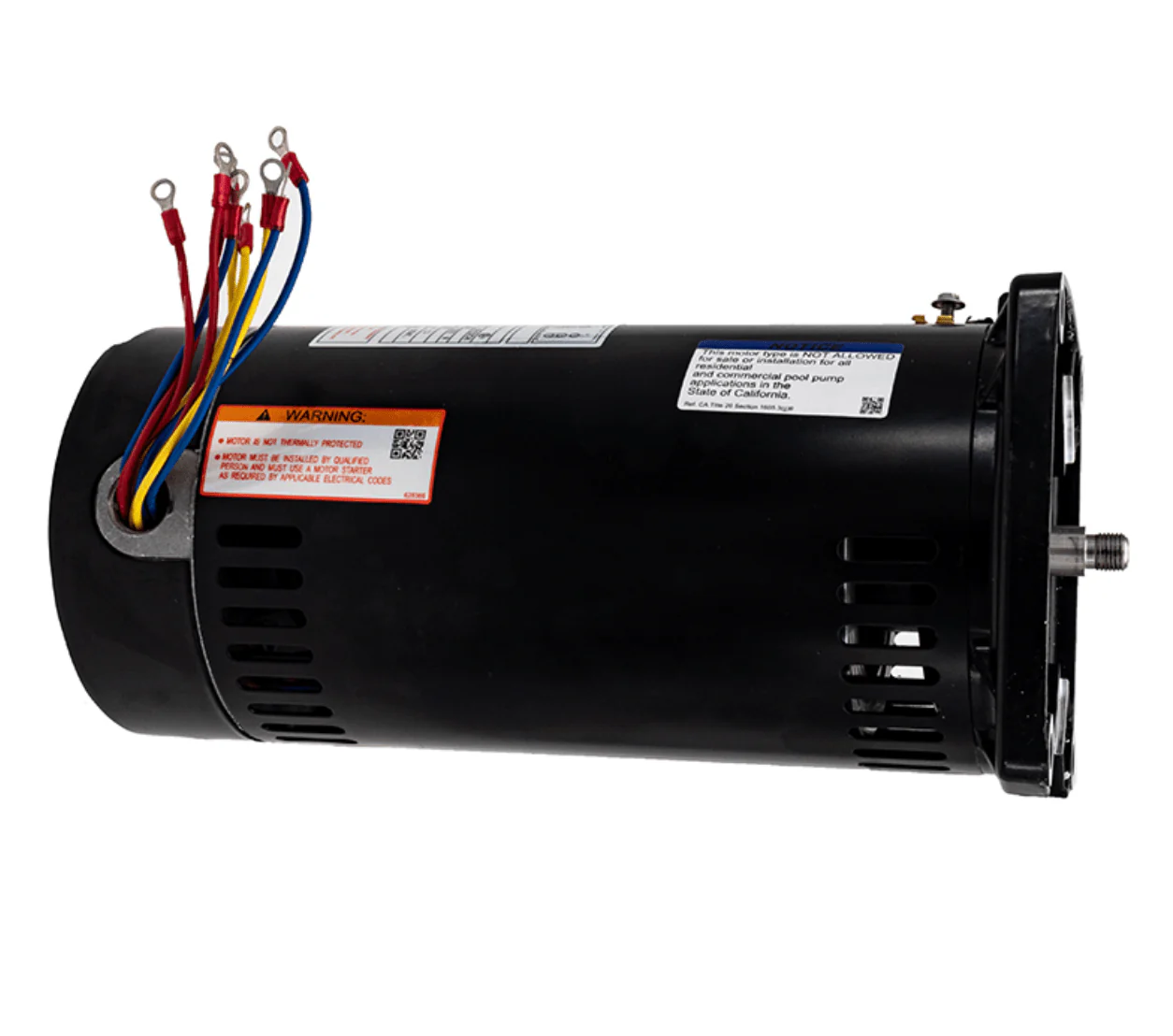

Century Q3202 Pool Pump Motor, 2 HP, 3 Ph, 60 Hz, 208-230/460 V, 3600 RPM, 48Y Frame, ODP
Century Q3202 Square Flange 3-Phase Full-Rated Pool and Spa Pump Motor; 2 HP, 3450 RPM, 208-230/460 V, 48Y, Threaded Shaft
- All Copper Windings
- Open Dripproof
- 303 Stainless Steel Shaft
- Threaded Shaft
- Sealed Ball Bearings
- 50°C Ambient
- 3 Phase
- Jet Pump

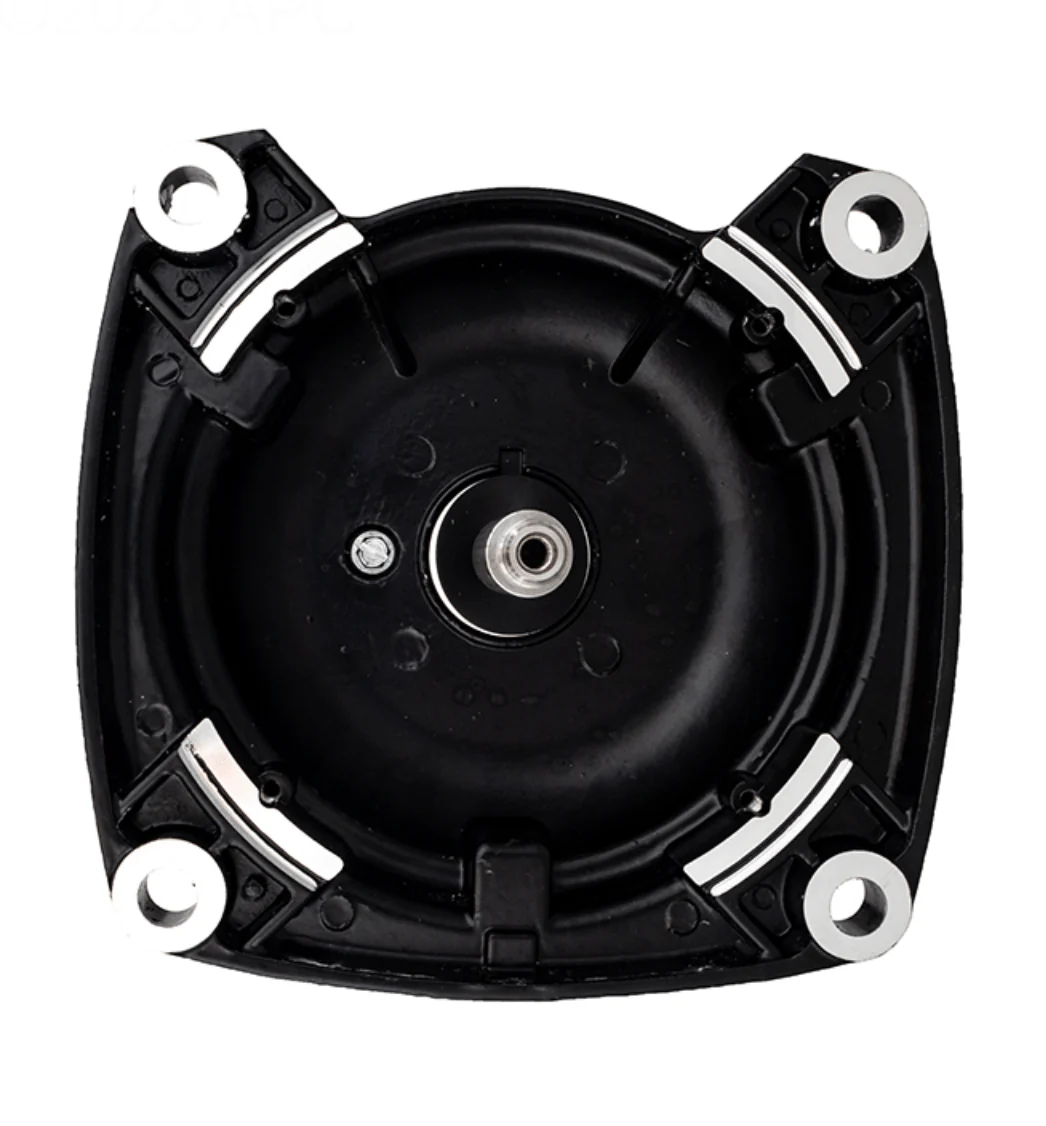

- Square Flange
- California Compliant
Used On:
- Sta-Rite Max-E Glas and Dura-Glas Full-Rated Pump Parts
- Sta-Rite Max-E Glas II and Dura-Glas II Full-Rated Pump Parts
Specifications:
| Ambient Temperature | 50 deg C |
| Bearing Type | Sealed Ball |
| Brand | Regal Beloit |
| Diameter | 5-5/8 Inch |
| Duty Cycle | Continuous |
| Efficiency Group | Standard |
| Enclosure Design | Open Dripproof |
| Finish Color | Black Lacquer |
| Flange Material | Aluminum |
| Flange Type | Square |
| Frame | 48Y |
| Frequency Rating | 60 Hz |
| Full Load Amps | 8.5/4.25 A |
| HP | 2 |
| Insulation Class | B |
| Item | Pool and Spa Pump Motor |
| Motor Shaft Rotation | CCWPE |
| Motor Thermal Protection | None |
| Mounting Type | C-Face |
| Overall Length | 12.63 Inch |
| Phase | 3-Phase |
| RPM | 3450 |
| Service Factor | 1.30 |
| Shaft Design | Threaded |
| Shaft Diameter | 5/8 Inch |
| Shaft Length | 5/8 Inch |
| Shaft Material | 303 Stainless Steel |
| Standards Approvals | UL Recognized (E46412), CSA Certified (LR43341) |
| Sub Brand | Century® |
| Thrust Horsepower | 2.6 |
| Type | Full-Rated, P |
| Voltage Rating | 208-230/460 V |
$199.50
Original: $569.99
-65%Century Q3202 Pool Pump Motor, 2 HP, 3 Ph, 60 Hz, 208-230/460 V, 3600 RPM, 48Y Frame, ODP—
$569.99
$199.50Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Century Q3202 Square Flange 3-Phase Full-Rated Pool and Spa Pump Motor; 2 HP, 3450 RPM, 208-230/460 V, 48Y, Threaded Shaft
- All Copper Windings
- Open Dripproof
- 303 Stainless Steel Shaft
- Threaded Shaft
- Sealed Ball Bearings
- 50°C Ambient
- 3 Phase
- Jet Pump
- Square Flange
- California Compliant
Used On:
- Sta-Rite Max-E Glas and Dura-Glas Full-Rated Pump Parts
- Sta-Rite Max-E Glas II and Dura-Glas II Full-Rated Pump Parts
Specifications:
| Ambient Temperature | 50 deg C |
| Bearing Type | Sealed Ball |
| Brand | Regal Beloit |
| Diameter | 5-5/8 Inch |
| Duty Cycle | Continuous |
| Efficiency Group | Standard |
| Enclosure Design | Open Dripproof |
| Finish Color | Black Lacquer |
| Flange Material | Aluminum |
| Flange Type | Square |
| Frame | 48Y |
| Frequency Rating | 60 Hz |
| Full Load Amps | 8.5/4.25 A |
| HP | 2 |
| Insulation Class | B |
| Item | Pool and Spa Pump Motor |
| Motor Shaft Rotation | CCWPE |
| Motor Thermal Protection | None |
| Mounting Type | C-Face |
| Overall Length | 12.63 Inch |
| Phase | 3-Phase |
| RPM | 3450 |
| Service Factor | 1.30 |
| Shaft Design | Threaded |
| Shaft Diameter | 5/8 Inch |
| Shaft Length | 5/8 Inch |
| Shaft Material | 303 Stainless Steel |
| Standards Approvals | UL Recognized (E46412), CSA Certified (LR43341) |
| Sub Brand | Century® |
| Thrust Horsepower | 2.6 |
| Type | Full-Rated, P |
| Voltage Rating | 208-230/460 V |
