Century Q3152 Pool Pump Motor, 1.5 HP, 3 Ph, 60 Hz, 208-230/460 V, 3600 RPM, 48Y Frame, ODP
1 / 5

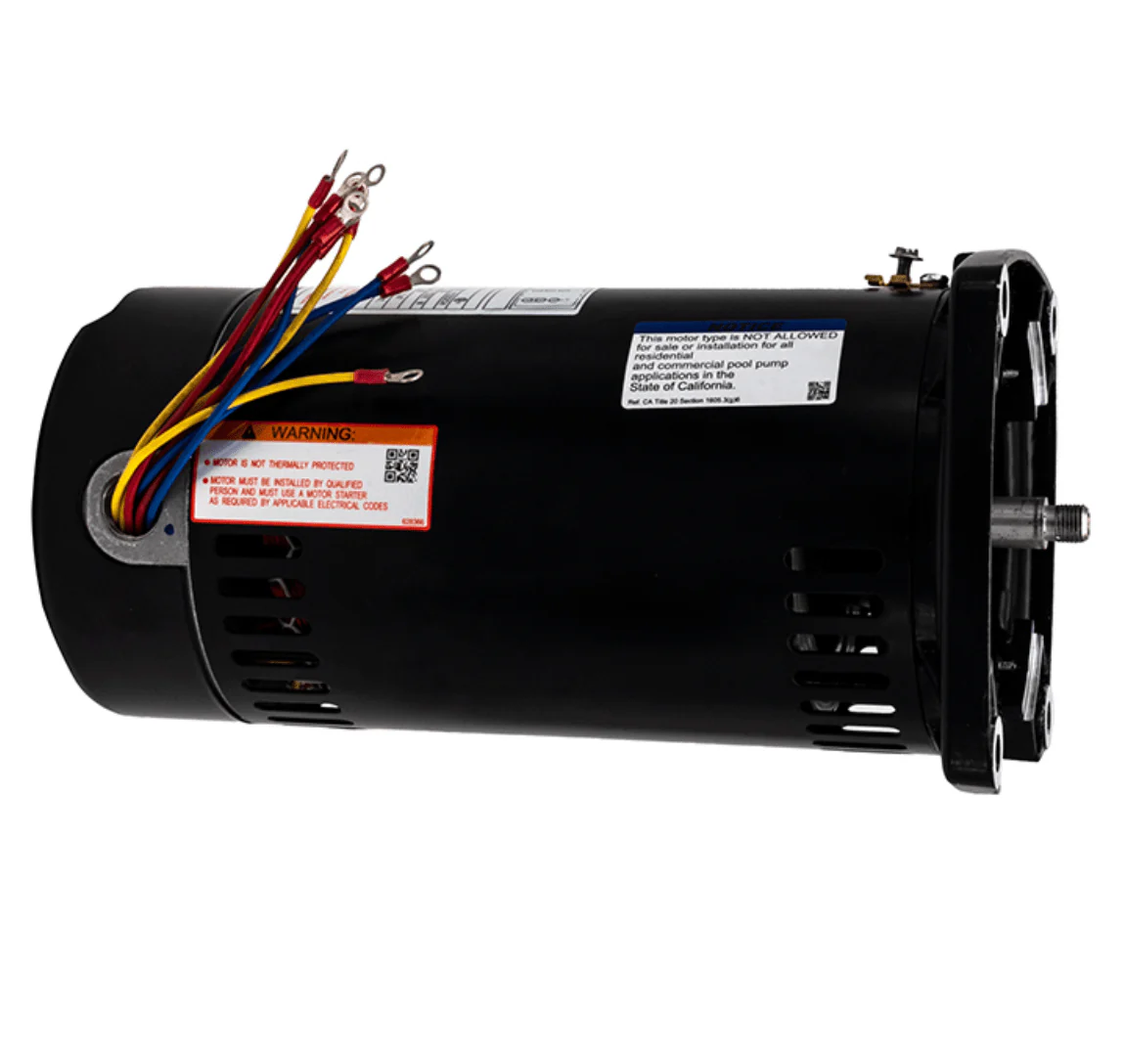

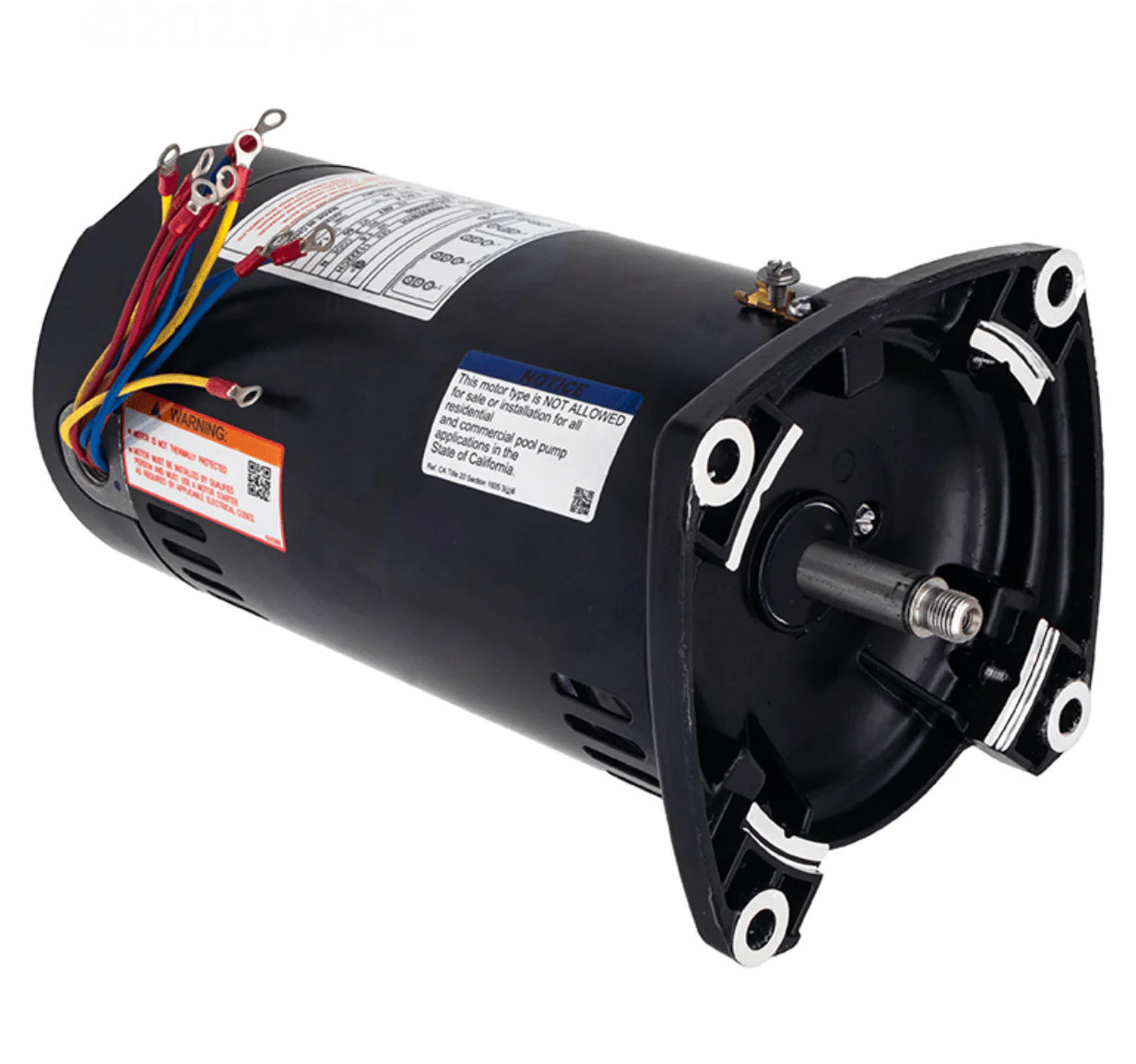

Century Q3152 Pool Pump Motor, 1.5 HP, 3 Ph, 60 Hz, 208-230/460 V, 3600 RPM, 48Y Frame, ODP
Century Q3152 Square Flange 3-Phase Full-Rated Pool and Spa Pump Motor; 1.5 HP, 3450 RPM, 208-230/460 V, 48Y, Threaded Shaft
Used On: Sta-Rite Max-E Glas II and Dura-Glas II Full-Rated Pump Parts
- All Copper Windings
- Open Dripproof
- 303 Stainless Steel Shaft
- Threaded Shaft
- Sealed Ball Bearings
- 50°C Ambient
- 3 Phase
- Jet Pump

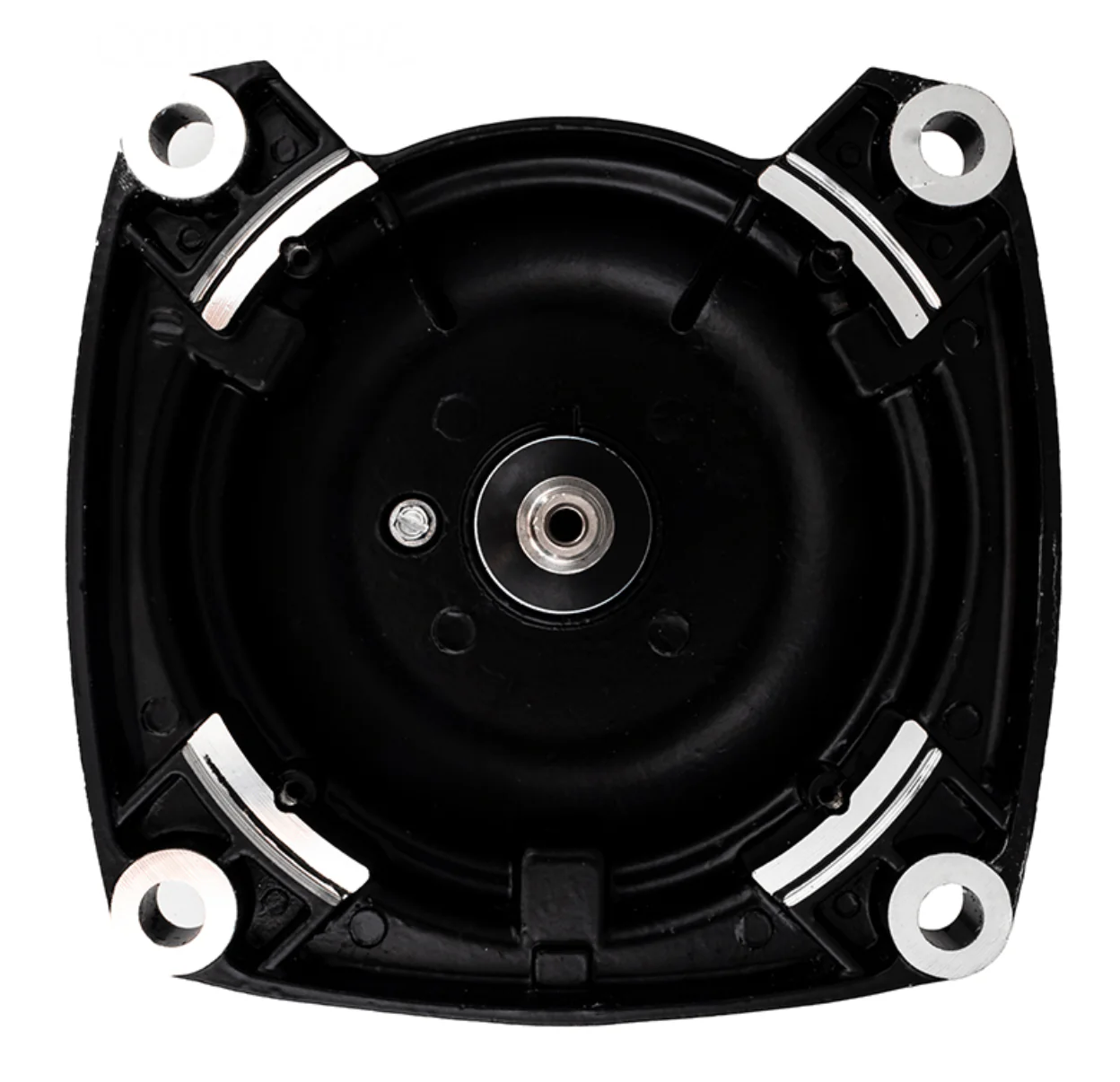

- Square Flange
- California Compliant
Specifications:
| Ambient Temperature | 50 deg C |
| Bearing Type | Sealed Ball |
| Brand | Regal Beloit |
| Diameter | 5-5/8 Inch |
| Duty Cycle | Continuous |
| Efficiency Group | Standard |
| Enclosure Design | Open Dripproof |
| Finish Color | Black Lacquer |
| Flange Material | Aluminum |
| Flange Type | Square |
| Frame | 48Y |
| Frequency Rating | 60 Hz |
| Full Load Amps | 6.8/3.4 A |
| HP | 1.5 |
| Insulation Class | B |
| Item | Pool and Spa Pump Motor |
| Motor Shaft Rotation | CCWPE |
| Motor Thermal Protection | None |
| Mounting Type | C-Face |
| Overall Length | 11.88 Inch |
| Phase | 3-Phase |
| RPM | 3450 |
| ServiceFactor | 1.47 |
| ShaftDesign | Threaded |
| ShaftDiameter | 5/8 Inch |
| ShaftLength | 5/8 Inch |
| ShaftMaterial | 303 Stainless Steel |
| StandardsApprovals | UL Recognized (E46412), CSA Certified (LR43341) |
| SubBrand | Century® |
| Thrust Horsepower | 2.21 |
| Type | Full-Rated, P |
| VoltageRating | 208-230/460 V |
$164.50
Original: $469.99
-65%Century Q3152 Pool Pump Motor, 1.5 HP, 3 Ph, 60 Hz, 208-230/460 V, 3600 RPM, 48Y Frame, ODP—
$469.99
$164.50Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Century Q3152 Square Flange 3-Phase Full-Rated Pool and Spa Pump Motor; 1.5 HP, 3450 RPM, 208-230/460 V, 48Y, Threaded Shaft
Used On: Sta-Rite Max-E Glas II and Dura-Glas II Full-Rated Pump Parts
- All Copper Windings
- Open Dripproof
- 303 Stainless Steel Shaft
- Threaded Shaft
- Sealed Ball Bearings
- 50°C Ambient
- 3 Phase
- Jet Pump
- Square Flange
- California Compliant
Specifications:
| Ambient Temperature | 50 deg C |
| Bearing Type | Sealed Ball |
| Brand | Regal Beloit |
| Diameter | 5-5/8 Inch |
| Duty Cycle | Continuous |
| Efficiency Group | Standard |
| Enclosure Design | Open Dripproof |
| Finish Color | Black Lacquer |
| Flange Material | Aluminum |
| Flange Type | Square |
| Frame | 48Y |
| Frequency Rating | 60 Hz |
| Full Load Amps | 6.8/3.4 A |
| HP | 1.5 |
| Insulation Class | B |
| Item | Pool and Spa Pump Motor |
| Motor Shaft Rotation | CCWPE |
| Motor Thermal Protection | None |
| Mounting Type | C-Face |
| Overall Length | 11.88 Inch |
| Phase | 3-Phase |
| RPM | 3450 |
| ServiceFactor | 1.47 |
| ShaftDesign | Threaded |
| ShaftDiameter | 5/8 Inch |
| ShaftLength | 5/8 Inch |
| ShaftMaterial | 303 Stainless Steel |
| StandardsApprovals | UL Recognized (E46412), CSA Certified (LR43341) |
| SubBrand | Century® |
| Thrust Horsepower | 2.21 |
| Type | Full-Rated, P |
| VoltageRating | 208-230/460 V |
