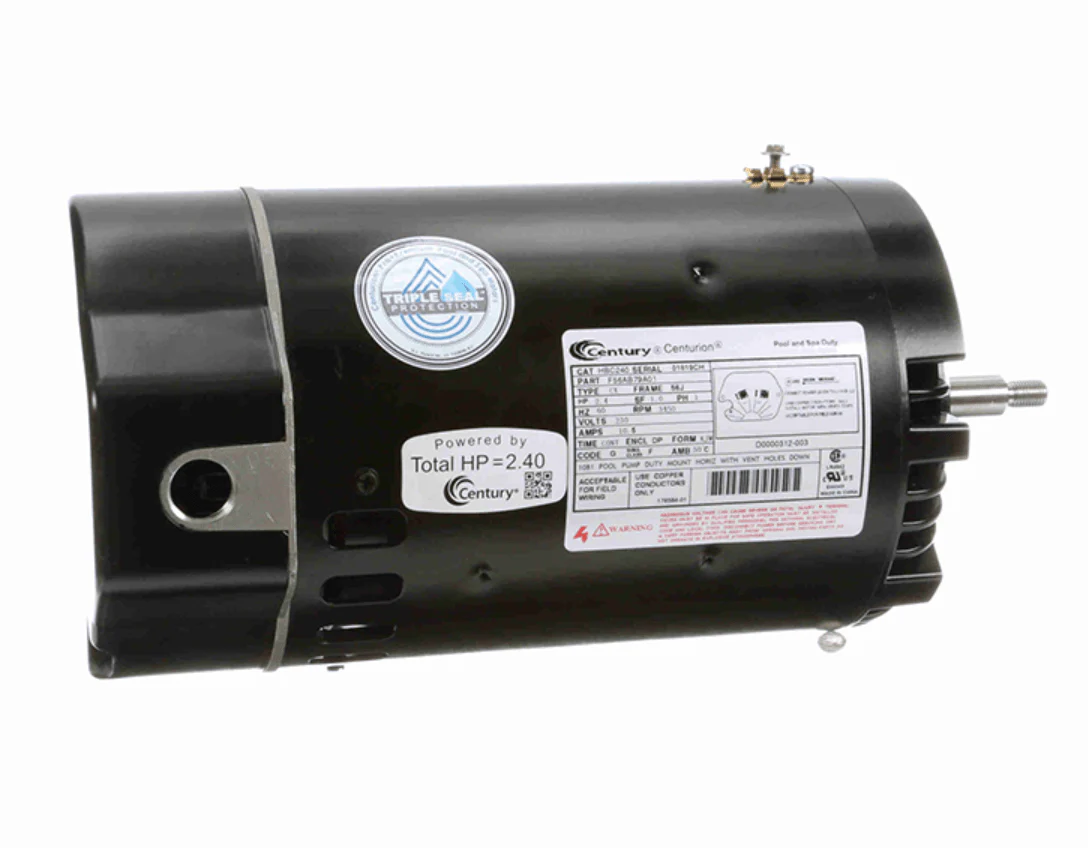

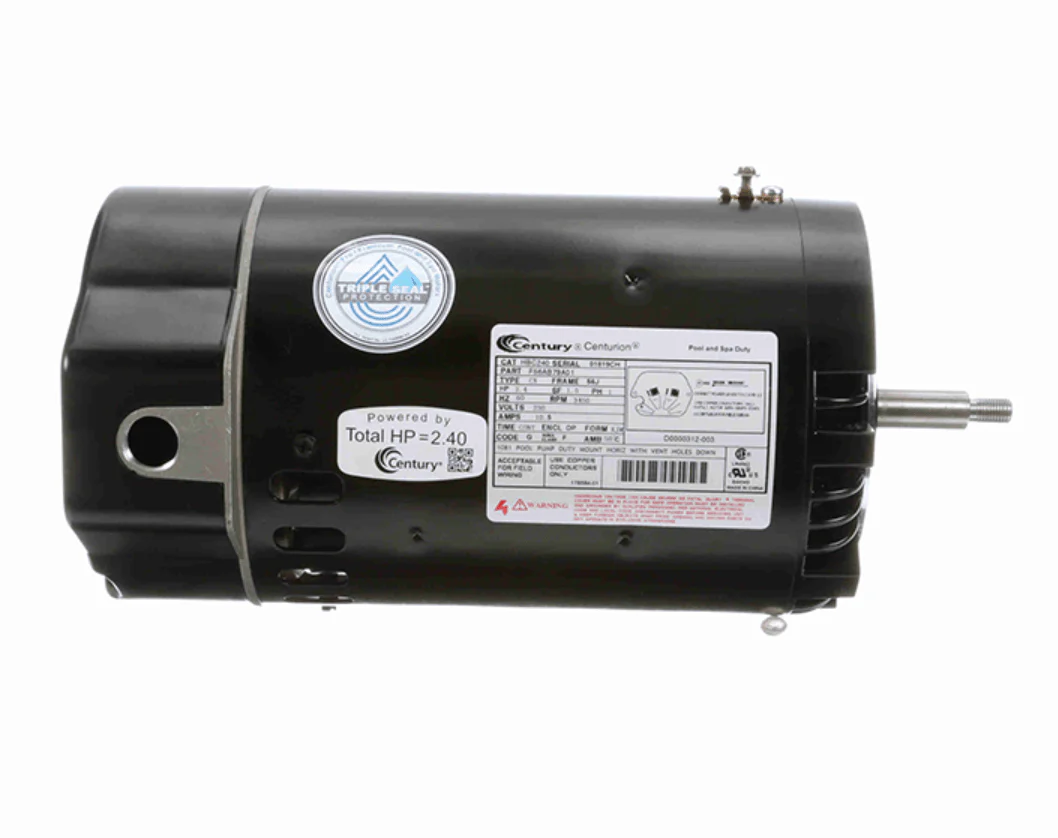

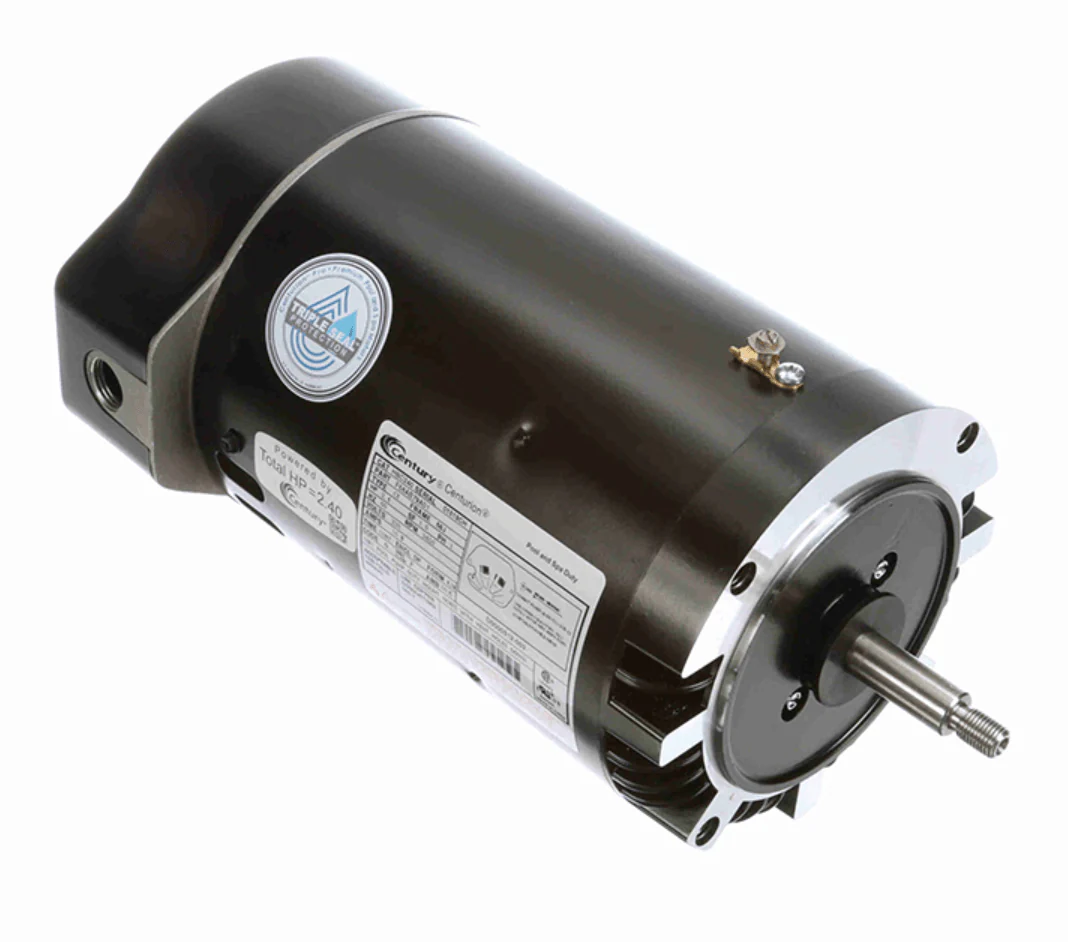

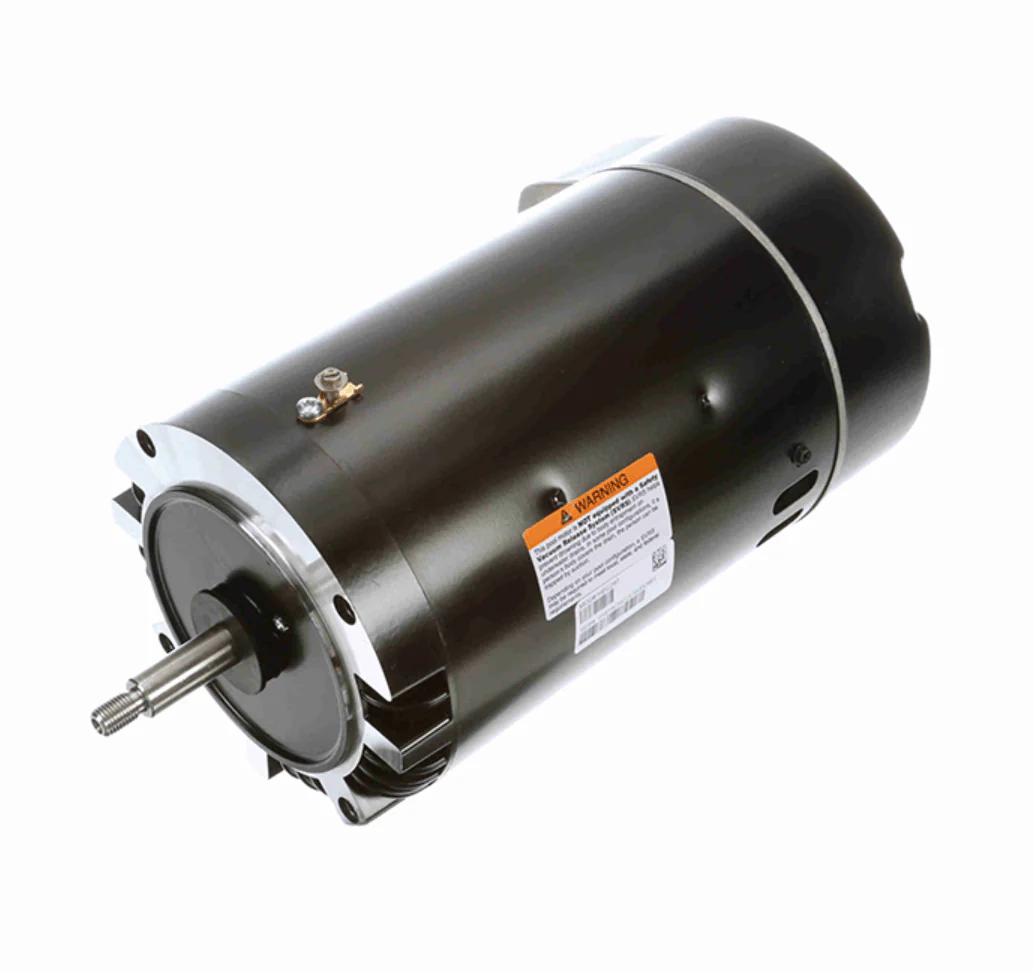

Century HBC240 Pool Pump Motor, 2.4 HP, 1 Ph, 60 Hz, 230 V, 3600 RPM, 56J Frame, DP

• Long-lasting with Triple Seal™ protection to prevent water and debris intrusion
• Fast and easy installation with the open and accessible terminal board and wiring compartment
• Premium sealed 203 bearings on both ends
• Definitive shaft access (7/16" wrench)
• Voltage change device
• Open dripproof
• Designed for optimal performance and efficiency
• Most durable and economical solution in the market today

Specifications:

• Phase: 1
• Output HP: 2.4 HP
• Output KW: 1.8 kW
• Voltage: 230 V
• Speed: 3450 rpm
• Service Factor: 1.0
• Frame: 56J
• Enclosure: Drip Proof
• Thermal Protection: Thermally Protected
• Ambient Temperature: 50 °C
• Frequency: 60 Hz
• Current: SF 10.5 A
• Duty: Continuous
• Insulation Class: F
• UL: Recognized
• CSA: Y
• Number of Speeds: 1
