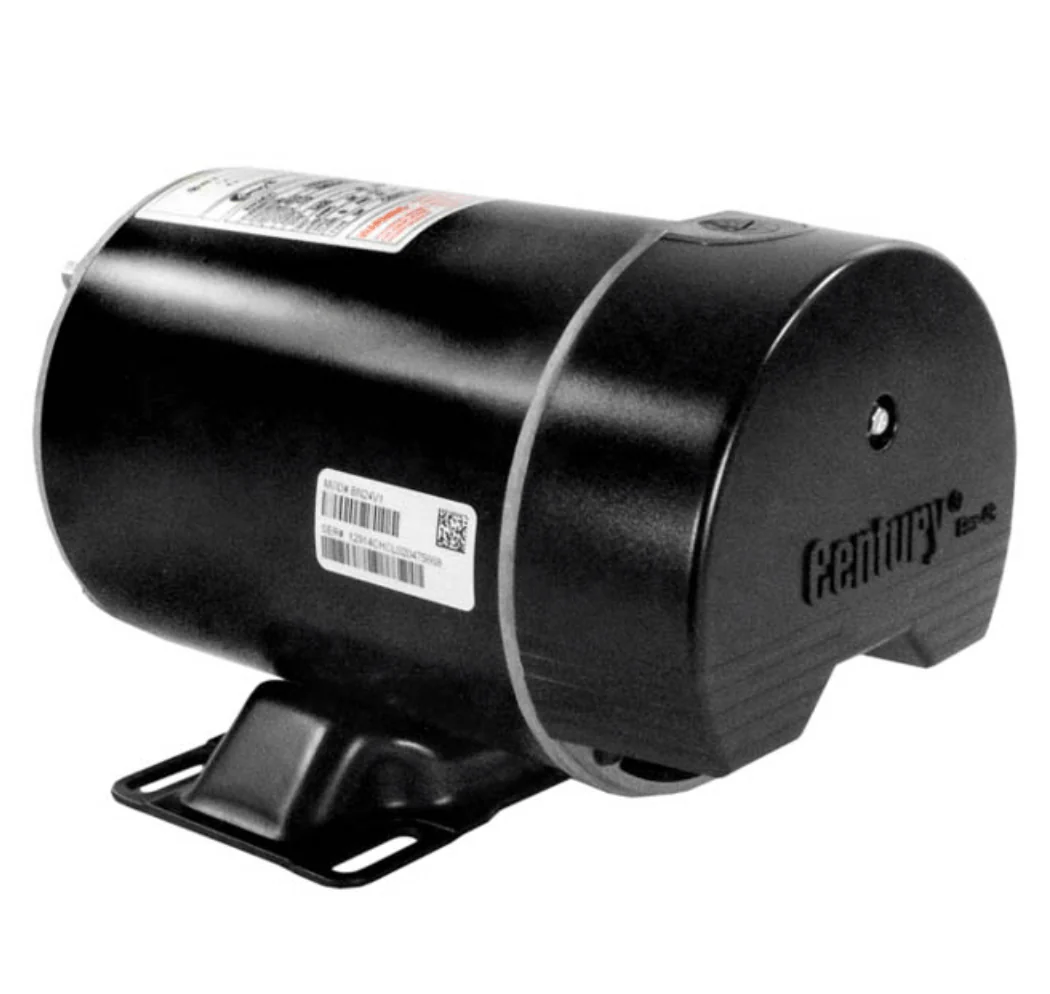

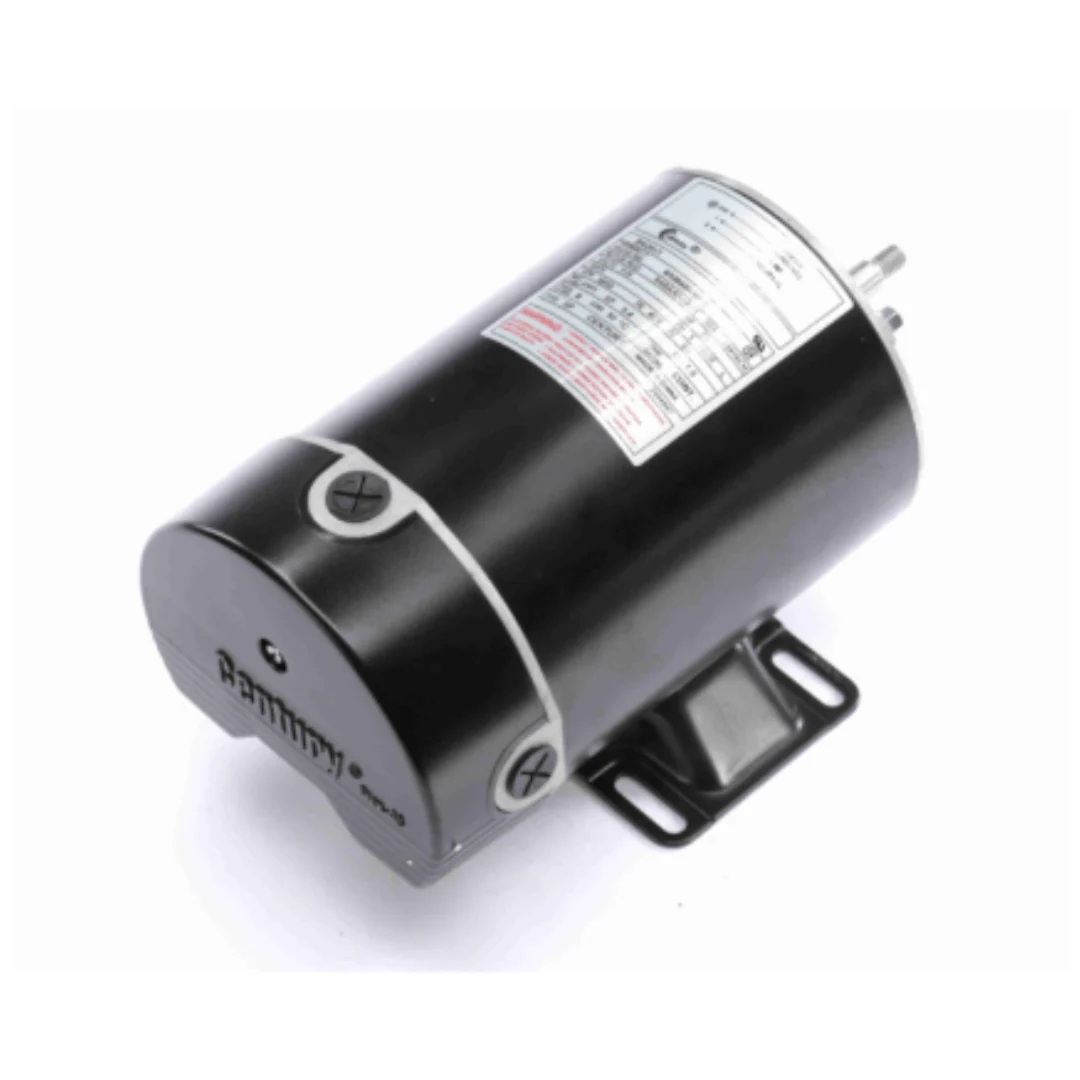

Century BN24V1 Pool Pump Motor, .75 HP, 1 Ph, 60 Hz, 115 V, 3600 RPM, 48Y Frame, ODP
- 12 & 3 O'clock Conduit Entries
- 3-1/2" Shaft Height
- 50°C Ambient
- Stainless Steel Shaft
- Four Thru Bolts on a 5.146 Bolt Circle
- 48/56 Base Mounting
- Sealed Ball Bearings
- UL 1081 Design
- Rigid Base
- Threaded Shaft
Specifications:
- Phase: 1
- Output HP:. 75 Hp
- Output KW: 0.56 kW
- Voltage: 115 V
- Speed: 3450 rpm
- Service Factor: 1
- Frame: 48Y
- Enclosure: Open Drip Proof
- Thermal Protection: Thermally Protected
- Ambient Temperature: 50 °C
- Frequency: 60 Hz
- Current: 9.4 A
- Duty: Continuous
- Insulation Class: B
- UL: Recognized
- CSA: Y
- Number of Speeds: 1
$66.50
Original: $189.99
-65%Century BN24V1 Pool Pump Motor, .75 HP, 1 Ph, 60 Hz, 115 V, 3600 RPM, 48Y Frame, ODP—
$189.99
$66.50Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- 12 & 3 O'clock Conduit Entries
- 3-1/2" Shaft Height
- 50°C Ambient
- Stainless Steel Shaft
- Four Thru Bolts on a 5.146 Bolt Circle
- 48/56 Base Mounting
- Sealed Ball Bearings
- UL 1081 Design
- Rigid Base
- Threaded Shaft
Specifications:
- Phase: 1
- Output HP:. 75 Hp
- Output KW: 0.56 kW
- Voltage: 115 V
- Speed: 3450 rpm
- Service Factor: 1
- Frame: 48Y
- Enclosure: Open Drip Proof
- Thermal Protection: Thermally Protected
- Ambient Temperature: 50 °C
- Frequency: 60 Hz
- Current: 9.4 A
- Duty: Continuous
- Insulation Class: B
- UL: Recognized
- CSA: Y
- Number of Speeds: 1
