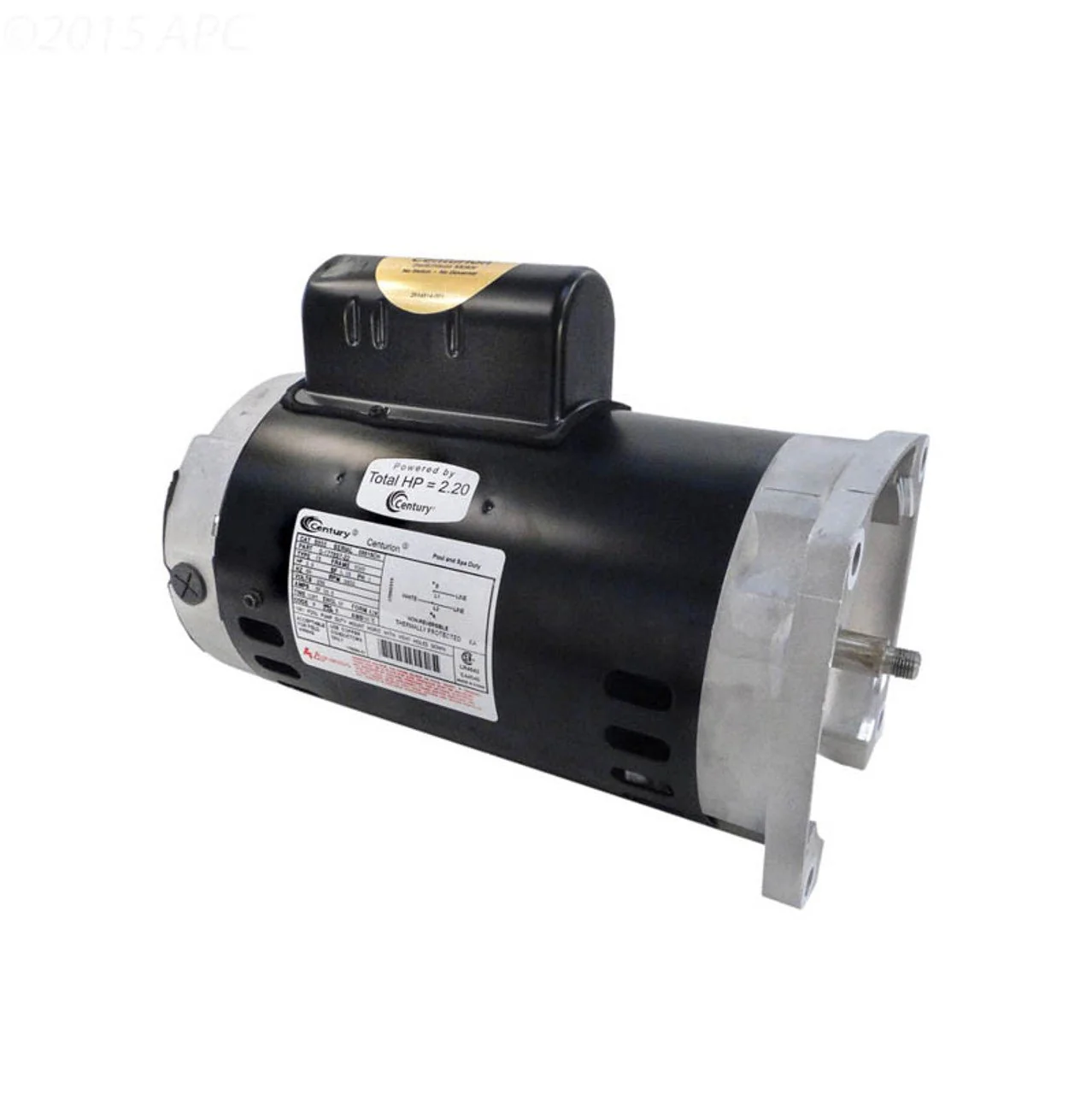

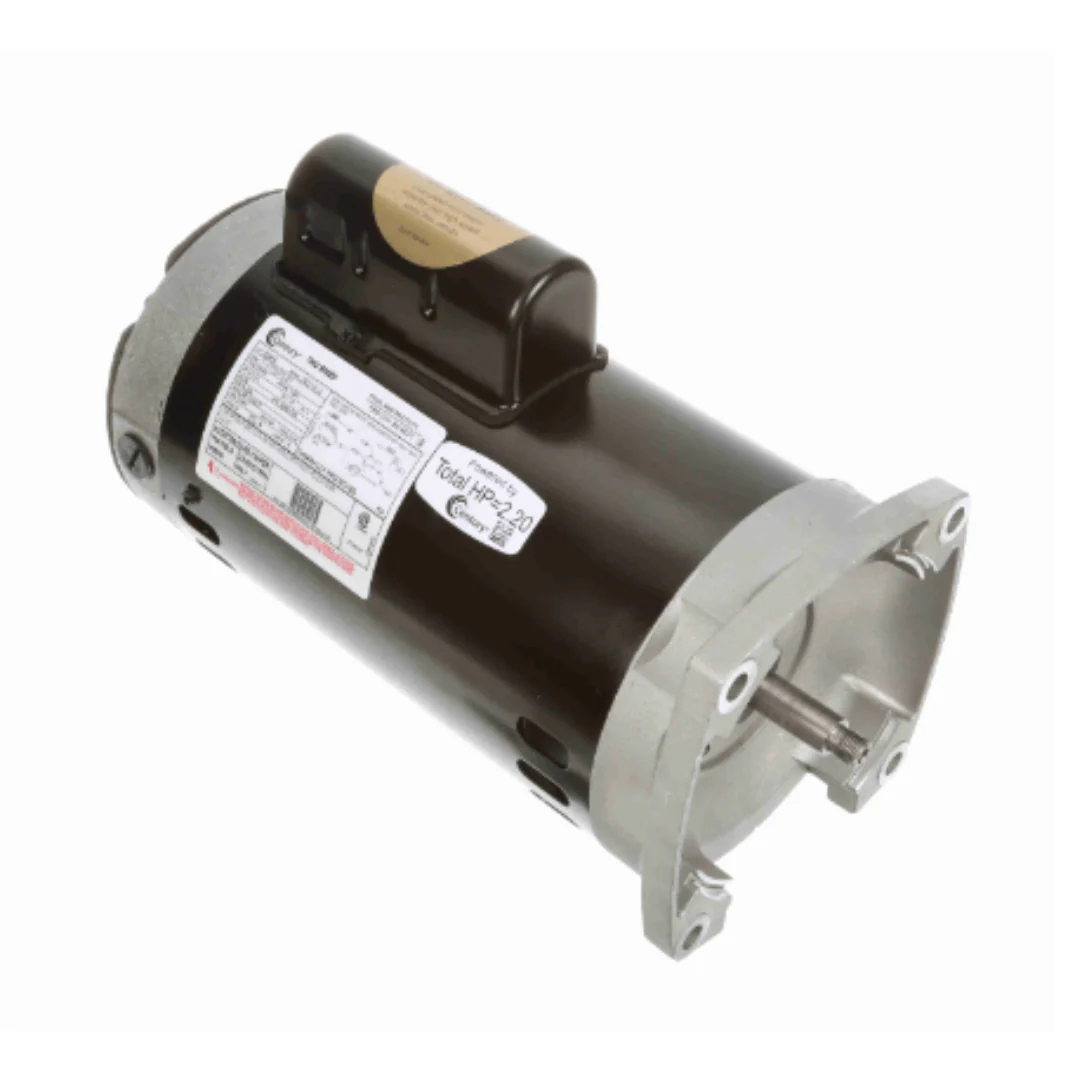

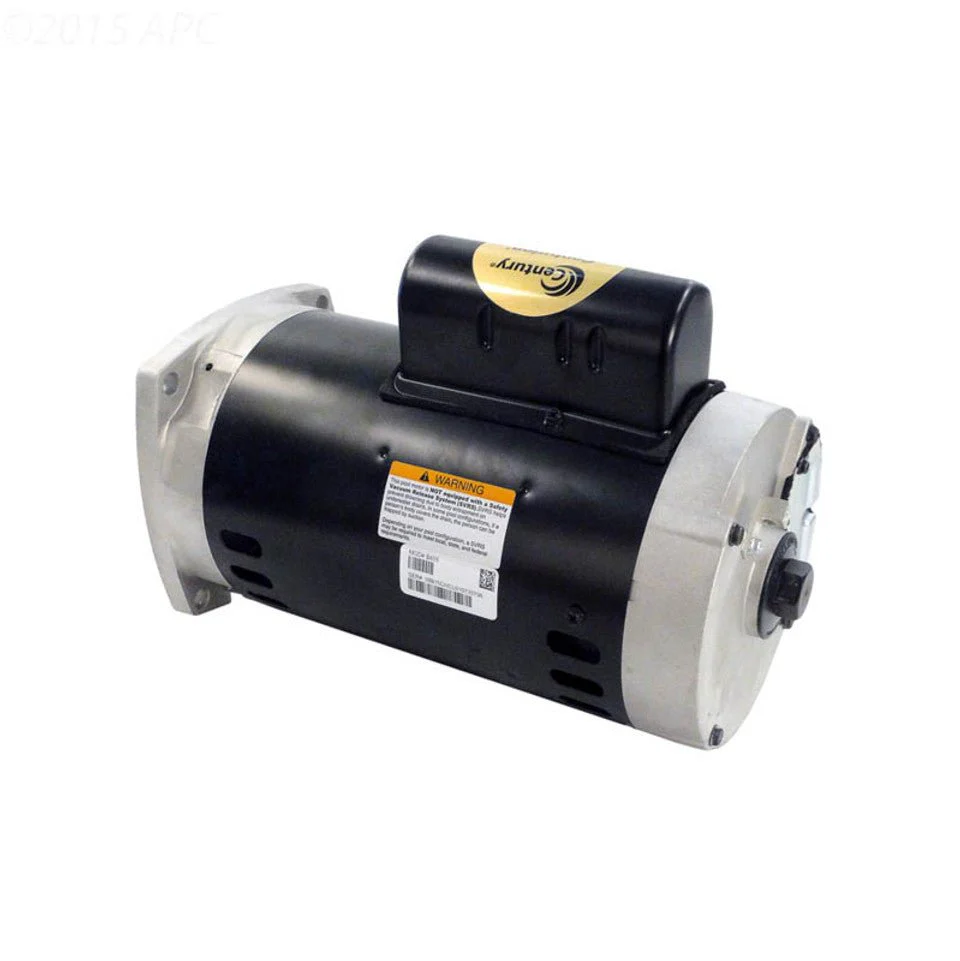

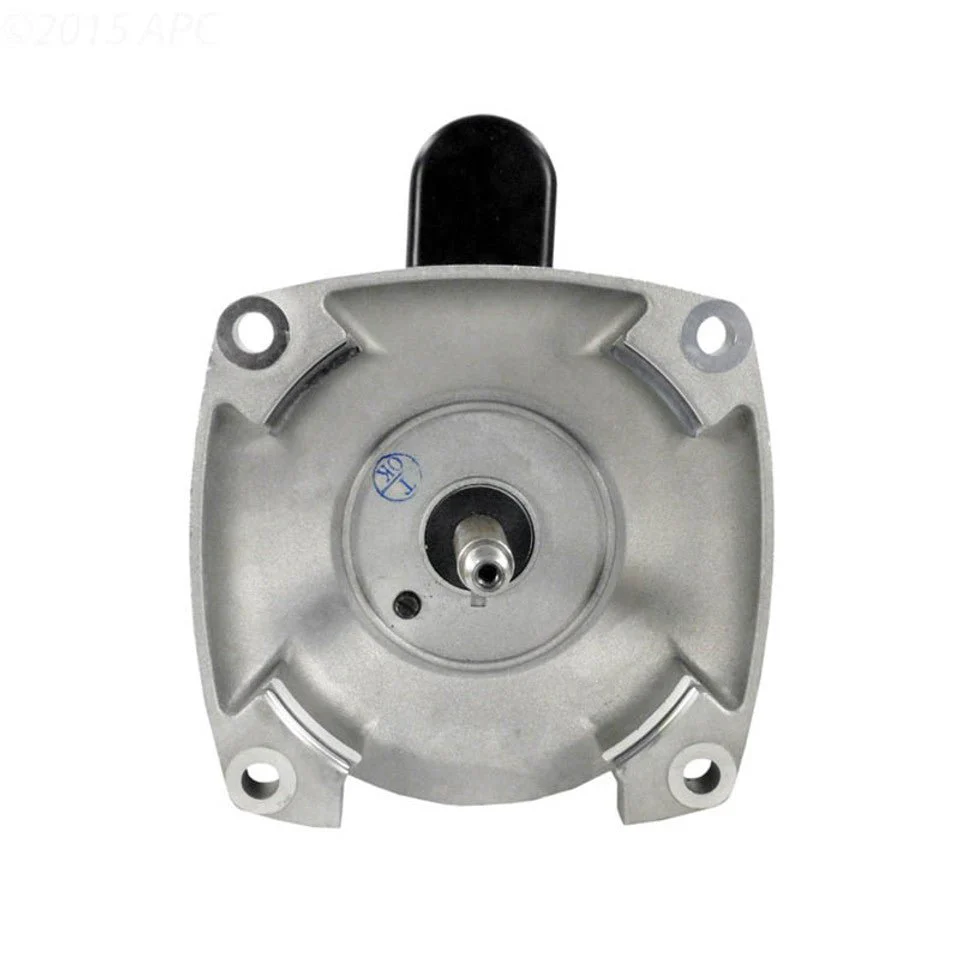

Century B985 Pool Pump Motor, 2.0-.33 HP, 1 Ph, 60 Hz, 230 V, 3600 RPM, Y56Y Frame, DP

• Two Speed
• Sealed Ball Bearings
• 50°C Ambient
• Energy Efficient High and Low Speed
• Open Dripproof
• Permanent Split Capacitor on High Speed
• Cap Star/Cap Run Low Speed
• 303 Stainless Steel Shaft
• Threaded Shaft
• Meets California Energy Commission Appliance Regulations 2008

Used On:

• Sta-Rite Dyna-Jet Pump Parts
• Sta-Rite Dyna-Pro and Dyna-Pro E Pump Parts
• Sta-Rite Max-E Glas and Dura-Glas Up-Rated Pump Parts
• Sta-Rite Max-E Glas II and Dura-Glas II Up-Rated Pump Parts
• Sta-Rite Max-E Pro Series Pump Parts

Specifications:

• Phase: 1
• Output HP: 2.0-.33 Hp
• Output KW: 1.5 kW
• Voltage: 230 V
• Speed: 3450/1725 rpm
• Service Factor: 1.1
• Frame: Y56Y
• Enclosure: Drip Proof
• Thermal Protection: Thermally Protected
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: SF 10.0/3.5 A
• Duty: Continuous
• Insulation Class: B
• UL: Recognized
• CSA: Y
• Number of Speeds:2-2-VT
