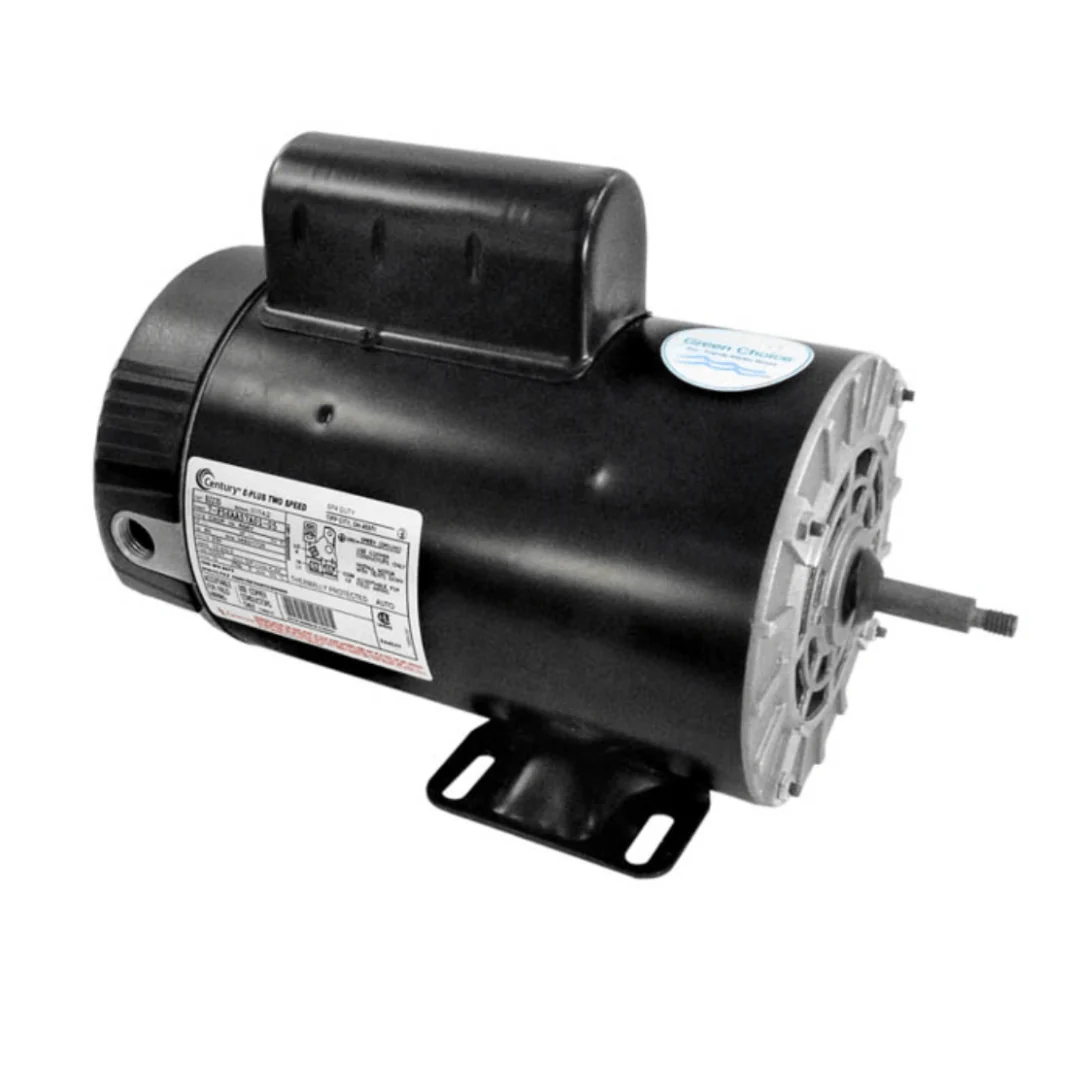

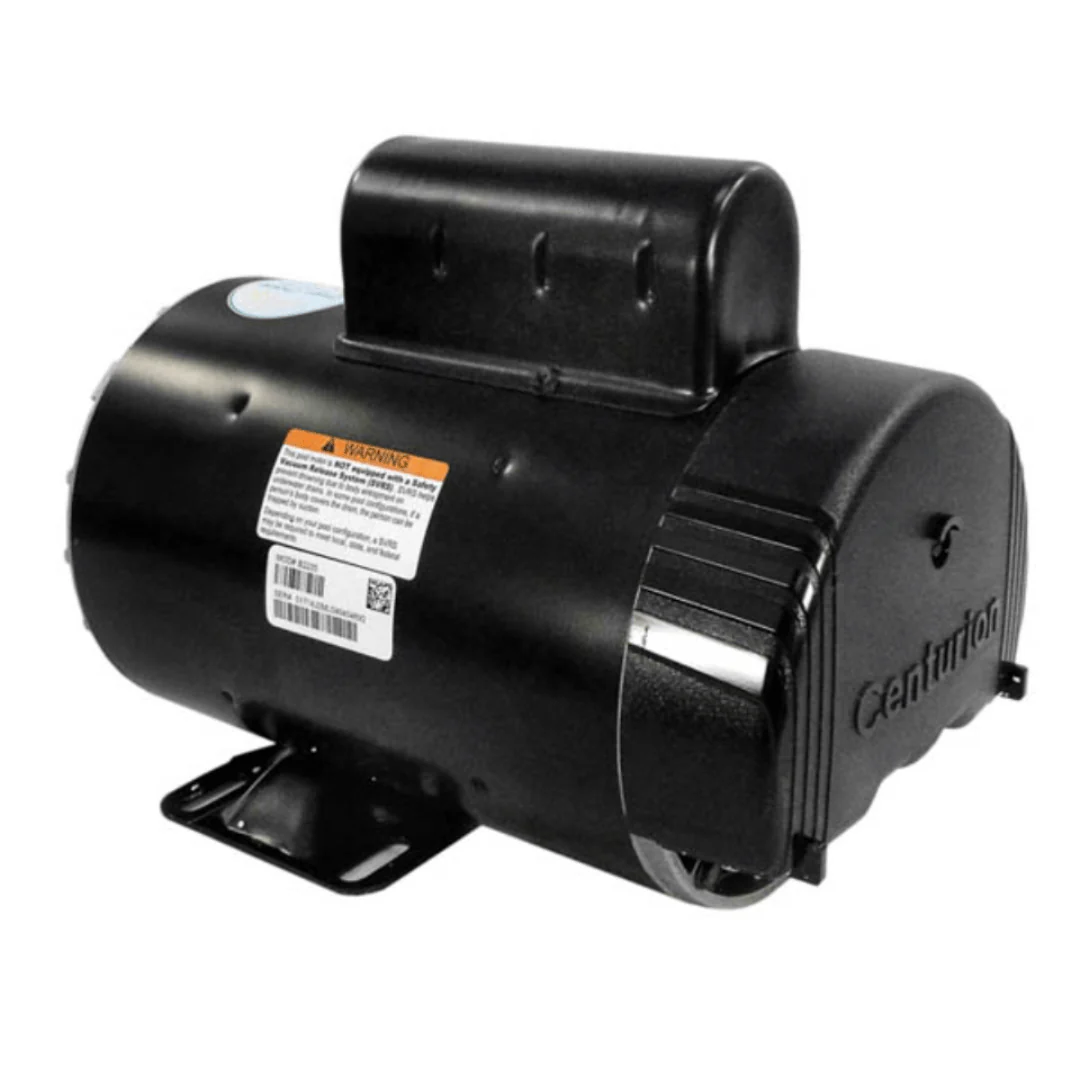

Century B2235 Pool Pump Motor, 4 / 0.50 SPL HP, 1 Ph, 60 Hz, 230 V, 3600 RPM, R56Y Frame, DP
1 / 3
Century B2235 Pool Pump Motor, 4 / 0.50 SPL HP, 1 Ph, 60 Hz, 230 V, 3600 RPM, R56Y Frame, DP
Century B2235 Thru-Bolt 2-Speed Full-Rated Replacement Spa Motor; 4 HP, 3450/1725 RPM, 230V, 56Y, Threaded Shaft
- E-Plus® New Centurion design
- 3/8-16 UNC-2A RH threaded shaft
- California Compliant
Used On:
- Gecko Flo-Master XP2/XP2E 56-Frame
- Gecko Flo-Master XP3 56-Frame Pump
Specifications:
| Ambient Temperature | 50 deg C |
| Bearing Type | Ball |
| Brand | Regal Beloit |
| Diameter | 6-1/2 Inch |
| Duty Cycle | Continuous |
| Efficiency Group | High |
| Enclosure Design | Open Dripproof |
| Finish Color | Black |
| Flange Material | Aluminum |
| Frame | 56Y |
| Frequency Rating | 60 Hz |
| Full Load Amps | 12.0/3.0 A |
| HP | 4/0.5 SPL |
| Insulation Class | F |
| Item | Replacement Spa Motor |
| Moto rDesign | Capacitor Start/Run on Low Speed, PSC on High Speed |
| Motor Shaft Rotation | CCWPE |
| Motor Thermal Protection | Auto |
| Mounting Type | Thru-Bolt, Rigid Base |
| Number of Speed | 2-Speed |
| Overall Length | 13.49 Inch |
| Phase | 1-Phase |
| RPM | 3450/1725 |
| Shaft Design | Threaded |
| Shaft Diameter | 1/2 Inch |
| Shaft Height | 3-1/2 Inch |
| Shaft Length | 2-3/8 Inch |
| Shaft Material | 303 Stainless Steel |
| Standards Approvals | UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341), Meets California Energy Commission Appliance Regulations 2008 |
| Sub Brand | Century® |
| Type | Full-Rated, CXCP |
| Voltage Rating | 230 V |
$168.00
Original: $479.99
-65%Century B2235 Pool Pump Motor, 4 / 0.50 SPL HP, 1 Ph, 60 Hz, 230 V, 3600 RPM, R56Y Frame, DP—
$479.99
$168.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Century B2235 Thru-Bolt 2-Speed Full-Rated Replacement Spa Motor; 4 HP, 3450/1725 RPM, 230V, 56Y, Threaded Shaft
- E-Plus® New Centurion design
- 3/8-16 UNC-2A RH threaded shaft
- California Compliant
Used On:
- Gecko Flo-Master XP2/XP2E 56-Frame
- Gecko Flo-Master XP3 56-Frame Pump
Specifications:
| Ambient Temperature | 50 deg C |
| Bearing Type | Ball |
| Brand | Regal Beloit |
| Diameter | 6-1/2 Inch |
| Duty Cycle | Continuous |
| Efficiency Group | High |
| Enclosure Design | Open Dripproof |
| Finish Color | Black |
| Flange Material | Aluminum |
| Frame | 56Y |
| Frequency Rating | 60 Hz |
| Full Load Amps | 12.0/3.0 A |
| HP | 4/0.5 SPL |
| Insulation Class | F |
| Item | Replacement Spa Motor |
| Moto rDesign | Capacitor Start/Run on Low Speed, PSC on High Speed |
| Motor Shaft Rotation | CCWPE |
| Motor Thermal Protection | Auto |
| Mounting Type | Thru-Bolt, Rigid Base |
| Number of Speed | 2-Speed |
| Overall Length | 13.49 Inch |
| Phase | 1-Phase |
| RPM | 3450/1725 |
| Shaft Design | Threaded |
| Shaft Diameter | 1/2 Inch |
| Shaft Height | 3-1/2 Inch |
| Shaft Length | 2-3/8 Inch |
| Shaft Material | 303 Stainless Steel |
| Standards Approvals | UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341), Meets California Energy Commission Appliance Regulations 2008 |
| Sub Brand | Century® |
| Type | Full-Rated, CXCP |
| Voltage Rating | 230 V |
